Automatic Food Metal Detector Production Lines Metal Detector Conveyor Solution
Designed for modern food processing and packaging lines, this automatic food metal detector offers unparalleled sensitivity and speed, detecting and removing ferrous, non-ferrous, and stainless steel contaminants with exceptional accuracy. This production lines metal detector conveyor keeps production lines running efficiently and meeting stringent food safety standards, ensuring every product leaving your facility is free of harmful impurities. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

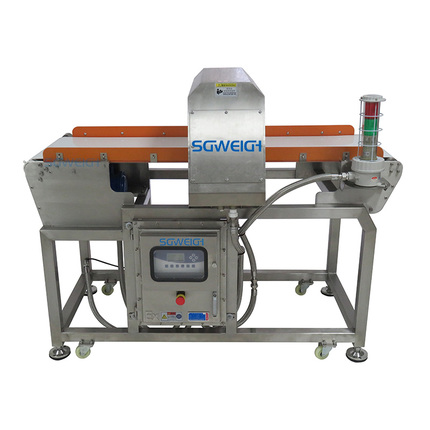

Automatic food metal detector photos
1) Made of 304 stainless steel, durable and aesthetically pleasing.
2) Digital, with memory function, automatic food metal detector can record multiple products (up to 12 or more).
3) Utilizes dual-signal detection circuit technology, LCD display, and Chinese and English menus for easy operation.
4) Utilizes professional German detection technology and employs the balancing principle for enhanced reliability and performance. Dual-channel and frequency detection for iron, non-ferrous metals, and stainless steel.
5) DSP and MCU combine to sample and process detection signals, enhancing detection effectiveness.
6) New circuit design offers high sensitivity, and sophisticated phase adjustment technology automatically adjusts to minimize product effects.
7) Detects iron, stainless steel, copper, aluminum, and other non-ferrous metals.
8) Features automatic recognition and learning, effectively overcoming product material effects, and offers strong anti-interference and shock resistance.
9) Supports 24/7 operation.
Model: Standard
Detection Channel Width (mm): 300-400 (customizable)
Detection Channel Height (mm): 100 (customizable)
Detection Sensitivity: Iron Ball Diameter (φmm): 0.6-0.8; 304 Stainless Steel Diameter (φmm): 1.2; Non-metallic Materials (φmm): 1.2
Alarm: Buzzer, LED, and sound/light alarm, and automatic shutdown
Material: 304 Stainless Steel
Dimensions: 1520*860*930mm
Weight: Approximately 200kg
Power Supply: AC 220V 50-60Hz
Power Consumption: Approximately 140W
Load Capacity: 5-25kg
Conveyor Speed: 24m/min (50Hz)
Automatic Food Metal Detector Production Lines Metal Detector Conveyor Solution
The automatic food metal detector shown may not meet your requirements. This configuration can also be customized to meet your specific requirements.
Customization options include:
1. Customizable tabletop.
2. Customizable height.
3. Customizable material.
4. Wireless connectivity between the meter and roller.
5. Built-in USB storage.
6. Bluetooth transmission of weight data.
7. Optional automatic quantitative control output.
8. External printer capability.
9. Built-in upper and lower limit alarms.
10. External scanner capability.
Production lines metal detector conveyor is suitable for detecting metal impurities introduced during the production process in the food, pharmaceutical, toy, clothing, footwear, chemical, leather, fabric, and paper industries. These include ferrous and non-ferromagnetic metals (including iron, copper, aluminum, and stainless steel).
Automatic Food Metal Detector Production Lines Metal Detector Conveyor Solution
Usually, the packaging is a wooden crate (dimensions: length * width * height). For exports to European countries, the crate will be fumigated. If the container is too tight, we will use polyethylene film or package according to the customer's specific requirements.
1. We offer a 12-month warranty on the entire device from the date of shipment.
2. During the warranty period, if any product quality issues arise, we will replace parts and courier fees free of charge. However, we will cover the on-site service costs, daily accommodations, and compensation fees for our personnel at our own expense.
3. For any issues that occur during the warranty period, or those caused by improper operation or unauthorized repairs, we will charge a reasonable fee in accordance with our service policy.
4. We will update the product's performance with photos and videos before shipment to ensure everything is correct.
5. All complaints or feedback will be promptly responded to within 24 hours.
