Compact Checkweigher And Metal Detector Combo for Dual Quality Control
The compact checkweigher and metal detector combo brings together two essential quality control functions in one powerful solution.With advanced technology, checkweigher and metal detector combo for quality control ensures every product meets strict weight tolerances while instantly removing contaminated or non-compliant items from the line. Its intuitive touch-screen interface allows operators to set parameters quickly, while durable stainless-steel construction ensures long-term reliability. You are welcome to contact us at any time for quotation.

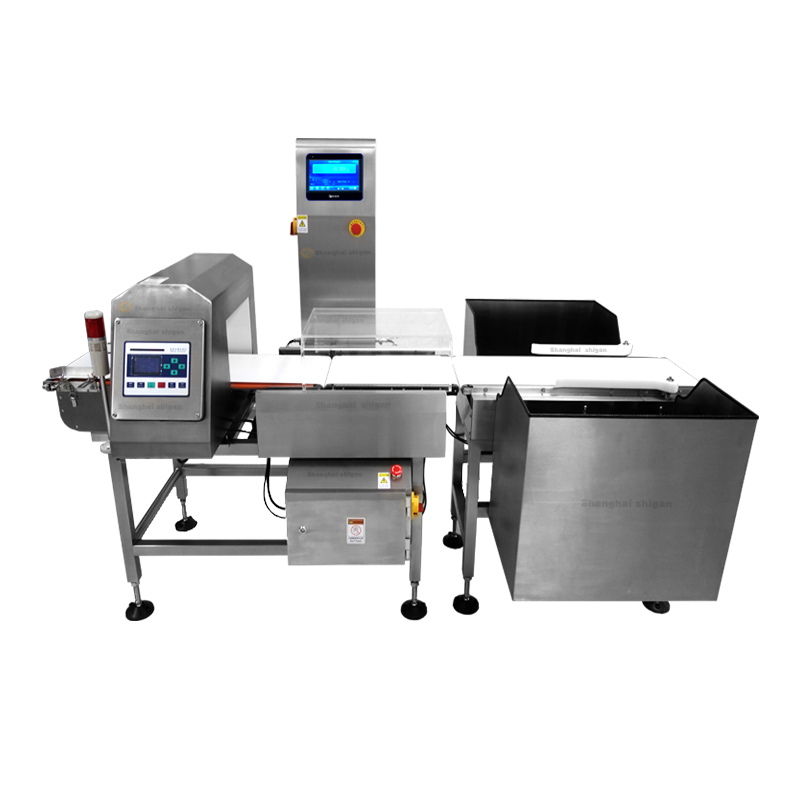

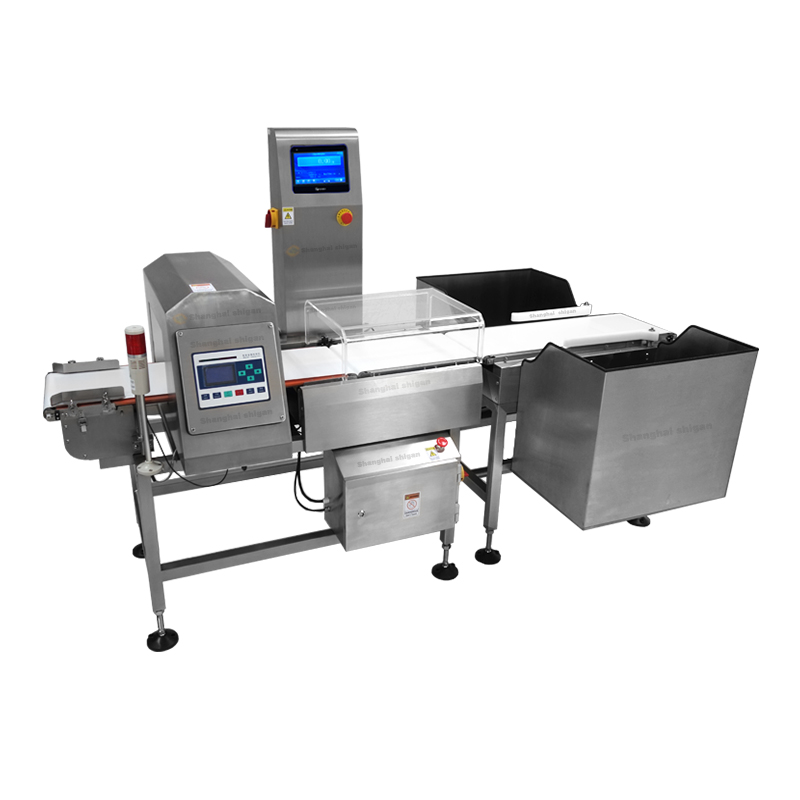

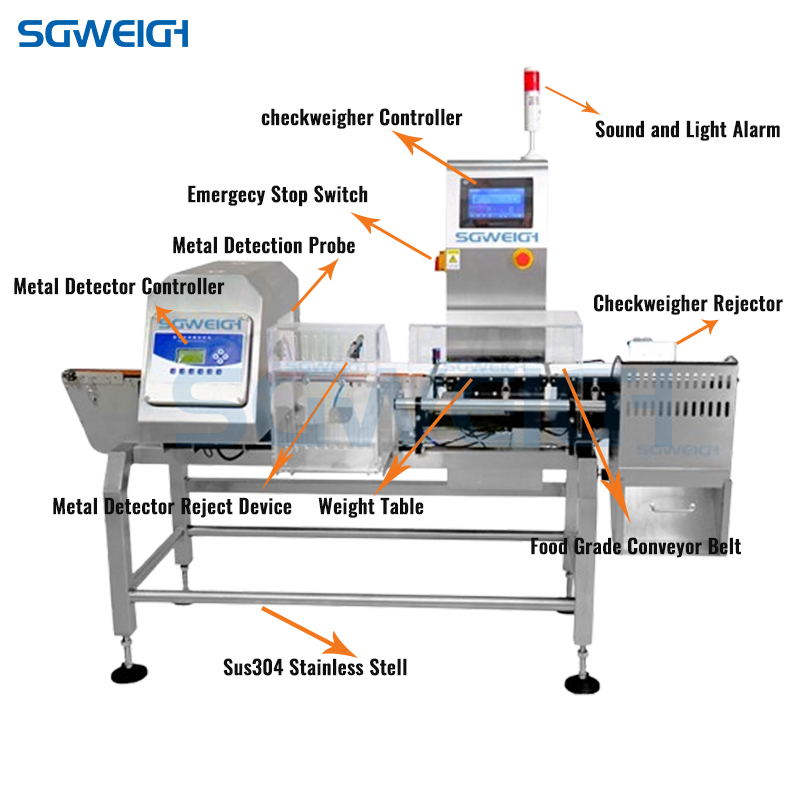

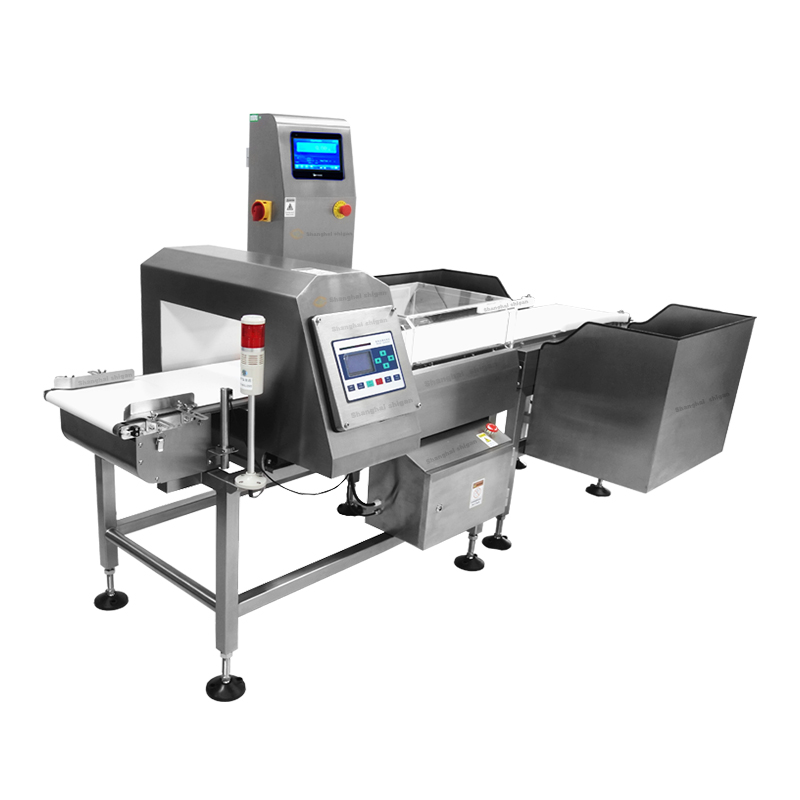

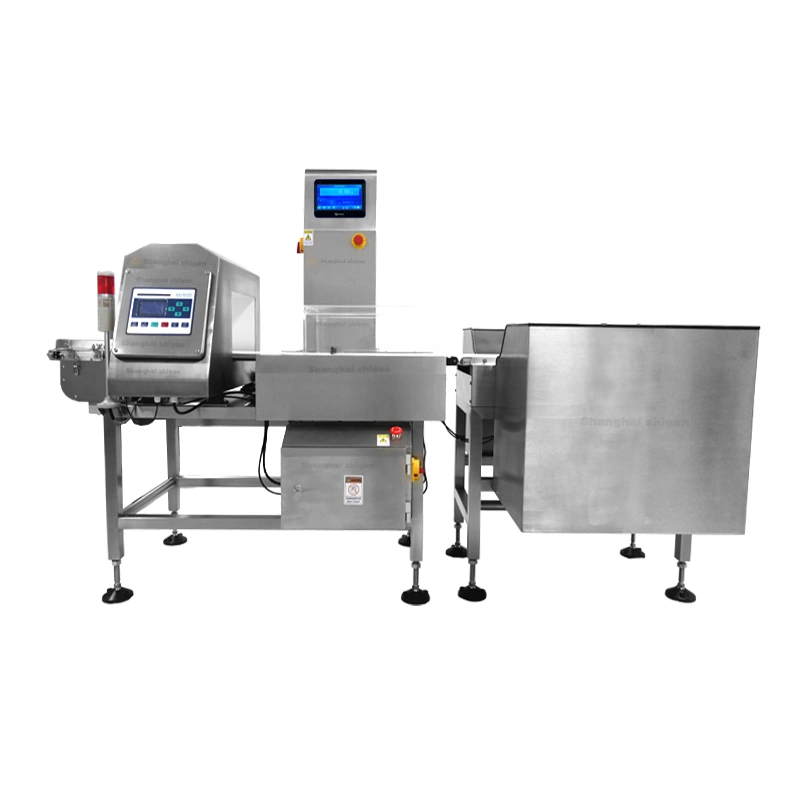

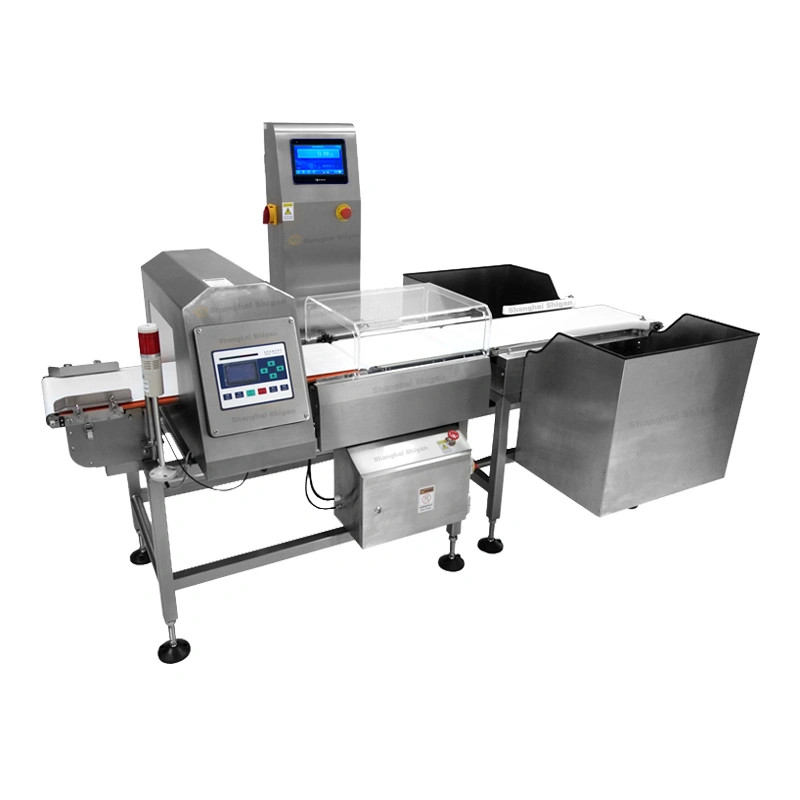

Compact checkweigher and metal detector combo pictures
Type SG-JS220
Specifications 4010
Main material SUS304
Inspection Width 220mm
Weighing Range 5-1500g
Weighing accuracy ±0.2g(depends on product)
Detection Width 220mm
Inspection height 100-200mm
Max Speed 25m/min
Capacity 10kg/times
Protection Grade Ip65
Display LED
Power AC220V
Alarm way Alarm,Belt stop
Size H:2267 W:589 H:1500 mm(depend on final design)
1. Simplicity: Large LCD touchscreen display with Chinese and English interfaces, allowing for language customization.
2. Precision: High-precision sensors ensure high detection accuracy and speed.
3. Real-Time: The graph displays the statistical distribution of sorting results, providing real-time insights into sorting dynamics.
4. Memory: 100 preset product sorting parameters can be set for quick switching between different product types.
5. Automatic Learning: High-speed, high-precision digital filtering algorithms automatically learn data filtering parameters. 6. Intelligence: Dynamic zero-point tracking, including zero-point tracking during continuous operation, automatically corrects weight values.
7. Reliability: A variable-frequency motor drive effectively improves operational stability.
8. Data: A pre-set data transmission interface allows you to set or export product sorting parameters via USB.
9. Accuracy: A photoelectric calibration weighing trigger method effectively improves the accuracy of the equipment.
10. Removal: Multiple removal methods are available, allowing you to remove overweight or underweight products.
Compact Checkweigher And Metal Detector Combo for Dual Quality Control
In the application of checkweigher and metal detector combo for quality control, Shanghai Shigan provides the following customized services to users in various industries:
1) Help users choose the checkweigher and metal detector combo model that suits the current status of the production line;
2) Customize weight detection, metal detection or quality abnormality solutions for users;
3) Design economical and practical online checkweigher and metal detector combination solutions for users;
4) Customize the front-end and back-end connection auxiliary mechanisms of assembly line equipment for users;
5) Provide users with consulting and training services for assembly line checkweigher and metal detector combination.
This compact checkweigher and metal detector combo can be widely used for post-packaging weight and metal inspection in a variety of industries, including food, pharmaceuticals, chemicals, textiles, clothing, toys, rubber, and more. It is the preferred product for HACCP certification in the food industry and GMP certification in the pharmaceutical industry.
Compact Checkweigher And Metal Detector Combo for Dual Quality Control
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
1. Equipment installation and commissioning: The company provides a detailed operation manual and free operation training so that customers can master the use of the equipment.
2. Technical support: The company provides 7x24 hours of technical support. Customers can contact engineers at any time to solve any problems encountered during use.
3. Accessories supply: The company provides original accessories to ensure the quality and stability of accessories.
4. Quality assurance: The company is responsible for the products sold and ensures that the quality and performance of the equipment meet industry standards.
5. One-year warranty, lifetime maintenance
