SG-150 high sensitivity push type hardware checkweigher

Hardware checkweigher is a kind of high speed and high precision on-line weight inspection equipment, dynamic weight signal processing system, rich software, electronic, mechanical components, so that the series can meet the requirements of all walks of life on-line weight inspection.


Notes:Many thanks for your support and please feel free to contact us should you need any further assistance.


  • SKU:

Overview


Detail

Place of Origin:China                                                          Model Number:SG-150

Brand Name:SHIGAN                                                          Power Supply:220V/50HZ

Display type:LDC                                                                Product name:SG-150 high sensitivity push type hardware checkweigher

Capacity:3-500g                                                                  Color:Silver or grey

Material: SU304 Stainless Stee                                            Function:Check weighing

Certificate:CE ROHS                                                           Warranty:1 year

Belt Speed: 65 m/min                                                           Power:100-240V/50-60HZ

 Belt width: 150mm                                                              Highest Speed:150 pcs/min


Supply Ability



supply ability:       30 Set/sets per Month checkweigher

Packaging &Delivery


Packaging Details      Automatic grain bags weighing scale check weigher with metal detector by wood case

Port                            Shanghai

Lead Time :


Quantity(Sets)1 - 1>1
Est. Time(days)20To be negotiated



Product Description


                            SG-150 high sensitivity push type hardware checkweigher

Checkweigher as known as online checkweigher,automatic check weighing machine,weighing machine,sorting scale,check weigher reject system.

Shigan Industrial Co., Ltd. is a professional checkweigher manufacturers and supplier .The hardware check weighing machine is a kind of high speed and high precision on-line weight inspection equipment, dynamic weight signal processing system, rich software, electronic, mechanical components, so that the series can meet the requirements of all walks of life on-line weight inspection.


Paremeter



Type:

6种剔除方式 (2).jpg


Main Features:


1.Man-machine interaction of touch screen

2.English-Chinese opration interface

3.Function of weight compensation

4.Analyzing qualified rate of products with bar chart and graph

5.Secondary operation rights management ,supporting self-set password

6.Preset storage of 100 product formulas

7.Several elimination methods of faulty products,supporting faulty stop function

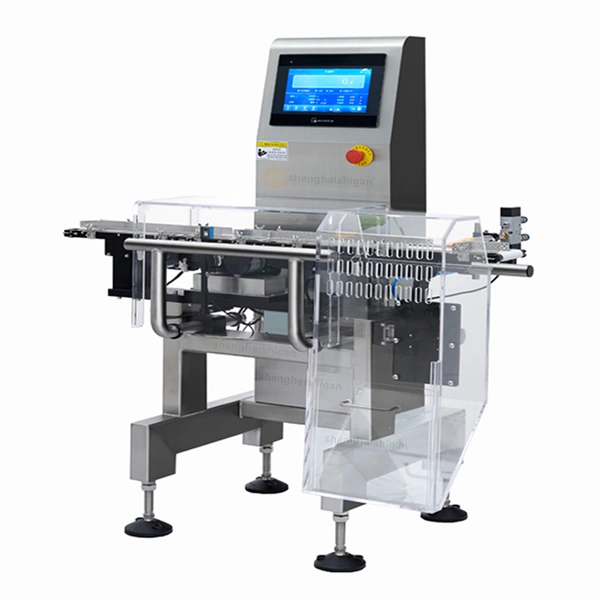

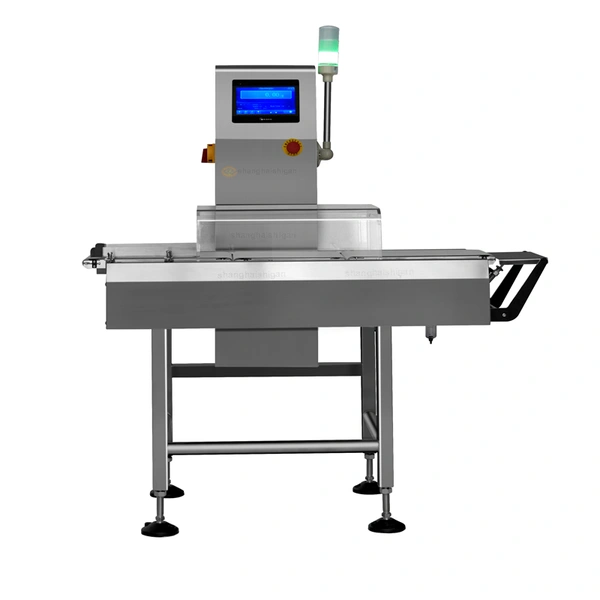

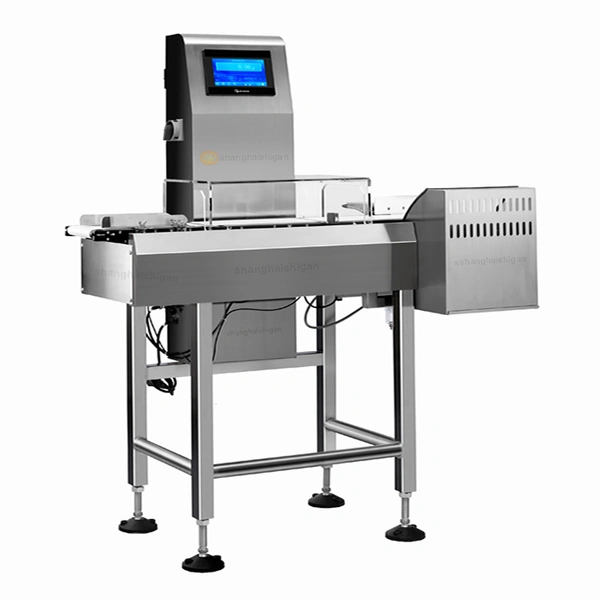

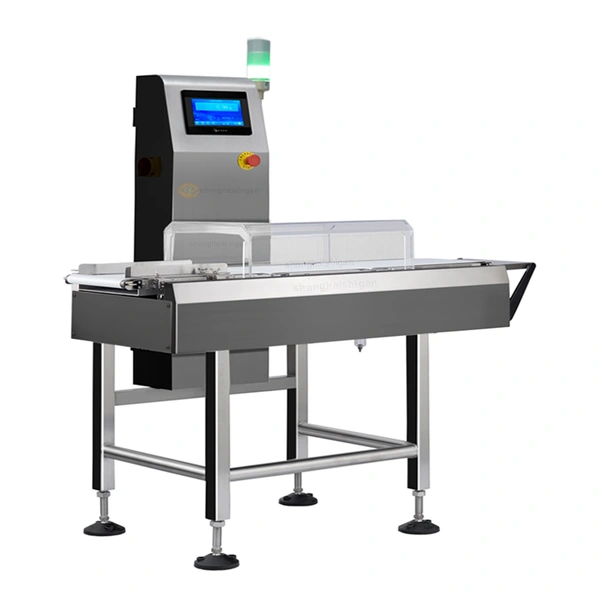

Hardware checkweigher Pictures

SG-150TC 2.jpg SG-150TC 3.jpg

SG-150TC 1.jpg SG-150TC 8.jpg


Application:

SG-150 high sensitivity push type hardware checkweigher  is suitable for testing the weight of a single product whether it is qualified or not, widely used in hardware industry.

300 400.jpg 482.jpg


Our Company


Shanghai Solid industrial Co., LTD has a professional R & D team, including a large number of professionals and advanced technology.Shanghai Practical Co., Ltd. in the professional field has also obtained many patents!




Factory


Shanghai Shigan industrial Co., LTD. Is a powerful manufacturer of inspection weigher, with decades of experience in design and production of inspection weigher, the quality is guaranteed, we also welcome consumers to visit our factory!



Customers& Exhibition


With years of export experience along with excellent quality, advanced services and competitive prices, SHIGAN has won numerous customers' trust and support.

7ef3eadd-541b-404f-a2a4-5235fed2f422.png kehu.jpg

IMG_1188.JPG IMG_1194.JPG

Packing & Delivery


                                                                  SG-150 high sensitivity push type hardware checkweighe


Packing Detail:

1. Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam  filling.

2. We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


124004887379664991.jpg 291371452803346755.jpg

594901603458190427.jpg HTB1NYDmtGQoBKNjSZJnq6yw9VXaL.jpg



Knowledge


1.What are the reasons for the conveyor belt of the weigher not running?

The conveyor belt of conveyor belt checkweigher does not operate for the following reasons:(1). Inspection of check weigher conveyor belt(2). Accuracy and speed:(3). Correct reset after disassembling or inspecting the equipment... Read More

2.How do different industries choose the appropriate culling methods?

Removal method of inspection weigher:(1). Pushrod elimination: with medium speed, it is suitable for removing products with moderate weight such as missing bottles and parts in packing case(2). Flip-flop elimination: with medium speed, it is generally suitable for products in the fruit and vegetable industry(3). Air-blown stripping: Compared with other stripping methods, it is very fast and suitable for light products or fragile products... Read More

3.The workflow of checkweigher introduce

(1)A scale into which the product is transported through a previous assembly line or by manual feeding.(2)Product entry to the "Infeed conveyor belt" of the check weigher: The distance between products will be pulled apart to ensurethat the entry to the "weighing platform" is a single product rather than multiple products.When products are sorted irregularly, they can also be sorted by "Infeed conveyor belt".(3)The product enters the "weighing platform" of the checkweigher(4)When the product enters the "reject part" of the checkweigher: when the rejection delay signal is detected in the rejection section, the rejection action will be made in a timely manner to accurately eliminate the unqualified products.... Read More

Our Service


A.Pre-sales

project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.


B.In-sales

we will provide you with the latest process in the product assembly,packing and transportation.


C.Installation

1.We provide videos and instruction manual to show the process of installation.

2.We provide training for installation for free in our factory.

3.We can send technician to buyer's factory to install the machine and provide training service.


D.After-sales

1. For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.

2.We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare  parts.

3.We provide technical support for our machines for life-long time. We can provide installation and maintenance service at your place if you need.
