High-quality Bottle Rotary Checkweigher High Precision Dynamic Industrial Check Weight Machine For Sale Price
Checkweigher as known as check weigher, inline check weighing machine, weight checker, weight sorting machine, sorting machine, weight check machine, weighing scale, and etc,.
The bottle rotary checkweigher is an automatic device used in the automatic packaging production line to check the weight of products. High precision dynamic checkweigher can check whether the weight of products meets the standard weight set by us during continuous operation, and unqualified products will be automatically alarmed and eliminated. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

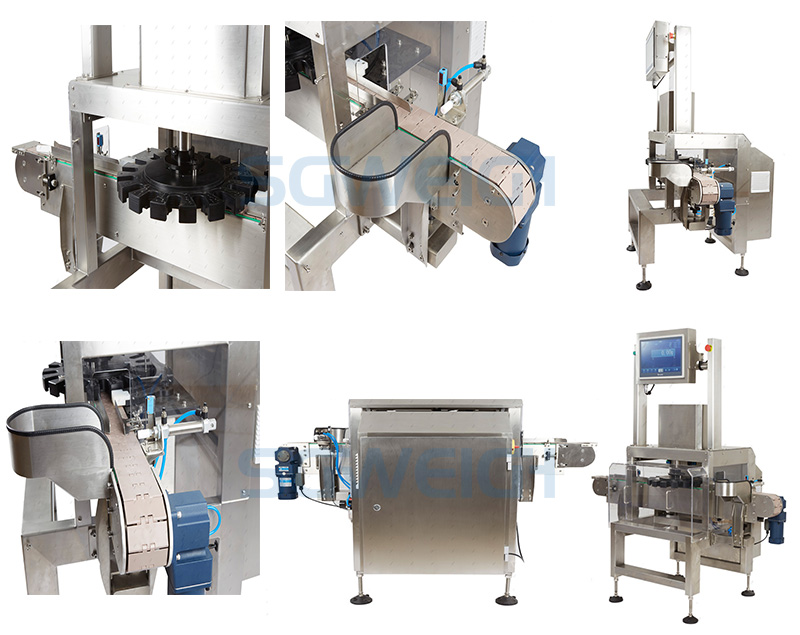

Bottle rotary checkweigher pictures
Model: SG-Z1
Weighing range: 5-300g
Minimum scale: 0.01g
Maximum sorting speed: 50 pieces/minute (one channel)
Conveying speed: 20-100m/min
Operation mode: Touch based operation
Conveying direction: from left to right
Removal method: air blowing removal/push plate removal

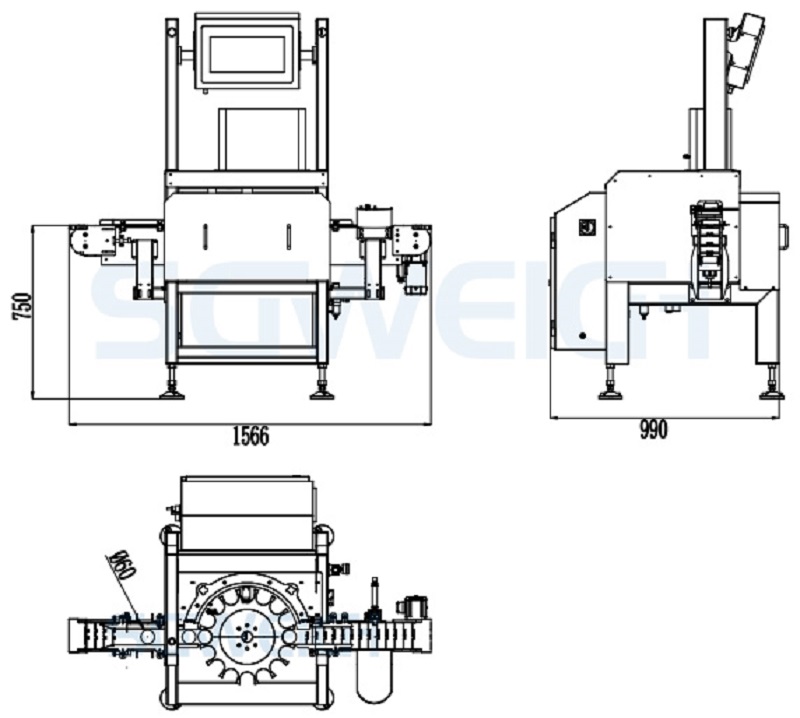

Belt height: 750 ± 50mm (customizable according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: 300W
Windshield: thick acrylic (to avoid airflow interference)
Working environment temperature: 0 ℃~40 ℃, humidity: 30%~95%
The properties and usage environment of the tested product vary, and the detection speed and accuracy also vary. Actual testing is the standard.
This configuration can also be customized for production according to customer requirements.
The customized projects are as follows:
1. Tailored countertop.
2. Highly customized.
3. The material can be customized.
4. The instrument and drum can be wirelessly connected
5. The instrument panel can come with its own USB storage function.
6. The instrument can send weight data through Bluetooth.
7. The instrument can choose automatic quantitative control output function
8. External printer function.
9. Built in upper and lower limit alarm light function.
10. External scanning gun function.
The bottle rotary checkweigher mainly consists of a front-end chain plate for feeding, clamping the turntable, weighing module, discharge chain plate, and removal.
1. Front end chain plate feeding: The front end feeding chain plate conveys the tested products one by one to the turntable through photoelectric induction..
2. Clamping turntable: mainly used to clamp the corresponding quantity of products into the weighing module, ensuring the accuracy of the quantity.
3. Weighing module: completes the collection of weight signals. When the tested product passes through the weighing module, all weight data of the entire process is analyzed and calculated to calculate the weight of the tested product. At the same time, the weighing module will determine whether the weight data obtained is within the required weight range.
4. Belt removal: When the product passes through this conveyor belt, it will continue to be transported back if it is qualified. If it is not within the required weight range, the machine will activate the removal mechanism to remove products that are not qualified (overweight/too light) in weight.
Bottle rotary checkweighers are widely used in industries such as food, beverages, pharmaceuticals, hygiene products, washing products, daily chemicals, and chemical industries. Bottle weight scales are currently important intelligent testing equipment for reliable automatic weighing or quality inspection in assembly lines.
Shanghai Shigan Industrial Co., Ltd.,
Our manufacturer has ISO9001, CE international certification,
1. More than 11 years of production experience
2. More than 10 years of foreign trade experience
3. More than 10 national technology patents
4. Cumulative overseas sales exceed 1,000 sets
5. Comply with EN60204 international standard
6. Our main products: inline check weight machine, online checkweigher, multi-stage sorting machine, digital metal detector, checkweigher and metal detector combo, weighing labeling machine, etc.
Equipment packaged in export standard wooden boxes (non fumigation). We can accept FOB, CFR, CIF terms, and our professional logistics team can handle sea, air, and railway transportation.
Pre sales service
Before providing suggestions to customers, we will clearly confirm their requirements to ensure that the suggestions we provide meet your requirements. Then we will give you a good quote.
On sale services
After placing an order with our production department, we will follow your order well and inform you of the production status. We will provide you with photos
After-sale service
The warranty period for this machine is one year, calculated from the date the customer receives the machine. During the warranty period, we will replace damaged parts (excluding human damage).
