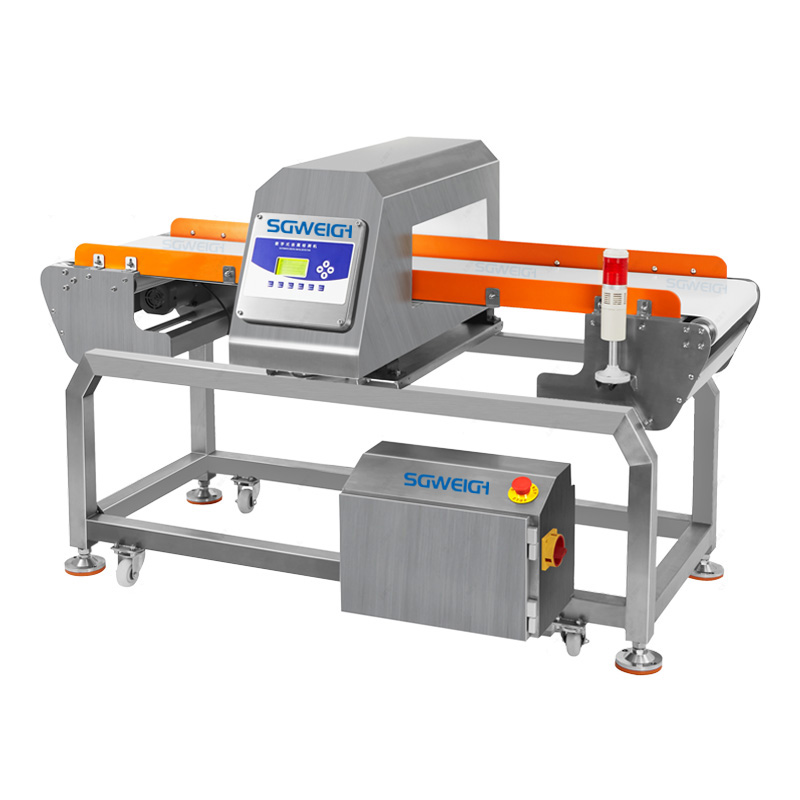

High-Performance Conveyor Metal Detector Industrial Metal Detection for Production Line
The high-performance conveyor metal detector provide reliable contaminant detection for ferrous and non-ferrous metals in food, pharmaceutical, textile, and packaging production lines. Our industrial metal detector for production line is constructed of durable stainless steel to withstand the rigors of production. Hygienic design simplifies cleaning and maintenance, while advanced technology ensures uninterrupted protection. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

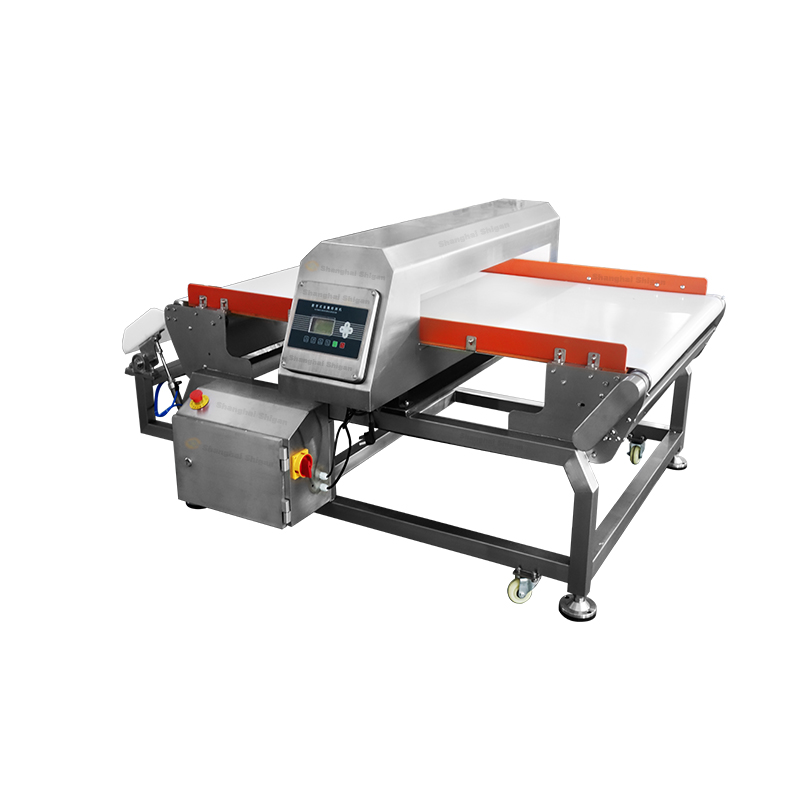

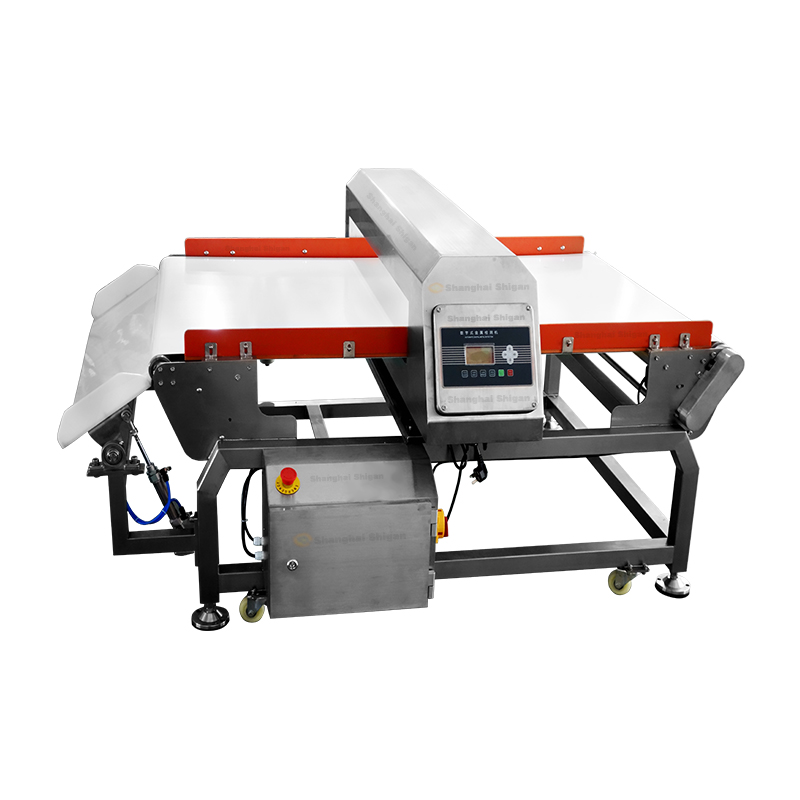

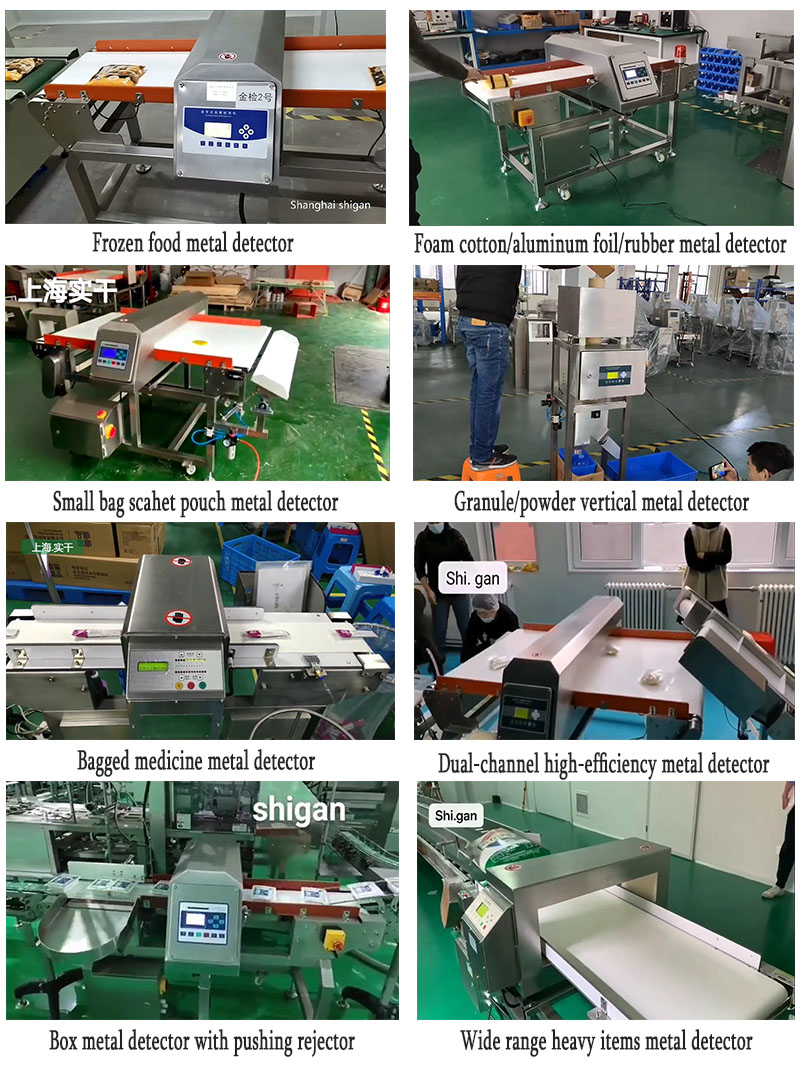

High-performance conveyor metal detector pictures
1. The operating system features a user-friendly, intelligent design and a one-touch self-learning function.
2. The probe's main control board utilizes digital intelligent technology, ensuring high sensitivity and strong anti-interference capabilities.

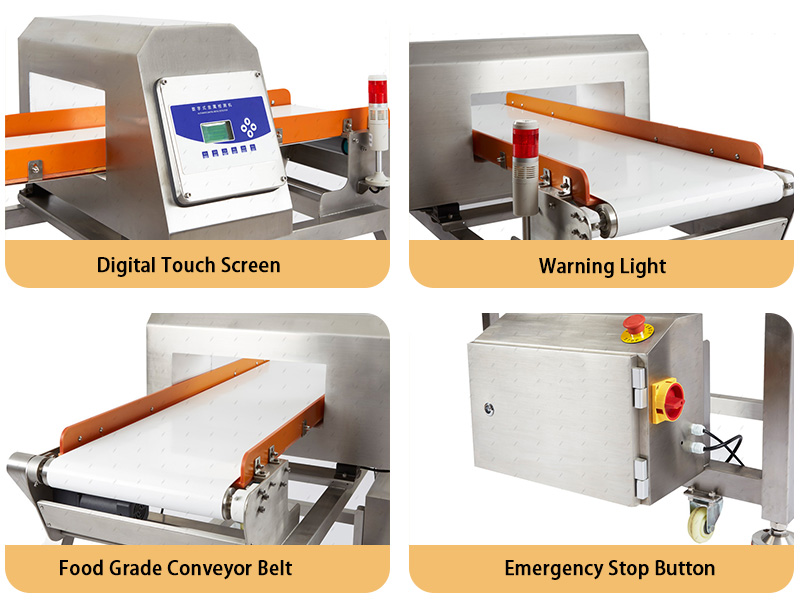

3. High-performance conveyor metal detector utilizes an LCD display and an intelligent, user-friendly interface for easy operation and a simple learning curve.
4. Industrial metal detector for production line utilizes phase adjustment technology to effectively suppress product effects.
5. Industrial metal detector for production line has a memory function for multiple product parameters, storing test parameters for different products.
6. Industrial conveyor metal detector features automatic fault detection and prompts upon startup, effectively preventing invalid tests.
7. The entire unit utilizes a modular design and assembly, simplifying assembly, commissioning, and disassembly, making it easy to maintain.
8. High-performance industrial metal detector can be customized based on the size, weight, and characteristics of the product being tested.
9. It can be customized to meet the production site's environmental and safety requirements with features such as waterproofing, dustproofing, vibration resistance, and explosion-proofing.

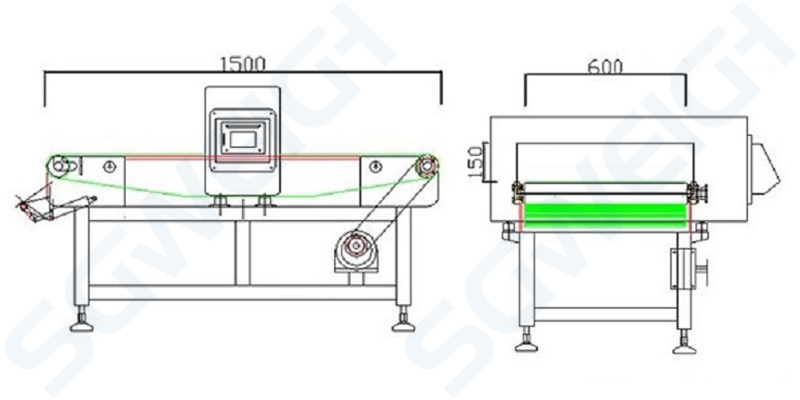

Detecting Tunnel Width 400mm* Height 60mm ( Customized)
Belt Height from Ground 770mm ( customized)
Language Chineses-English by default(Other languages customized)
Detecting Method Electromagnetic Wave
Sensitivity FeΦ0.3mm, CuΦ0.5mm, SusΦ1.0mm
Sensitivity Degree 100 Degrees
Alarm Mode Flap reject, Sound and Light Alarm, Belt-stop ( and other reject devices)
Conveyor speed Fixed speed 20m/min or adjustable 15-30m/min
Product Memory 12 products, 100 products ( optional)
Input Power/ Voltage Single-phase 220VAC or 110VAC 200W
Construction Material 304 SUS ( 316 SUS available)
Machine Weight 150kg
Flexible high-performance conveyor metal detector solutions
Customization is available based on specific requirements, including production line space, speed, detection accuracy, and material impact.
High-Performance Conveyor Metal Detector Industrial Metal Detection for Production Line
High-performance conveyor metal detectors are widely used in a full range of applications such as food, pharmaceuticals, textiles, toys, chemicals, cosmetics, raw materials, etc. Different machine types (conveyor type, free fall type, pipeline type, pharmaceutical type, etc.) can meet complete detection requirements.
High-Performance Conveyor Metal Detector Industrial Metal Detection for Production Line
1. Packaging Materials: International standard export packaging boxes are generally used, which are highly wear-resistant, shock-resistant, and waterproof. The box material can be hardwood, plastic, or special export cartons.
2. Protective Measures: To protect the machine from damage during transportation, sufficient filling materials such as foam and shock-absorbing cotton are added to the packaging box.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our factory.
After-Sales Service
* Machine installation and user training.
* One-year warranty, lifetime repair
