Candy Food Multi-lane Checkweigher Automatic Strip Package Checkweigher
Checkweigher as known as check weigher, check weight machine, check weighing machine, weight sorting machine, weight checker, and etc,.
The automatic multi-lane checkweigher can be connected to the discharge port of multiple packaging machines to check the weight of each product and move under or over weight products to the unqualified collection area. The food strip package checkweigher has independent multiple lanes, which can simultaneously detect the weight of multiple columns, greatly improving the weighing speed and avoiding empty, too light, and overweight bags. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

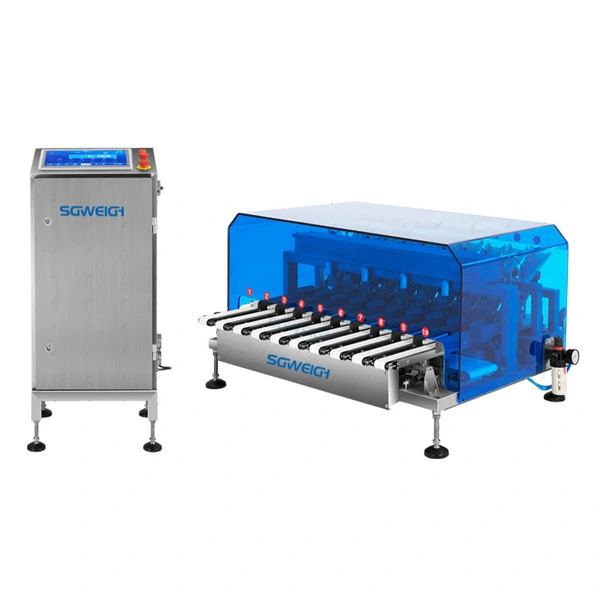

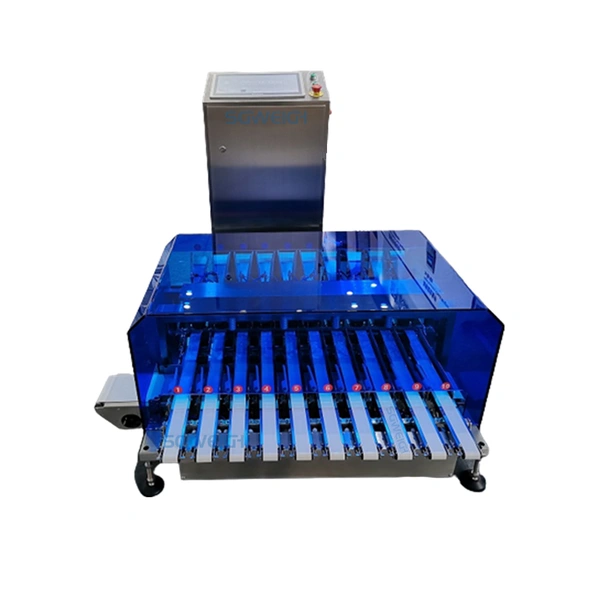

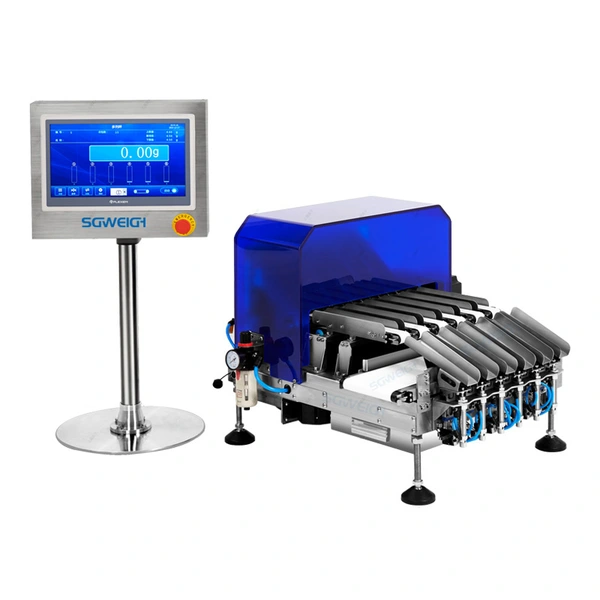

Food automatic multi-lane checkweigher photos
Type SG-10XM
Weighing Range 2-300g
Limited of product L: 180 W: 40 H: 2-20mm
Accuracy ±0.01g Depends on product
Division Scale 0.01g
Each Channel Speed 70 pcs/min
Belt Width 30mm
Machine Weight 200kg
Power Supply AC 110/220V ±10% 50HZ
Power 300W
Main Material SU304 stainless steel
Please provide the following information when sending the inquiry so that we can quickly provide you with accurate feedback and suitable solutions.
1. Product details (product name, minimum/maximum size, and weight).
2. Packaging details (packaging material, size, shape).
3. Capacity and detection accuracy requirements.
4. Other special requirements.
1. Significantly improved detection speed per unit time
2. Effectively prevent defective products such as empty bags, underweight, and overweight
3. Count the passed products and automatically remove non-conforming products through the sorting device
4. It can be used in conjunction with multi-lane packaging machines, automatic filling machines, metal detectors, etc.
5. Customizable according to on-site production line requirements, with the option to configure automatic barcode scanning and inkjet systems
6. The number of detection columns can be customized according to customer needs (such as double columns, four columns, six columns, ten columns, etc.)
7. Each channel can independently eliminate non-conforming products.
8. The number of consecutive non-conforming products in each channel can be modified.
9. Statistical data for each channel: real-time result display, trend chart display, histogram display.
Automatic multi-lane checkweigher is suitable for multi row simultaneous automatic weight detection of small packaging products such as food, medicine, light industry, electronics, hardware, industrial products, and daily necessities.
Shanghai Shigan Industrial Co., Ltd. is a modern enterprise located in Shanghai, China, engaged in mechanical design, research and development, manufacturing, and sales of various checkweighers and metal detectors for over 14 years. Our product positioning is to design first-class machines. We adhere to the marketing philosophy of "quality first, customer first" and the work philosophy of "honest service, continuous improvement". Our machines are sold both domestically and internationally, selling well in Asia, Southeast Asia, the Middle East, Europe, Africa, South America, and other regions, receiving high praise from customers.
Main products
Checkweigher for Food industry
Checkweigher for the pharmaceutical industry
Checkweigher for Cosmetics industry
Checkweigher for Daily Necessities
Checkweigher for Hardware fitting
Checkweigher with metal detector
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
Engineers availbale to provide after-sales service overseas in order to help customers solve technical problems.
