Box Metal Detector Machine with Rejector Dynamic Conveyor Metal Detecttion System
This box metal metector machine with rejector, equipped with a rejector, can accurately detect even the smallest metal contaminants, immediately removing contaminated products and protecting your production line. Designed for long-term stable operation, this dynamic conveyor metal detecttion system features a robust stainless steel construction that meets stringent hygiene and safety standards. You are welcome to contact us at any time for quotation.

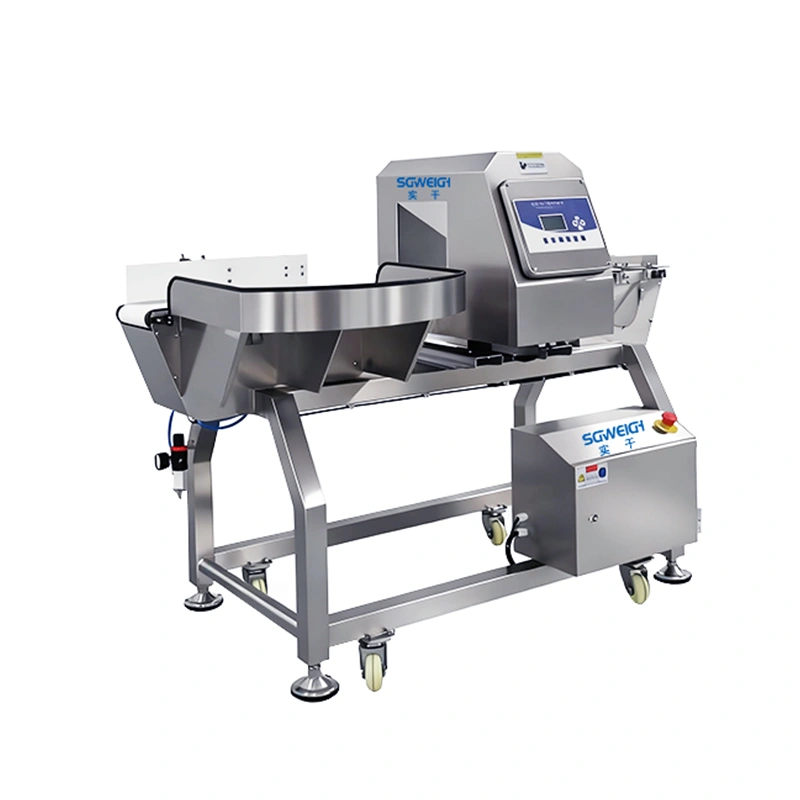

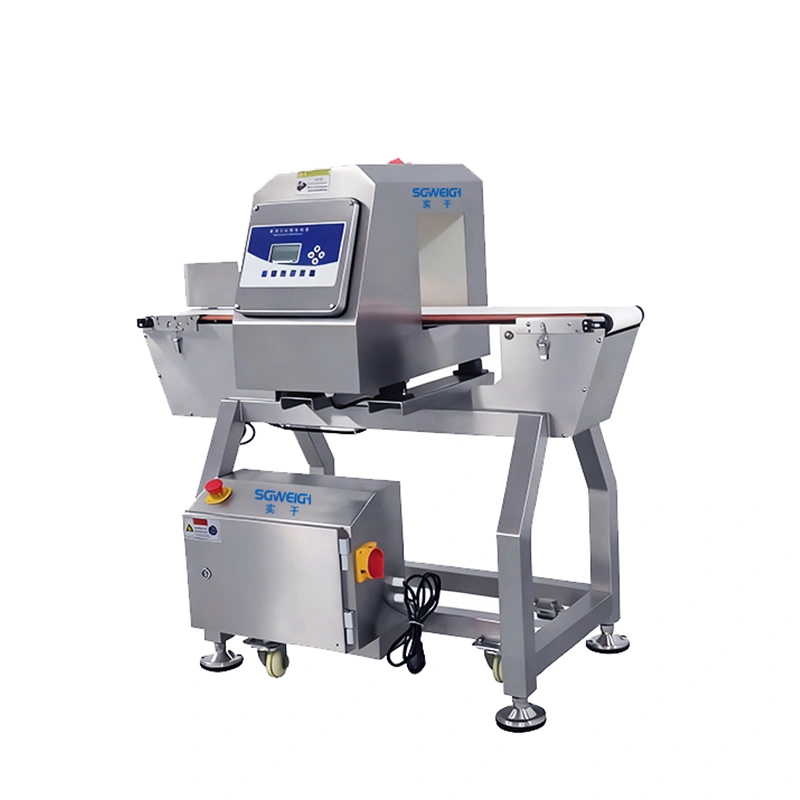

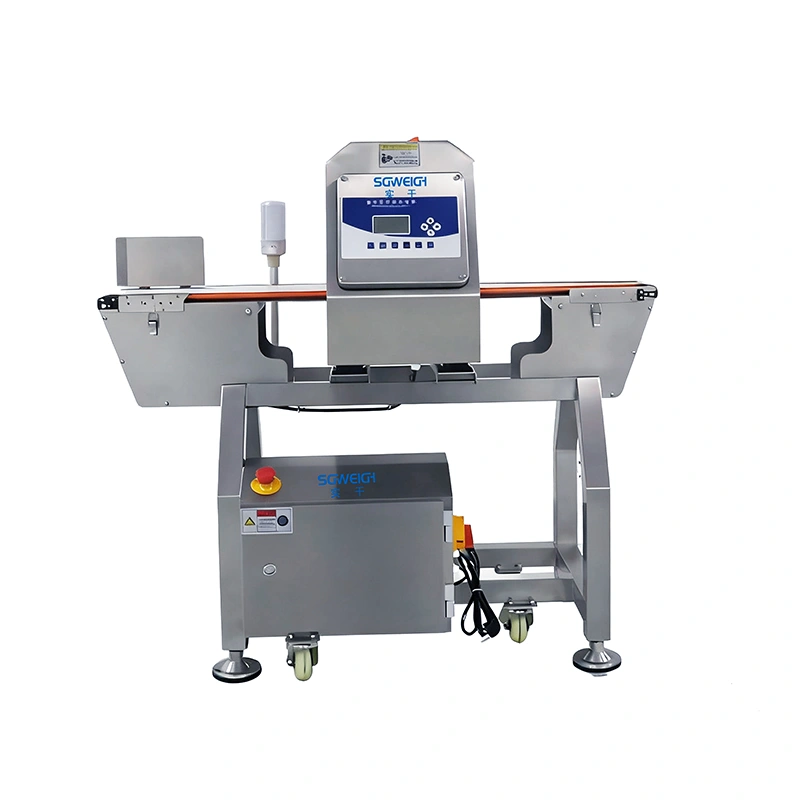

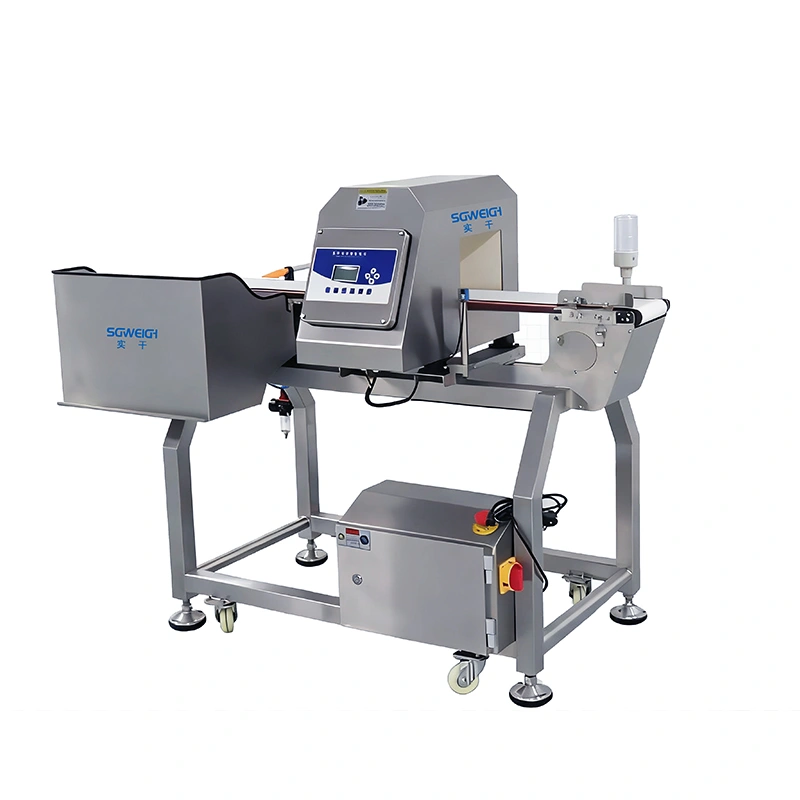

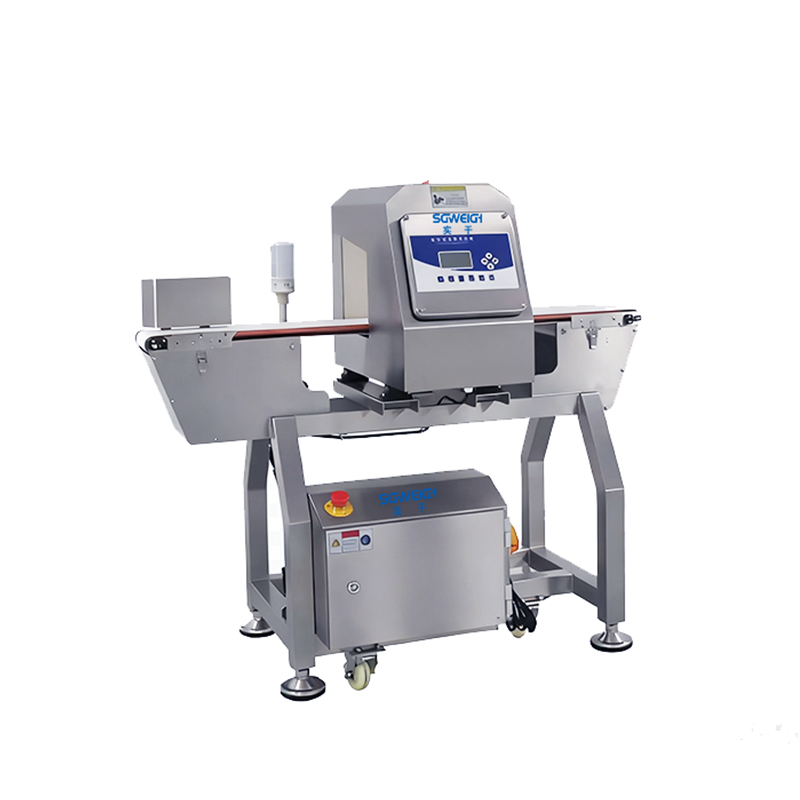

Box metal metector machine with rejector pictures
1. High Sensitivity: Capable of detecting extremely small metal impurities, ensuring product quality.
2. High Stability: Maintains stable detection performance under various operating conditions, avoiding false alarms and missed detections.
3. Easy Operation: The box metal metector machine with rejector features an intuitive user interface, allowing operators to easily set parameters and view test results.
4. Strong Adaptability: Applicable to production lines with varying thicknesses and speeds, meeting diverse production needs.
5. Intelligent Features: Equipped with automatic calibration and self-diagnosis functions, improving equipment reliability and ease of maintenance.
Detecting width 200/300/400 mm(customizable)
Detecting height 100 mm / 120 mm / 150 mm / 200 mm / 250 mm / 300 mm (customizable)
Detection sensitivity Iron Fe acuity Φ 0.8 mm; Nonferrous Non - Fe acuity 1.2 mm; Stainless steel 304 SUS acuity Φ 1.5 mm
Sensitivity control Automatic configuration
Display screen 4.3 -inch LCD
Shelf life prediction 99 species of
Load capacity 0-5 kg
The speed of conveyor 350 mm (customizable)
Speed of conveyor belt 25 meters per minute
Height of conveyor belt above ground 700 mm (can be customized)
The length of conveyor belt 1200 mm
Machine material Stainless steel 304

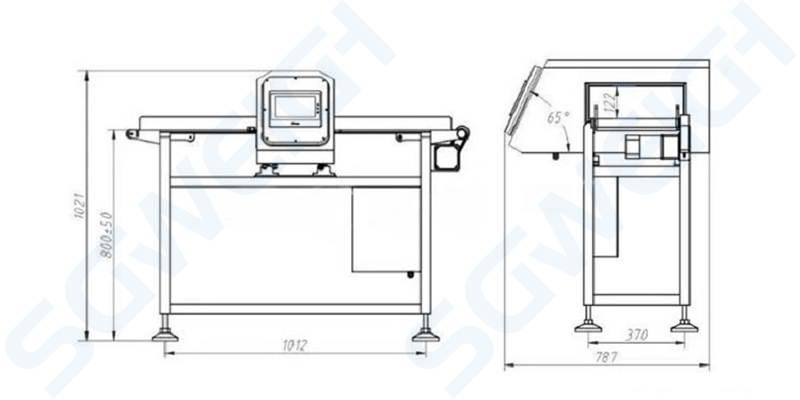

Boundary dimension 1220 x 880 x 900 mm (specific need to be measured according to the customized size)
Weight 130 kg
Power supply 110 V/220 V/50-60 Hz(customizable)
Service environment 0-40ºC relative humidity 30~85%, but no condensation

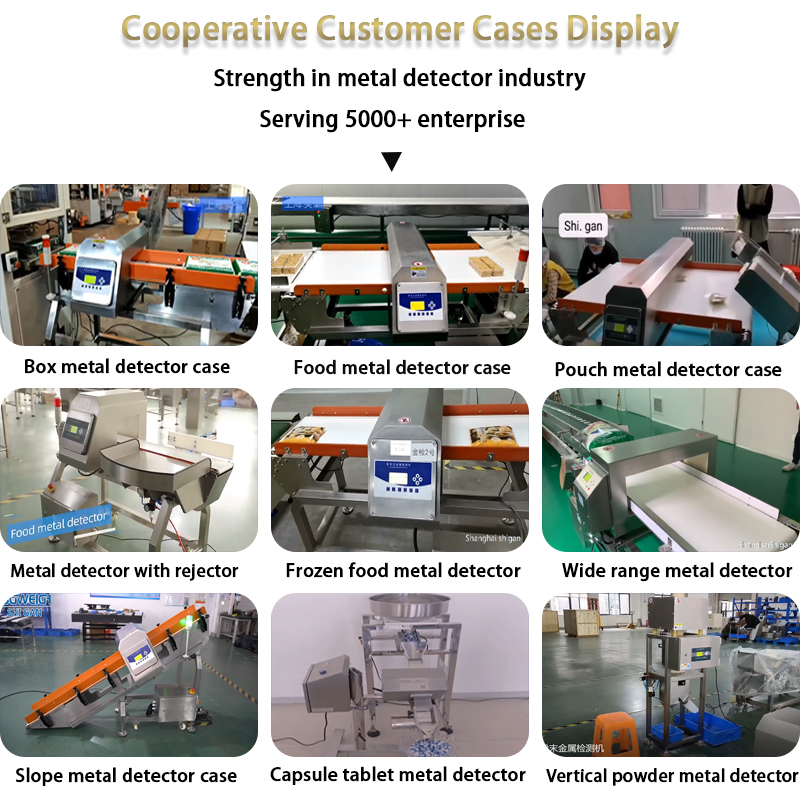

Box metal metector machine with rejector is mainly used for metal detection in various industries such as food, additives, pharmaceuticals, health products, and cosmetics. It can detect particulate matter of various metals such as iron, stainless steel, copper, aluminum, and lead, and can detect all forms of packaging, including bulk, bagged, boxed, and cartoned packaging.
Box Metal Detector Machine with Rejector Dynamic Conveyor Metal Detecttion System
The dynamic conveyor metal detecttion system shown may not meet your requirements. SGWEIGH has extensive experience, expertise, resources, and capabilities in automatic metal detector manufacturing. We tailor efficient, economical, and high-quality metal detector solutions to meet your specific needs.
Box Metal Detector Machine with Rejector Dynamic Conveyor Metal Detecttion System
The food automatic metal detector is packed in standard export wooden crates (fumigation-free). We accept FOB, CFR, and CIF terms, and our professional logistics team can handle sea, air, and rail transport.
1. Warranty: Our packaging machines come with a 12-month warranty. Most parts are replaced free of charge under warranty (PLC, servo controller, servo motor, touch screen, cylinder).
2. After-sales Service: One-year warranty, lifetime maintenance.
3. Technical Support: We will provide technical consultation, drawings, specifications, customized solutions, and technical problem analysis before customers place an order.
4. Operation Training: We welcome customers' technicians to visit our factory to learn the operation process, take photos, and record videos.
