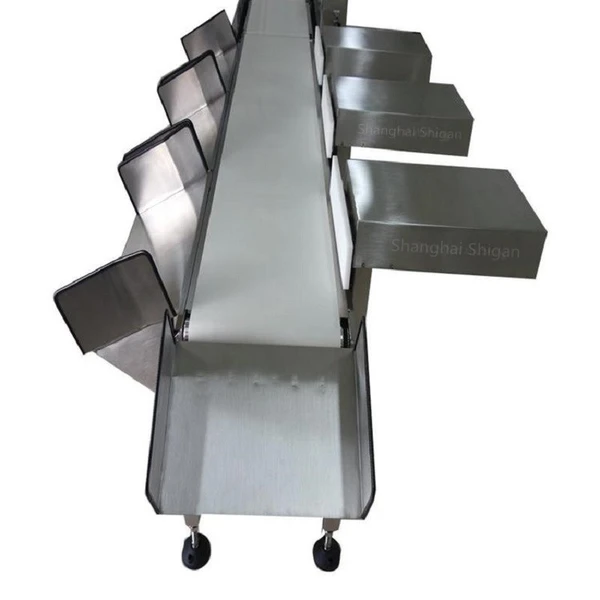

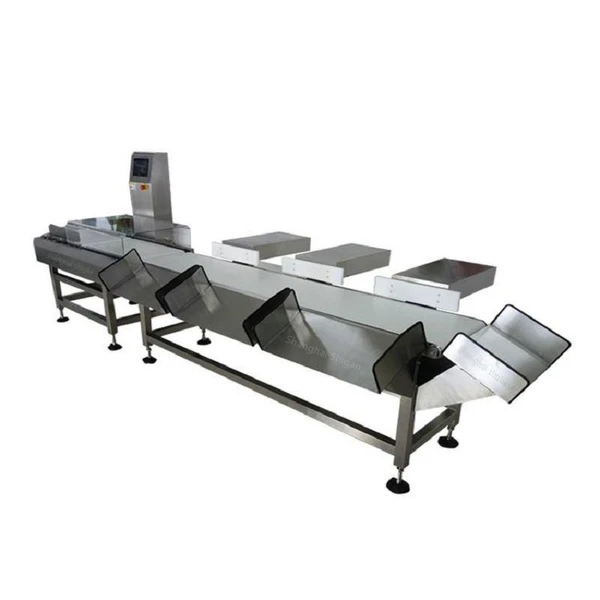

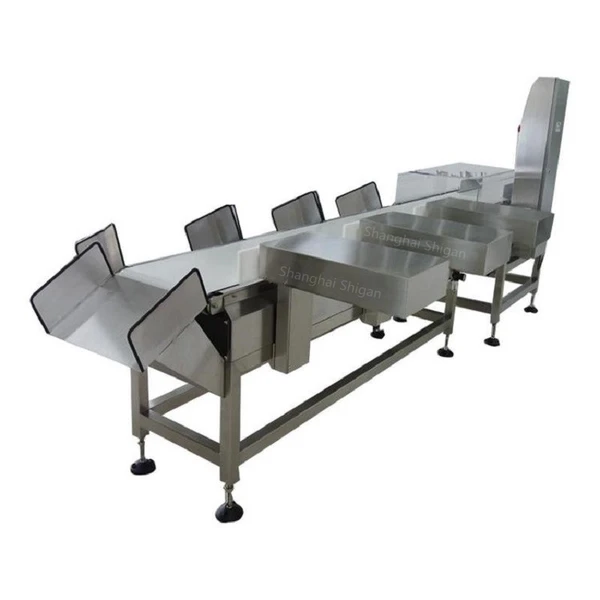

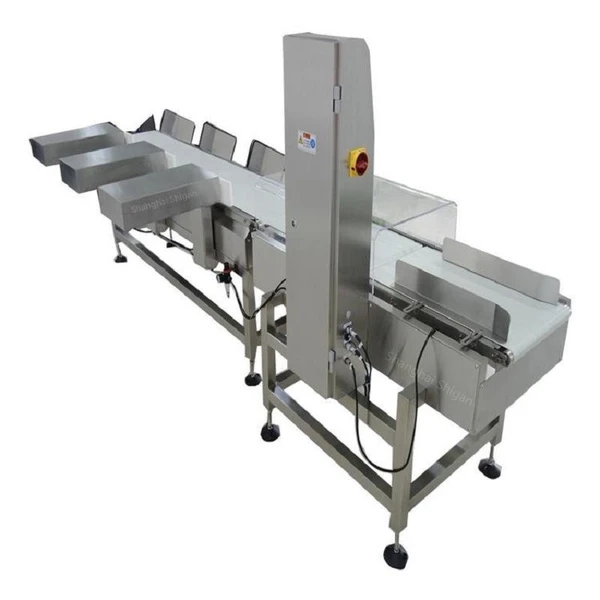

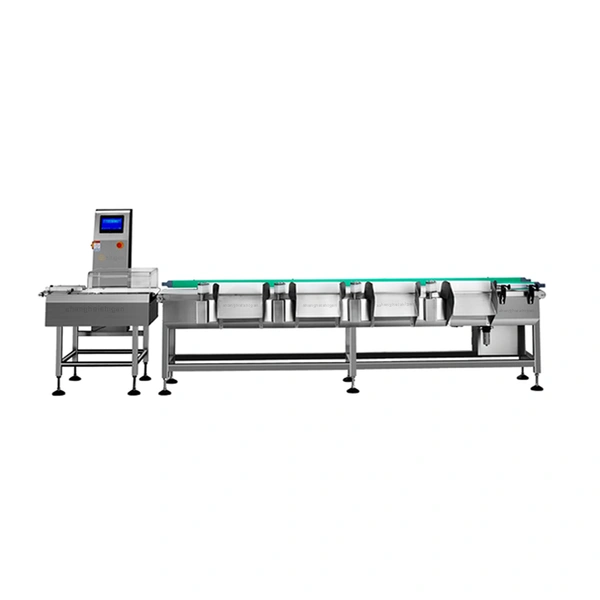

Automatic cherry fruit sorting and weighing scale,multi-stage check weigher supplier

Automatic cherry fruit sorting and weighing scale,multi-stage check weigher supplier.Weighing machine can be used to weigh cherry, tomato these small fruits, you can choose to blow out, push rod out, dial rod out, drop out or other weed out ways.The screen of the weighing machine supports the use of touch and humanized operation.


Product tip: Our company produces a wide range of product specifications, if you want to know more about the content of the weighing machine or quotation, please  get in touch with us for consultation.

  • SKU:

Overview


Detail:

Place of Origin:Shanghai,China                                             Brand Name:SHIGAN

Model Number:SG-150TC                                                      Power Supply:AC 110/220V ±10% 50HZ

Display Type:LED                                                                    Product name:Automatic cherry fruit sorting and weighing scale,multi-stage check weigher supplier

Belt Material: Food grade PU  belt

Size:L: 200  W:150  H: 3-200mm

Function: sorting and weighing                                                 Warranty:1 year



Supply Ability:


Supply Ability:               20 Set/Sets per Month check weigher



Packaging & Delivery:

Packaging Details      Automatic grain bags weighing scale check weigher with metal detector by wood case

Port                            Shanghai

Lead Time


Quantity(Sets)1 - 1>1
Est. Time(days)15To be negotiated



Customization:

                   CuStomized logo(Min.Order:1 Sets)

                   Customized packing (Min. Order:1 Sets)



Automatic cherry fruit sorting and weighing scale,multi-stage check weigher supplier

Introduce

The sorting and weighing scale also called automatic checkweigher,sorting scale,weighing machine,online weight checker and so on.

The sorting and weighing scale can be used to weigh cherry, tomato these small fruits, you can choose to blow out, push rod out, dial rod out, drop out or other weed out ways.The screen of the weighing machine supports the use of touch and humanized operation.


Feature And Advantage

1. Adopt special imported dynamic weighing unit to realize high-speed and stable measurement;

2.10 inch oversized color touch screen interface, simple operation, intuitive display;

3. Automatic type selection method to avoid human error;

4. Automatic zero-point analysis and tracking system to ensure the stability of detection;

5. Built-in temperature and noise compensation system to ensure reliable data;

6. Powerful data statistics function, recording daily detection data, can store 100 sets of product data, convenient for customers to call, and the data will not be lost if the power is suddenly cut off;

7. The conveying system adopts frequency conversion speed regulation mode to facilitate the coordination of front and rear speeds;

8. Dynamic weight compensation technology, more real and effective detection data;

9. Self-fault diagnosis and prompt function for easy maintenance;

10. 304 reinforced stainless steel frame, in line with GMP and HACCP specifications;

11. Simple mechanical structure, quick disassembly, cleaning and maintenance;

12. Customers can choose from a variety of culling devices: blow culling, push rod culling, dial rod culling, drop culling, etc.;

13. External data communication interface, which can be connected to other equipment in the production line (such as marking machine, code spraying machine, etc.) and equipped with peripheral USB interface, easily realize data export and upload!

150TC1.jpg 150TC8.jpg

Online checkweigher                                             Digital check weight machine



Production Process

Shigan Industrial Co., Ltd. is a professional manufacturer and supplier that is concerned with the design, development, and production of weighing machine.All the inspection scales of our company are produced and sold by ourselves, Shanghai Shigan is a reliable manufacturer, and this series of inspection scales can be customized to meet your different needs!


Specifications


TypeSG-150TC
Weighing Range3-500g
Limited of productL: 200  W:150  H: 3-200mm
Accuracy±0.1g Depends on product
Division Scale0.1g
Belt Speed0- 65 m/min
Max Speed 150 pcs/min
Belt Width150mm
Machine Weight60kg
Power SupplyAC 110/220V ±10% 50HZ
Power100W
Main MaterialSU304 stainless steel



Applications

Shanghai Shigan products and sells weighing and sorting machine adopts the continuous dynamic automatic weighing method to detect the weight of goods, and is equipped with the automatic sorting mechanism, so as to realize the high speed and high precision of weight detection and sorting on the assembly line.Widely used in fruits ,vegetables and other food industry.

蔬菜水果.jpg timg.jpg


Service

A.Pre-sales

project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.



B.In-sales

we will provide you with the latest process in the product assembly,packing and transportation.



C.Installation

1.We provide videos and instruction manual to show the process of installation.

2.We provide training for installation for free in our factory.

3.We can send technician to buyer's factory to install the machine and provide training service.



D.After-sales

1. For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.

2.We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare  parts.

 3.We provide technical support for our machines for life-long time. We can provide installation and maintenance service at your place if you need.


About Us


1.OEM Experiences above 7 Years In Belt Industry

2.Factory Manufacturing Enterprise Provide with you Competitive Price and superior quality

3. Have stable supply chain which can guarantee our product quality and prompt delivery

4. Strict QC process to guarantee quality.

5.Trial Order small quantity for retail and wholesale are accepted

6. Fully equipped with advanced machines and Experience workers

7.Sincere Service!(Effective pre-sale communication+Good after sale service )

8.Various equipment to supply your need





Exhibitions

QQ图片20190117135310.jpg 展会图片.jpg

展会图片1.jpg 展会图片2.jpg

Over the years, Shanghai Shigan has participated in many exhibitions, and our company has attracted a large number of customers and friends with its excellent quality, high-precision detection,professional technical guidance and patient service. At every exhibition, a large number of new and old customers will come to know and buy our inspection weighers, and become our sincere "fans".

Clients

7ef3eadd-541b-404f-a2a4-5235fed2f422.png lADPGpNybmyjlMLNBDjNBaA_1440_1080.jpg_720x720q90g.jpg

Customization Philosophy:

The product demonstrating may not perfectly meet your requirements,

(We accept kinds of customized and logo of all of our products for customers .)

OEM services are available with us, our professional designer would make your private idea into being.

Now our products have been sold to more than 60 countries all over the world. Shanghai Shigan Industrial Co., Ltd. is far ahead in the industry with its high quality products, low price and considerate after-sales service, which is deeply trusted and loved by consumers



FAQ


1.Are you manufacturer or trader? Where are your factory located?

We are manufacturer and our factory located in Shanghai,China.


2.What's your main product where is your main foreign market?And do you have your own design team?

Our main products are check weight machine ,metal detector and our main foreign market in Asia, North America, Europe, Africa.And we have our own design team to design our own products.


3.What's your strong points?And how can i confirm the quality of your product?

Highest precision of our products can achieve±0.05g and the highest speed can achieve 300pcs/min.Our electronic parts of equipment all adopt international famous brand.For example:

The switch is Germanic Schneider,Conveyor Belt is Swiss HABASIT,The relay is Japanese OMRON. If the products have been tested qualified,it will be sent out.So The quality of our product is stable and reliable.


4.What are your terms of payment?

TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.


5.What kind of Transportation do you have?And are you able to update the production process?

Ocean freight, air freight, and international express. And after your order ,we will shipping it as soon as possible and each step of procedure i will give you pictures or necessary information.


6.Are you provided product metal parts and gave us technical guidance?

 Wearing parts,for example, motor belt,Disassembly tool(free) which we can provide.And we can give you technical guidance.


7.How long is your warranty?

12 months free warranty, life-long maintenance.


8.What kinds of overseas service can you offer?

Our engineer can go abroad to provide you with technical guidance.



Technology

  1. How does fruit weighing and sorting machine work?

    When the object is placed on the scale, BAI, the pressure is applied to the sensor DU, which deforms to make the zhi impedance change. At the same time, the excitation voltage is changed to output a changing analog signal.The signal is amplified and output to an ANALOg-digital converter by an amplifier circuit.This translates into digital signals that are easily processed and output to the CPU's operational controls, which then output the results to the display based on keyboard commands and programs.

  2. What is the effect that fruit weighing and sorting machine?

    Weighing and sorting machine is a kind of dynamic weighing equipment on the production line, it can pass and detect the weight of each product, remove unqualified products, or according to the weight of classification treatment.It provides a more economical solution for the simple on-line weight inspection, and has the characteristics of fast detection speed, high measurement accuracy and strong equipment stability。

  3. How much does the fruit weighing and sorting machine?

    Due to different industries, the products to be tested will be different, and this equipment is a non-standard customized product, so the price cannot be fixed.The final quotation is subject to the customer service quotation.
