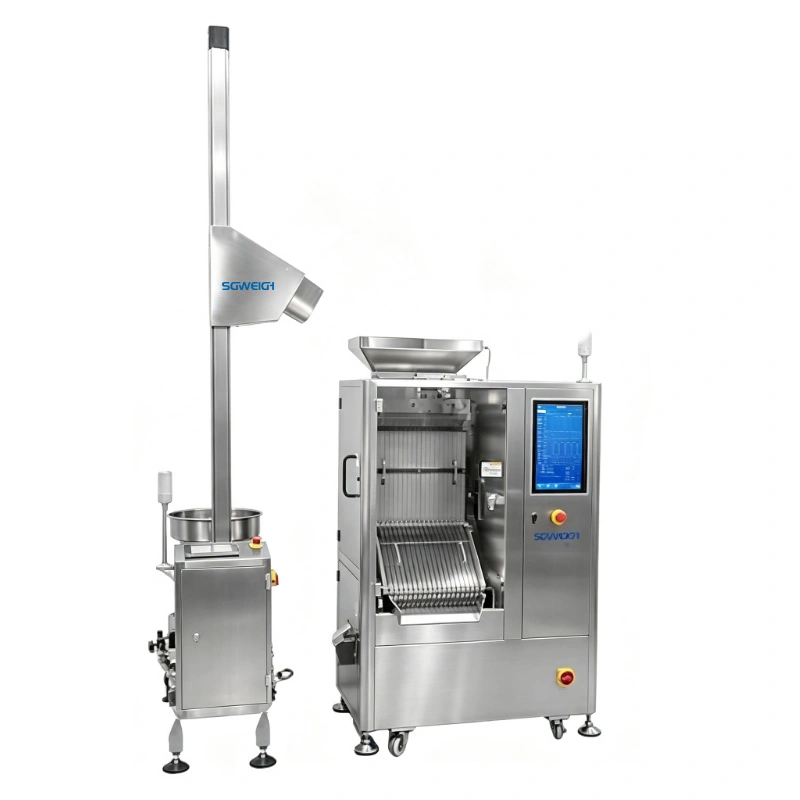

Automatic Capsule & Tablet Checkweigher with Elevator Weight Inspection Machine
This automatic capsule & tablet checkweigher with elevator provides automated, high-precision weight inspection by individually weighing each capsule or tablet and comparing the result against a preset target weight and tolerance range. Underweight or overweight products are automatically identified and rejected, preventing non-compliant items from proceeding to subsequent production stages. An integrated lifting mechanism enables controlled vertical product transport—a particularly useful feature when the automatic capsule & tablet checkweigher must connect to upstream or downstream equipment located at different heights. This facilitates a smoother production workflow while reducing the need for manual product handling. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

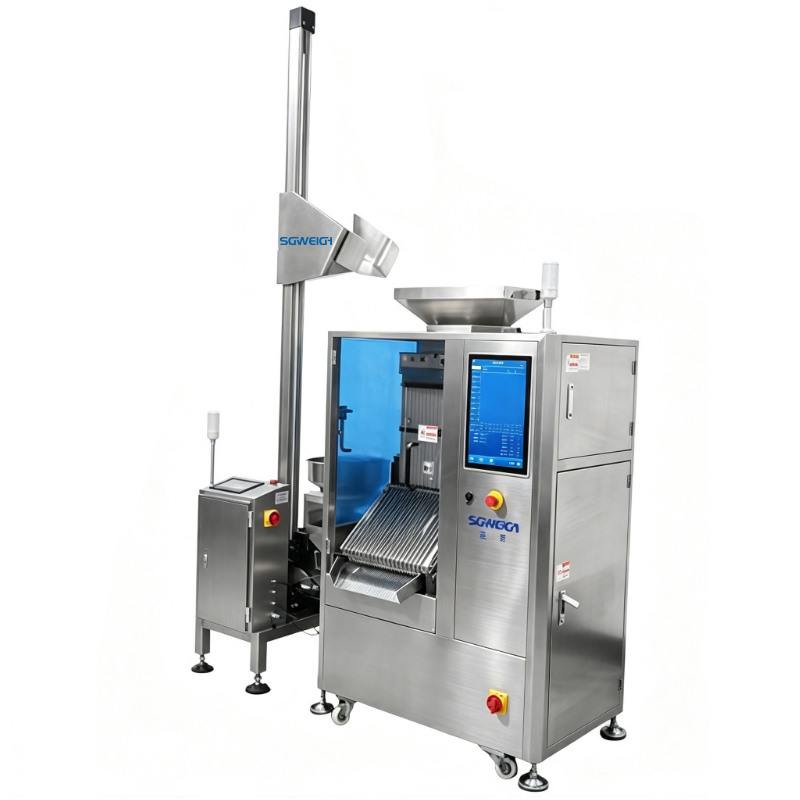

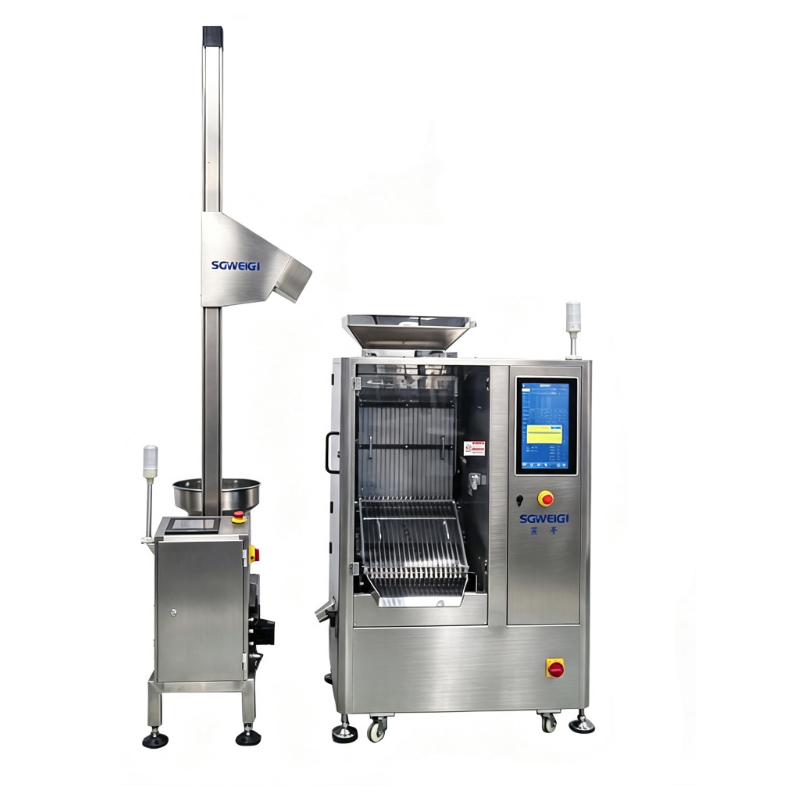

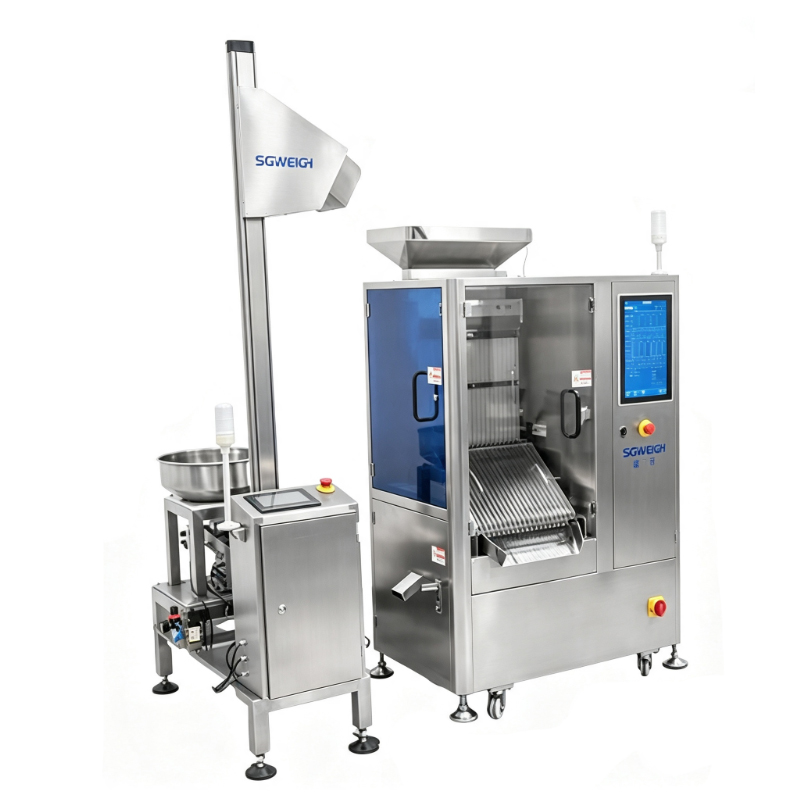

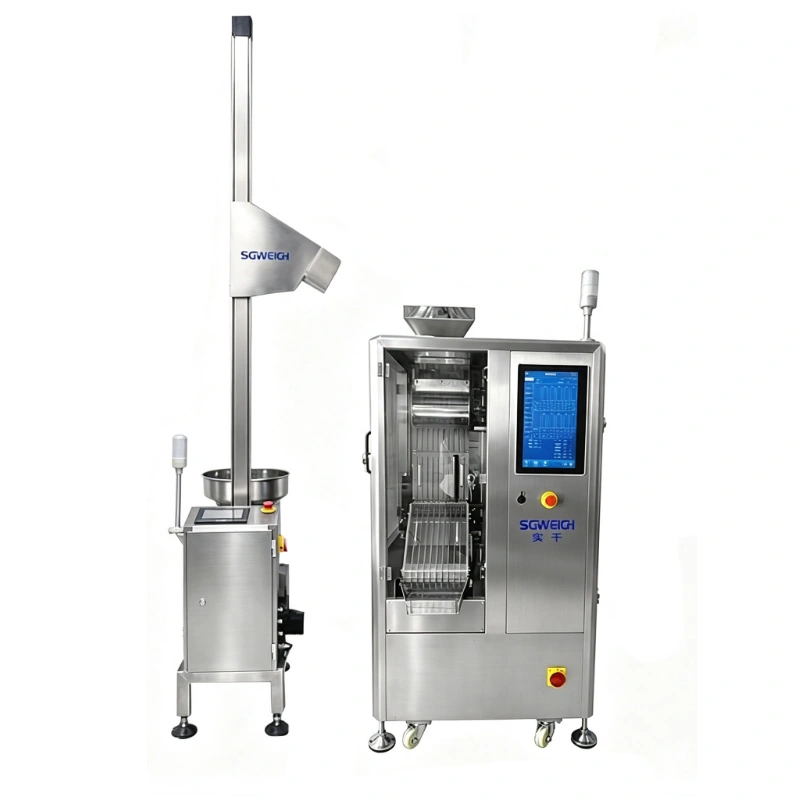

Automatic capsule & tablet checkweigher with elevator photos
1. Accurate capsule and tablet weight inspection
2. Integrated elevator for efficient product transfer
3. Automatic detection of weight deviations
4. Automatic rejection of non-conforming products
5. Continuous inline operation
6. Suitable for pharmaceutical and nutraceutical production

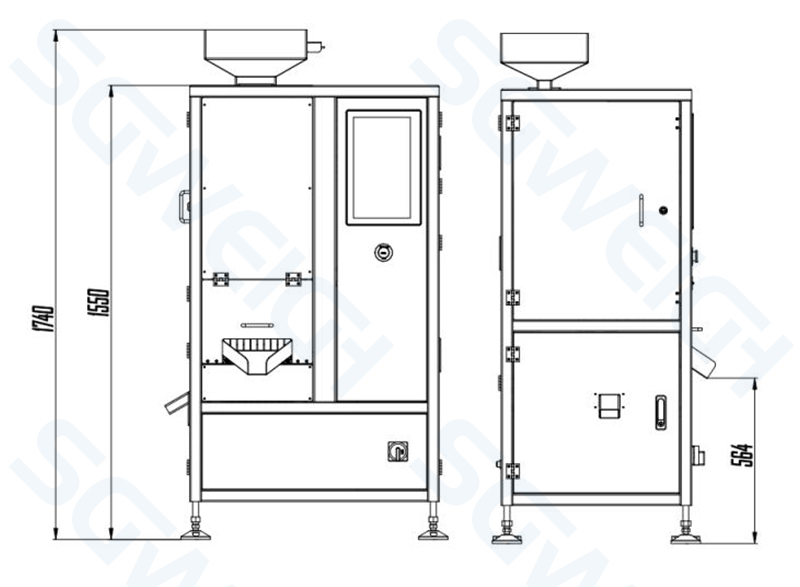

Type SG-JN20
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 15W pcs/HR
Number of columns: 20
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:500kg
Shell Material:SUS304 Stainless Steel
The automatic capsule & tablet checkweigher with elevator can be applied to a variety of solid-dose products, including hard capsules, soft capsules, tablets, pills, vitamins, and nutraceutical products. Configurable weighing parameters allow the equipment to adapt to different product specifications and quality-control requirements.
Automatic Capsule & Tablet Checkweigher with Elevator Weight Inspection Machine
Upgrade your pharmaceutical production line with automated weighing and reliable product elevation. Contact SGWEIGH today for a customized capsule and tablet checkweigher solution.
Automatic Capsule & Tablet Checkweigher with Elevator Weight Inspection Machine

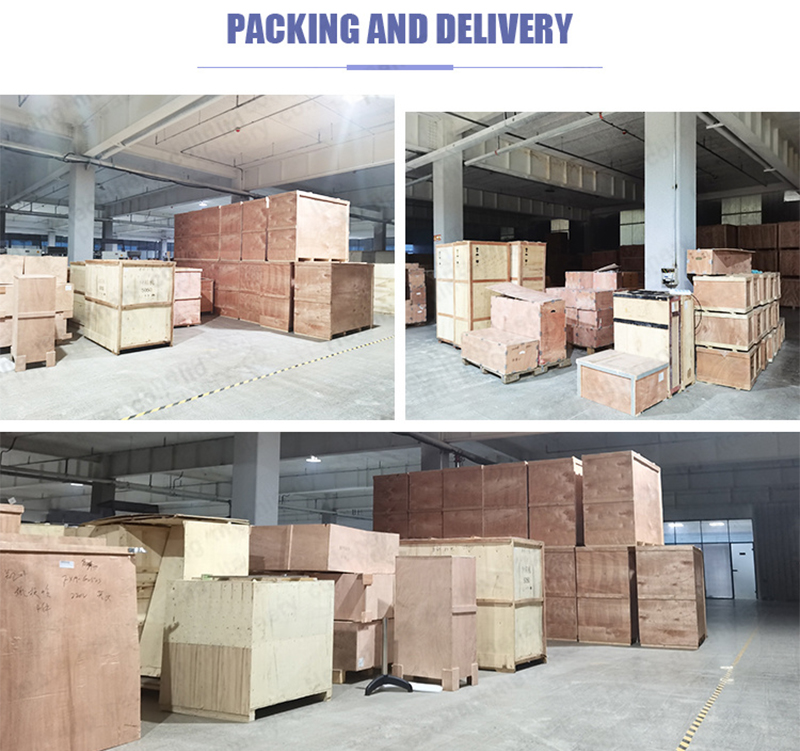

Packaging:
1. Outer Packaging: Standard export wooden crates
2. Inner Packaging: Products are carefully wrapped with stretch film, and the corners are secured with hardwood boards and strong bandages.
3. Inspection Team: Professional personnel will inspect and sort your shipment.
1. How can you best meet our requirements and needs?
We will recommend suitable machine models and make unique designs based on your project details and requirements.
2. Are you a manufacturer or a trading company?
We are a manufacturer; We have a 17 year history of specialized production lines for dynamic checkweighers and metal detection machines.
3. How do we check the quality of your machine after placing an order?
We will send you photos and videos of the machine before shipment to check its operation. More importantly, you are welcome to come to our factory to inspect the machines yourself.
4. Why did we choose you?
The machine has a one-year warranty and lifelong maintenance. Provide solutions as soon as problems arise.
