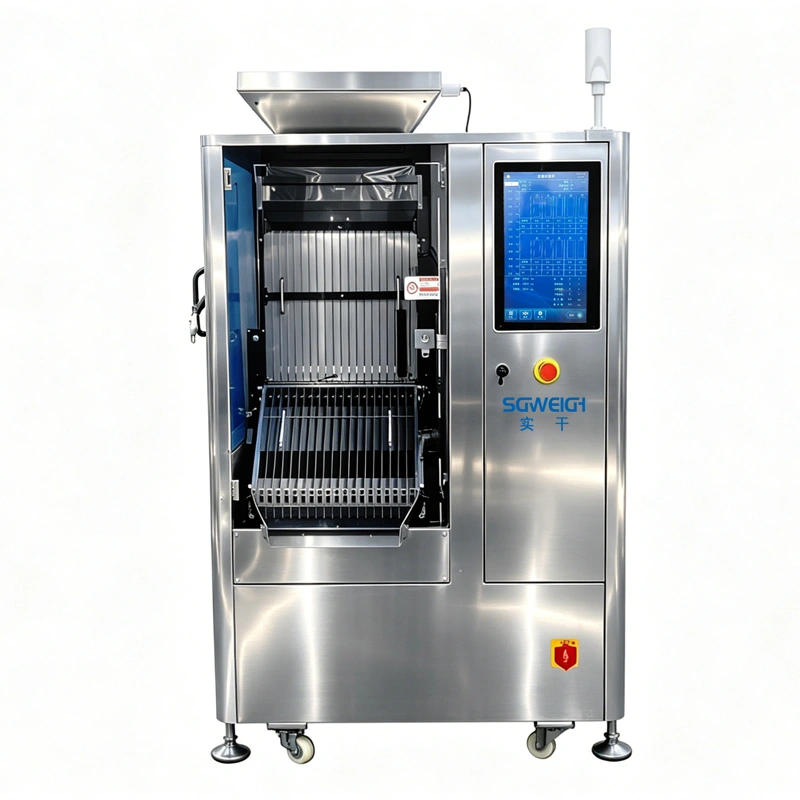

20-Lane Capsule Tablet Checkweigher Inline Pharmaceutical Checkweigher System
Designed for high-output production environments, this 20-lane capsule and tablet checkweigher simultaneously monitors up to 20 inspection lanes, ensuring every capsule and tablet meets strict weight specifications by identifying underweight, overweight, empty, or defective products prior to packaging. Engineered for demanding pharmaceutical applications, this pharmaceutical capsule tablet checkweigher delivers exceptional performance and reliable operation. Independent weighing lanes provide precise measurements for each product line, enabling accurate quality control during high-speed production. If you are interested in our products and services, please keep free to contact us for a quote.

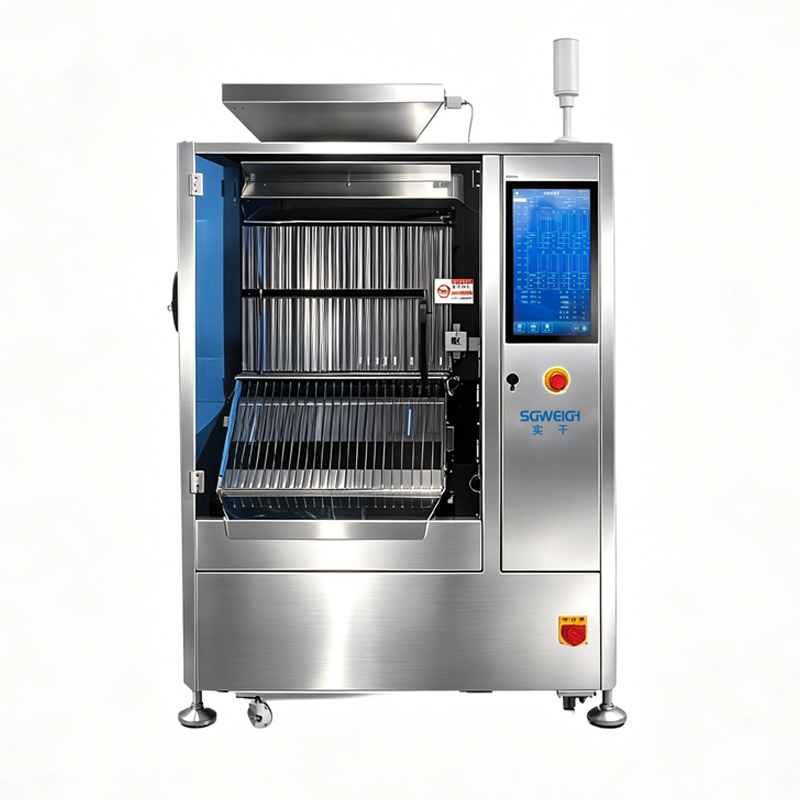

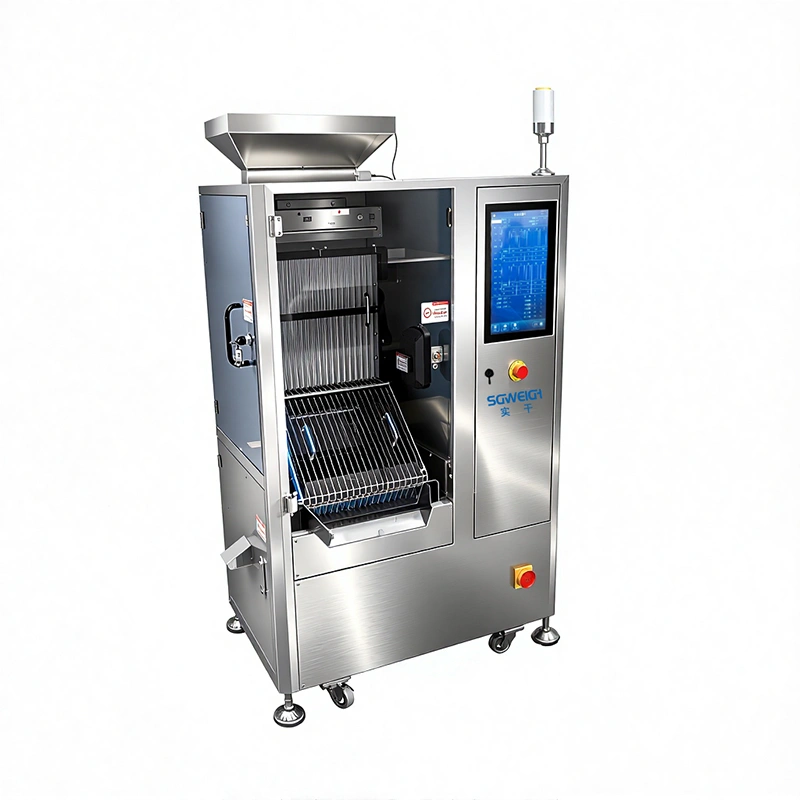

20-lane capsule and tablet checkweigher photos
Type SG-JN20
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 15W pcs/HR
Number of columns: 20
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:500kg
Shell Material:SUS304 Stainless Steel
1. Simultaneous inspection of up to 20 lanes
2. High-speed dynamic weighing technology
3. Detection of underweight and overweight products
4. Automatic rejection of non-conforming capsules and tablets
5. Real-time weight monitoring and data collection
6. User-friendly touchscreen interface
7. Fast product changeover and easy operation
8. Hygienic stainless-steel construction

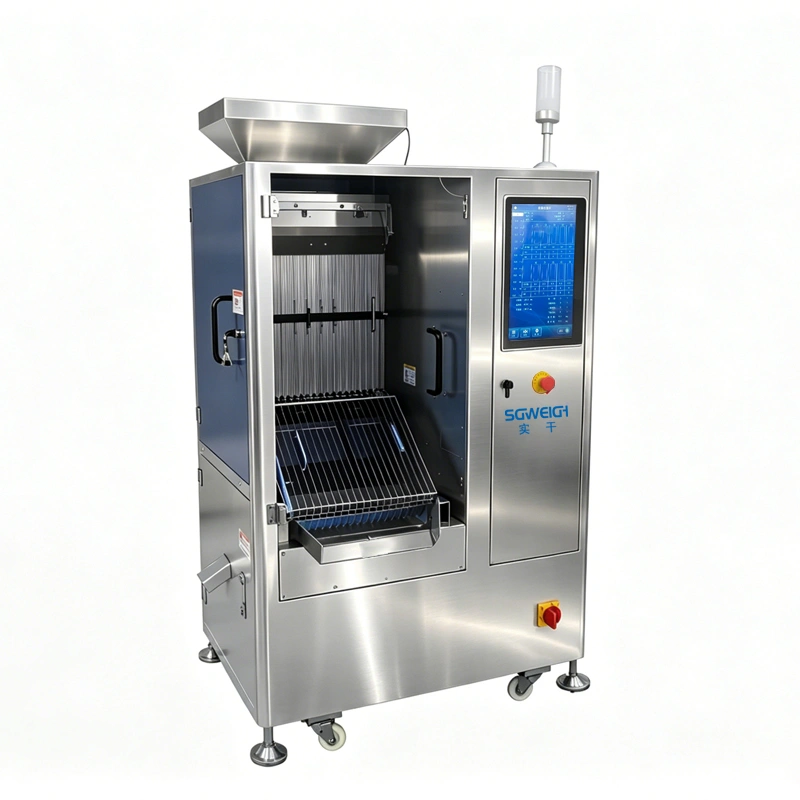

20-Lane Capsule Tablet Checkweigher Inline Pharmaceutical Checkweigher System

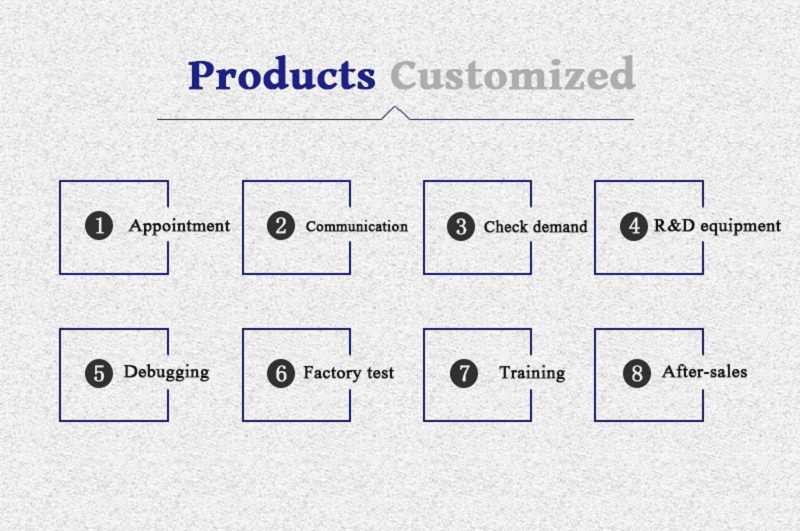

The 20-lane capsule and tablet checkweigher shown may not meet your requirements. We can personalize our systems to meet different user needs, including the number of detection rows (2-35 lanes), perfectly solving capsule and tablet checkweighing problems on the production line.
20-lane capsule and tablet checkweigher is suitable applications include:
1. Hard capsules
2. Soft gel capsules
3. Tablets
4. Effervescent tablets
5. Nutraceutical supplements
6. Herbal capsules
7. Health products
8. Pharmaceutical dosage forms

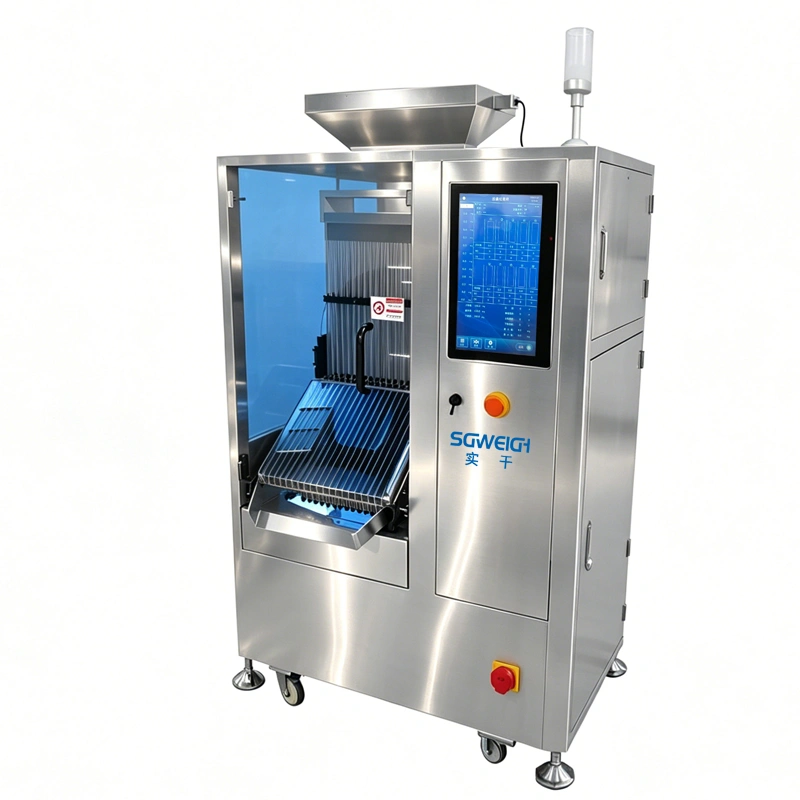

20-Lane Capsule Tablet Checkweigher Inline Pharmaceutical Checkweigher System

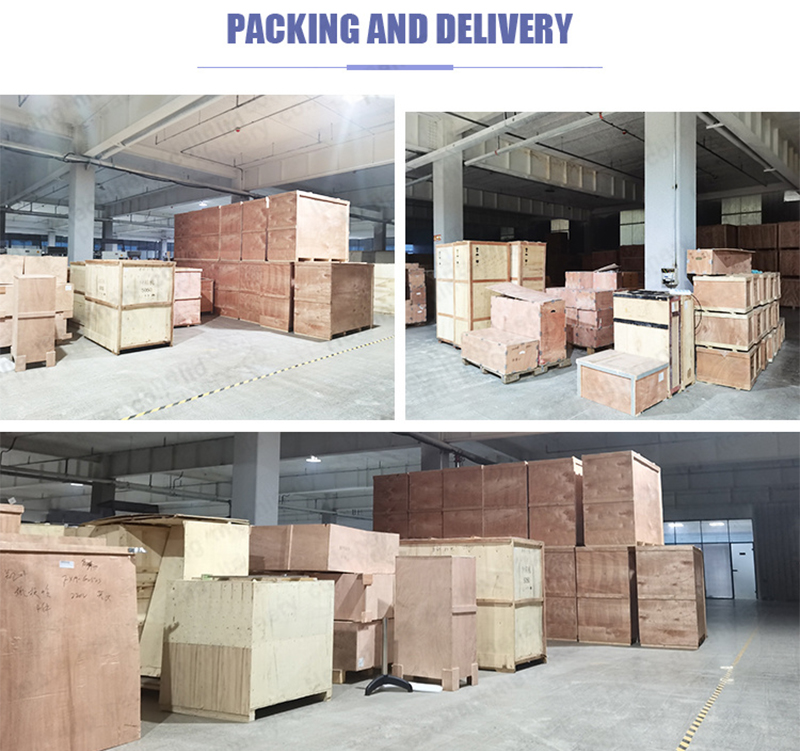

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
1. Product quality commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). For the inspection of product performance, we sincerely invite users to personally visit the entire product process and performance inspection. Only after confirming that the product is qualified can it be packaged and shipped.
2. Product price commitment:
(1). Under the same competitive conditions, our company sincerely provides you with preferential prices without reducing the technical performance of the product or changing the product components.
3. Delivery time commitment:
(1). Product delivery time: as far as possible according to user requirements. If there are special requirements, they must be completed in advance to strive to meet user needs.
