Strip Packs Multi-Lane Checkweigher for Pharmaceutical Online Checkweighing System
For high-throughput pharmaceutical applications, this strip packs multi-lane checkweigher for pharmaceutical enables automated, dynamic weight inspection across multiple production lanes. It performs continuous checks as products move along the production line, promptly identifying items that are underweight or overweight. The online multi-lane checkweighing system provides real-time monitoring for each lane and can be integrated into existing packaging lines, creating a streamlined, efficient process that encompasses packaging, conveying, weighing, and product rejection. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us for a quote.

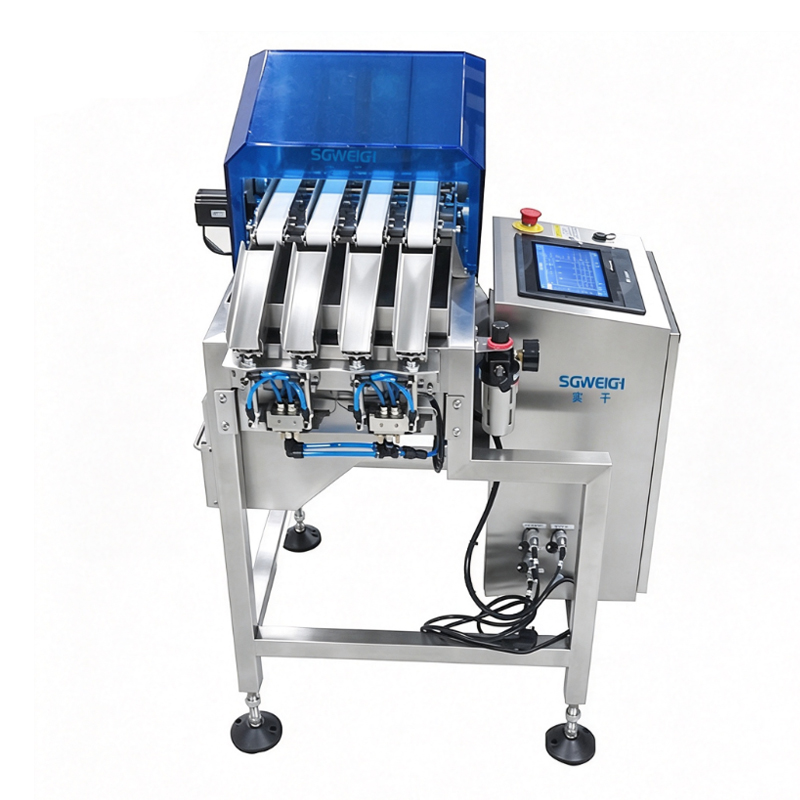

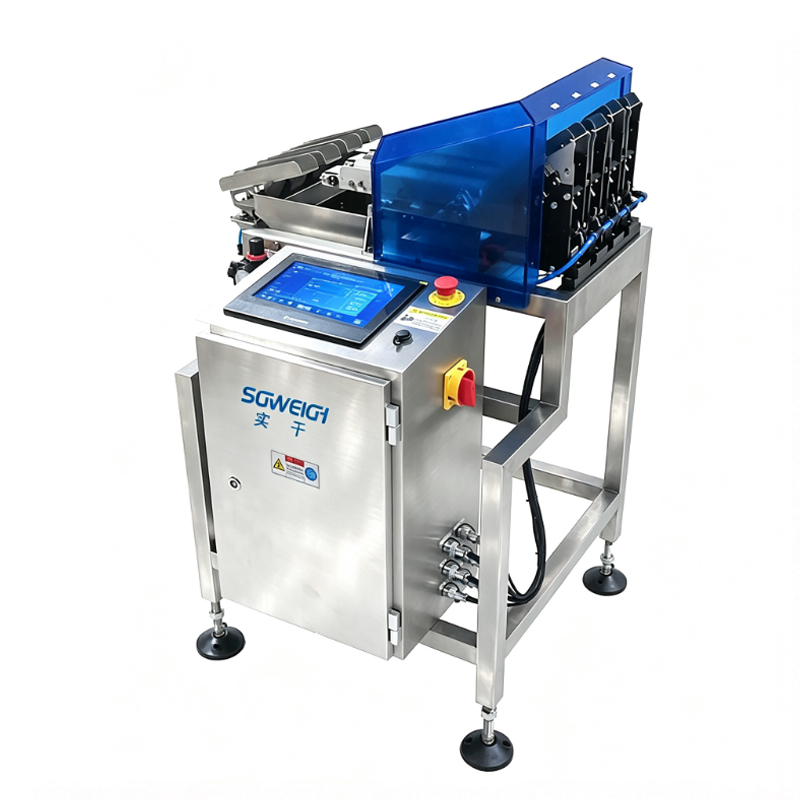

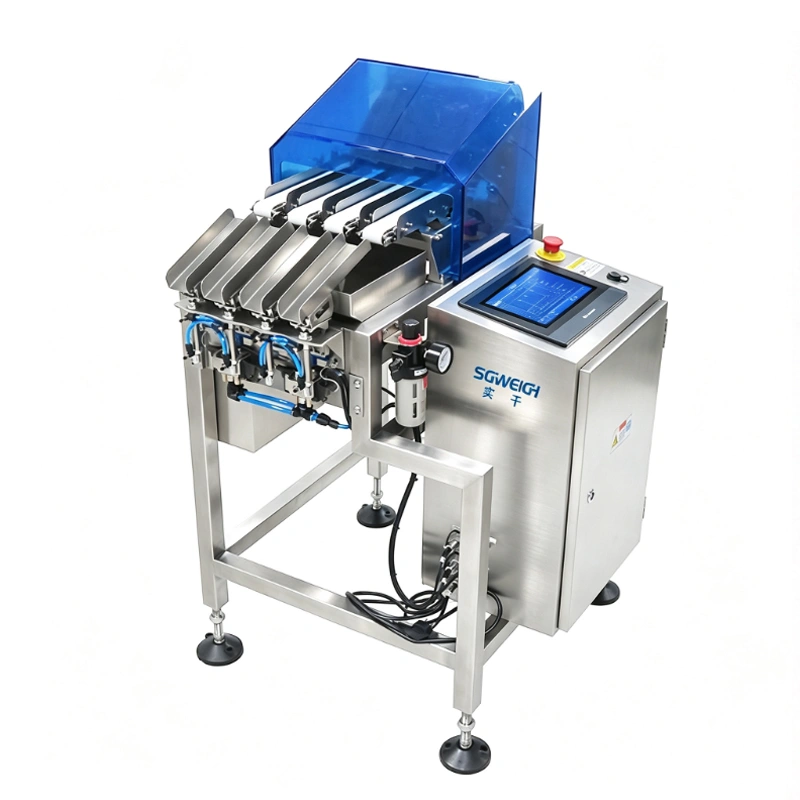

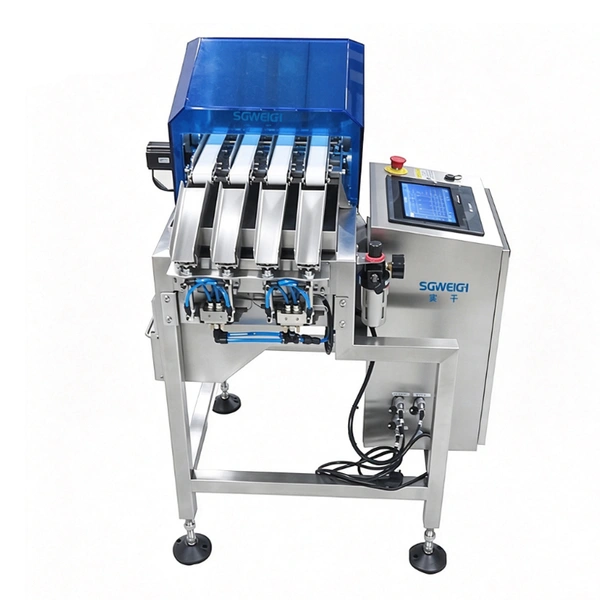

Strip packs multi-lane checkweigher for pharmaceutical photos
1. High-Speed Operation: Capable of processing hundreds or even thousands of products per minute across multiple lanes, maximizing efficiency for high-volume production.
2. Independent Lane Control: Each lane is controlled independently, allowing for unique weight thresholds and settings per lane. This flexibility is highly advantageous when handling a variety of product types or packaging sizes simultaneously.
3. Modular Design: The modular architecture facilitates customization, maintenance, and cleaning. Components can be replaced or serviced without requiring a full system shutdown.
4. User-Friendly Interface: Equipped with an intuitive touchscreen or HMI (Human-Machine Interface), enabling operators to easily configure settings, monitor performance, and adjust parameters in real time.
5. Data Collection and Analysis: Advanced data management capabilities allow for the recording, storage, and analysis of weight data, supporting quality control, reporting, and process optimization.
6. Customizable Rejection Systems: A range of rejection mechanisms—such as air jets, pushers, or diverters—is available and can be tailored to specific product types and packaging materials.
Model:SG-4X
Weighing range:1-50g
Minimum scale:0.01g
Weighing speed:The single-lane speed can reach up to 70 pcs/min (depending on the length of the product)
Restrictions of product:L:180 W:40 H:2-20(mm)
Operation way:Touch screen
Operation screen:12inch screen
Material:Stainless steel（SUS304）
Power supply:220V 50-60HZ
Power:About 200W
Weight:About160KG

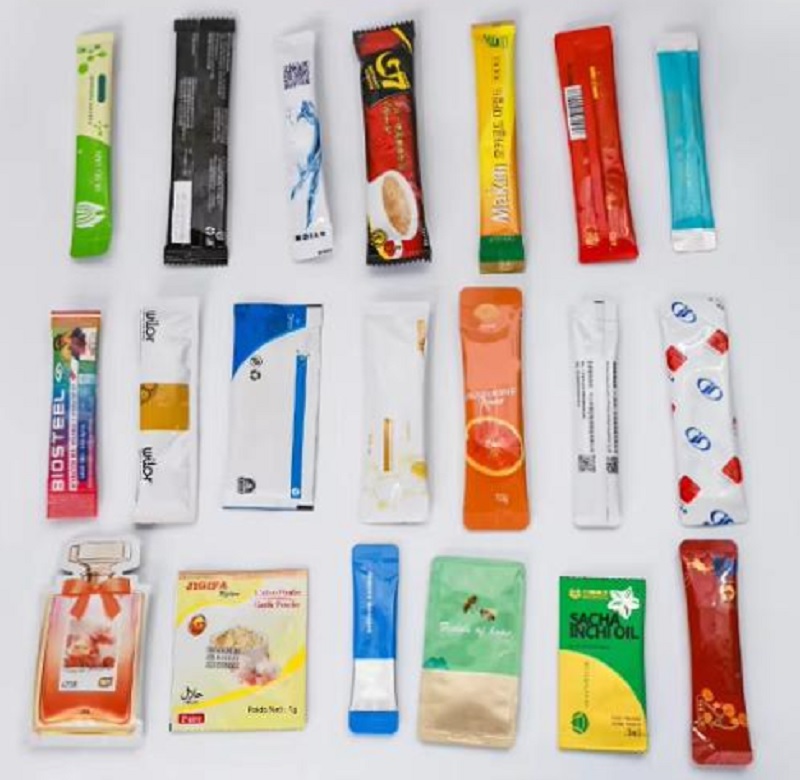

This strip packs multi-lane checkweigher for pharmaceutical is designed for industries including food, beverage, pharmaceuticals, cosmetics, and personal care. It delivers fast, stable, and reliable performance for continuous liquid packaging operations—ideal for items such as sauce pouches, flexible beverage pouches, liquid pharmaceutical packaging, and cosmetic sample sachets.

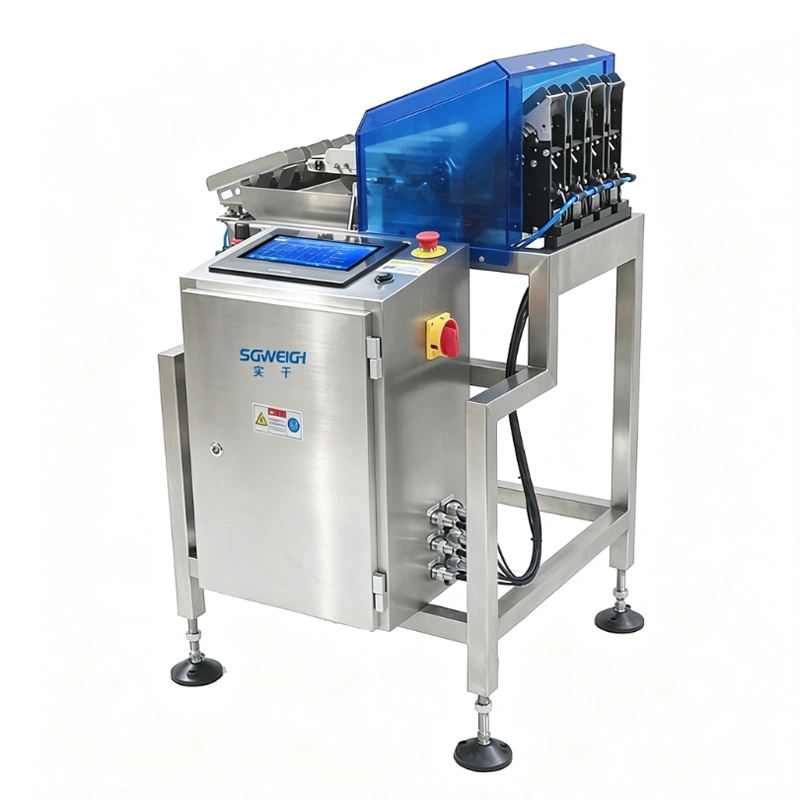

Strip Packs Multi-Lane Checkweigher for Pharmaceutical Online Checkweighing System

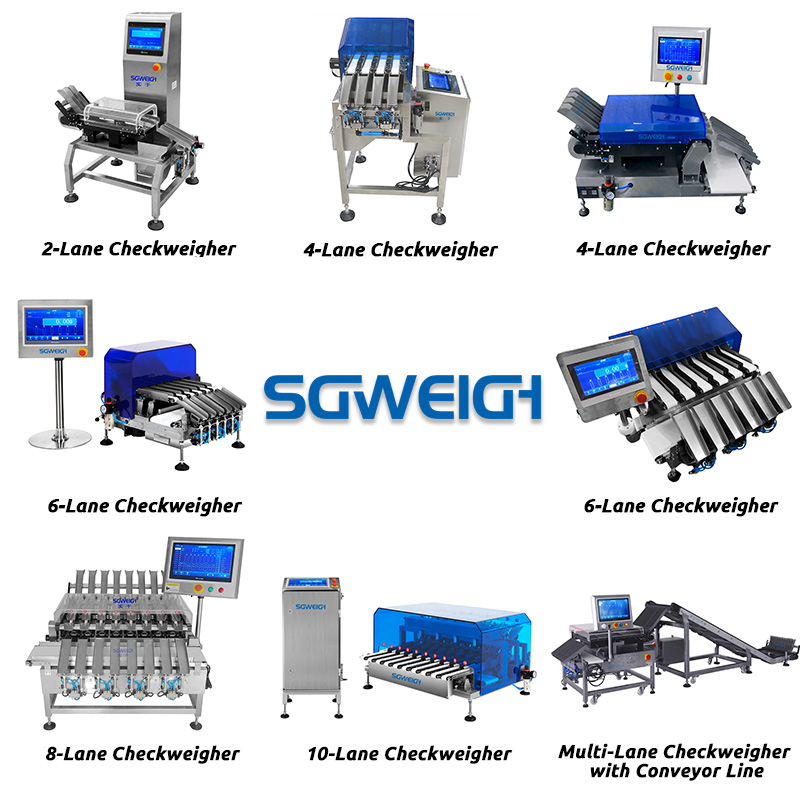

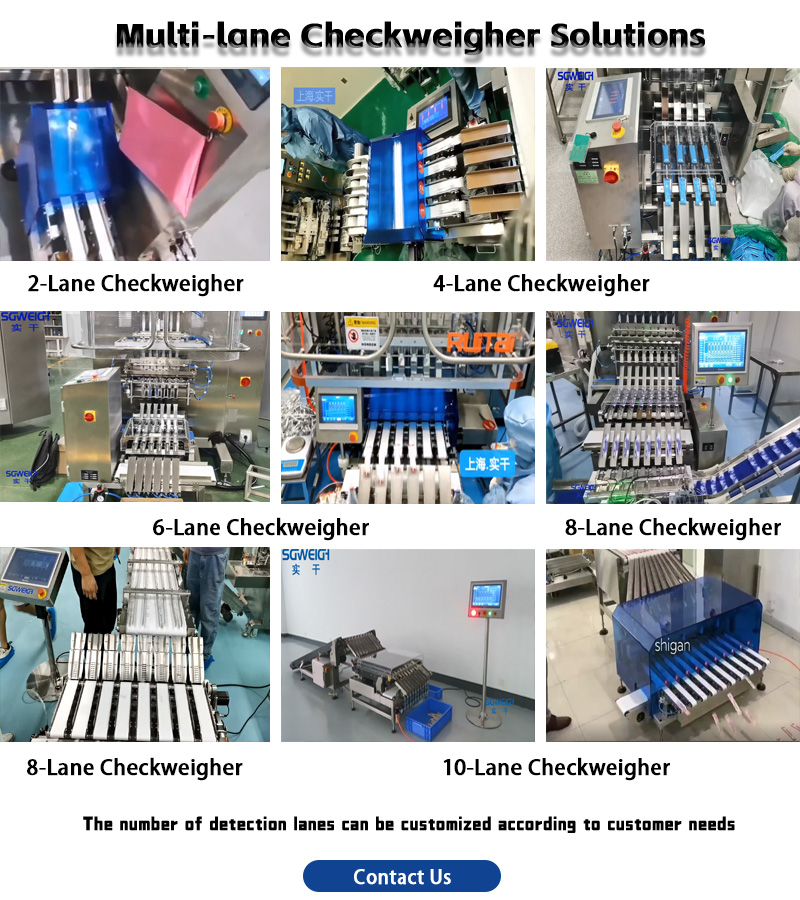

The specifications shown are for a standard 4-lane checkweigher. We also offer customizable multi-lane configurations—such as 2-12 lanes—and our team of technical experts is ready to provide a tailored multi-lane checkweighing solution for your needs. Please contact us for further details!

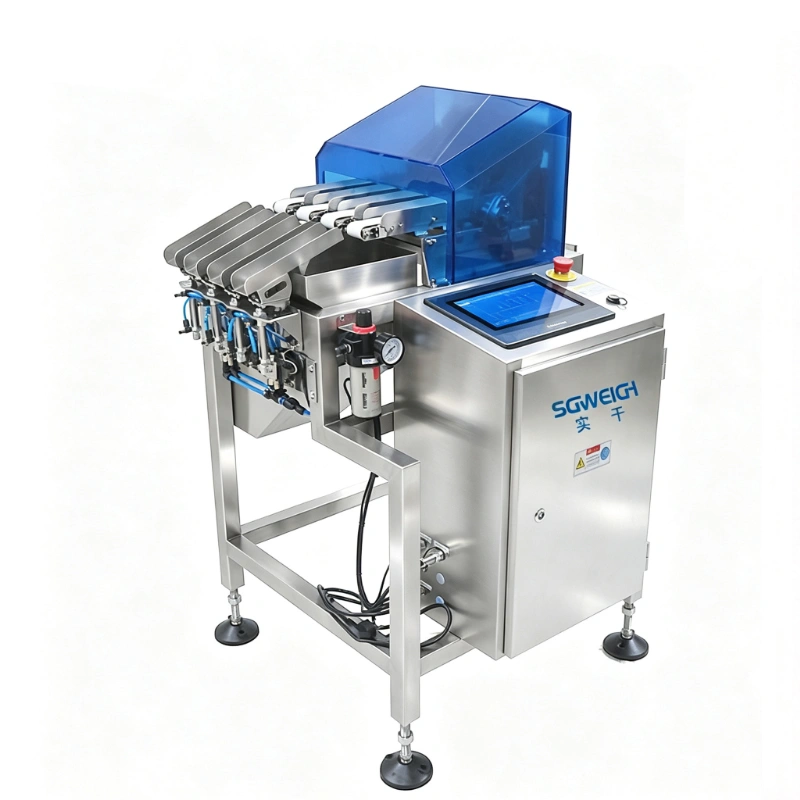

Strip Packs Multi-Lane Checkweigher for Pharmaceutical Online Checkweighing System
-This fumigation certification for wood packaging for overseas transport
-On internal plastic film parcels to protect goods from salt, wind or damage
-Olot clause: EXWORK, FOB, C & F, CIF sea transportation or air transport clauses
1. Replacement within seven days, warranty within one year, and lifetime maintenance. Before the products are sold, we will conduct strict inspections, and the products you sign for have no quality problems.
2. All products provided to customers are manufactured by the original factory and come with factory-issued accessories.
3. During the warranty period, our company will repair any damaged parts due to quality reasons, and any damage to parts outside the warranty period. The cost of the provided accessories will be charged only. If the equipment is damaged due to human factors, the cost of the repaired or provided parts will be calculated.
