Plastic Round Tube High-speed Clamping Conveyer Stable Checkweigher
weight checker also called checkweigher, check weigher, check weight machine, check weighing machine, weight sorting machine, weight sorter, and etc,.
This series of high-speed round tube checkweighers is a new generation of intelligent weight testing equipment developed by digital intelligent technology, which realizes the full digitalization and intelligence of weighing testing technology, with good performance and simple operation, which greatly improves the production efficiency of enterprises. The clamping conveyer checkweigher can be installed in the middle of the production conveyor line to connect with the front and rear production conveyor lines, or at the end of the production line to connect with the production conveyor line to realize fully automated rejection of defective products. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

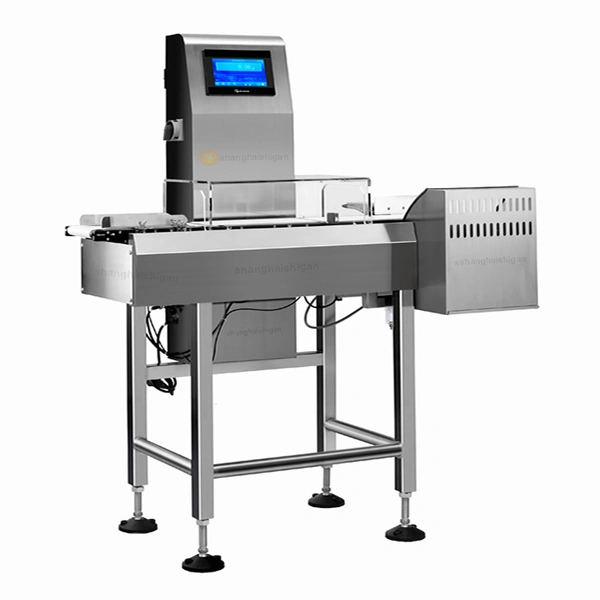

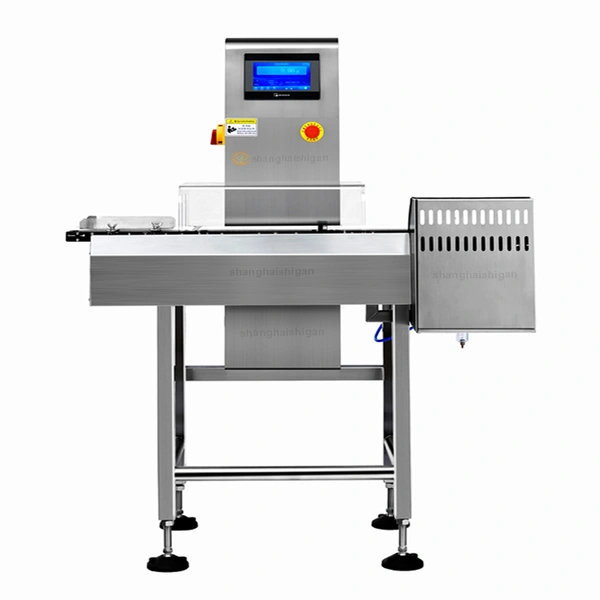

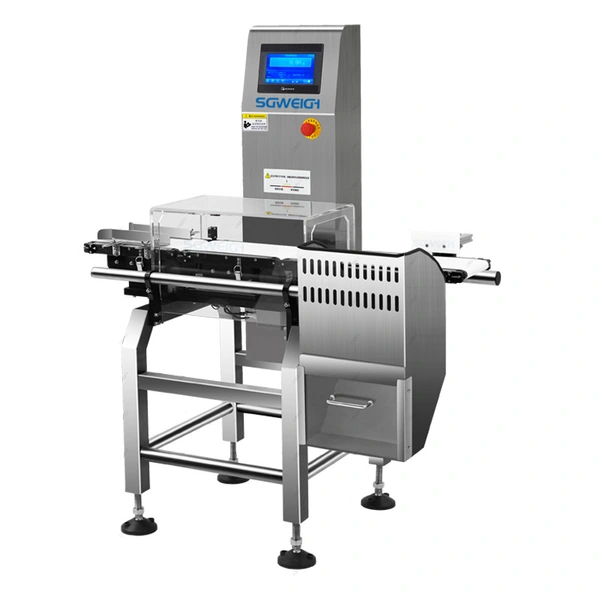

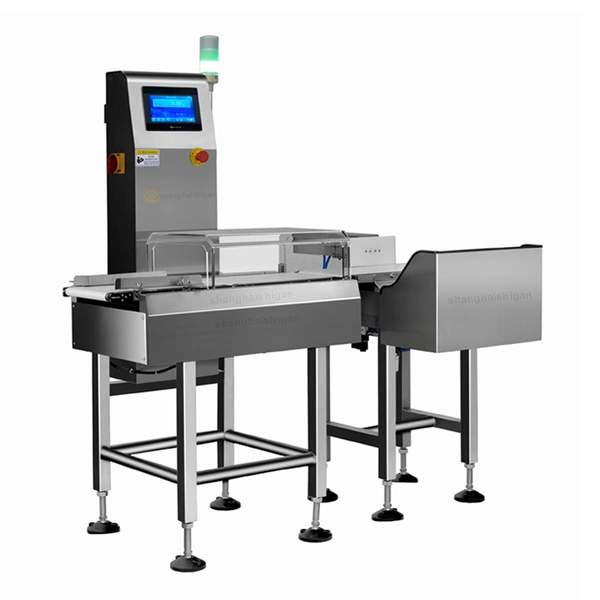

High-speed round tube checkweighers photos
1. Weighing and sorting technology: domestic sorting accuracy ±0.05g, sorting speed 300 times/min.
2. Accurate product sorting function: digital weighing unit and zero point automatic analysis, provide production trend feedback signals, adjust the packaging accuracy of upstream packaging machines, and reduce costs.
3. Powerful data traceability function: inquiry and printing of unqualified products, statistical charts such as histograms and yield charts can be generated during the sorting process, and a built-in data transmission system is convenient for production control.
4. Domestic market share: Whether it is the scope of industry application or customer groups, Dongguan Shanan has always maintained the industry and has comprehensive application experience and technology accumulation.
5. Comprehensive operation yield: Weighing detection and sorting action is flexible in the industry, stable operation, with power-off data storage and fault self-checking alarm function.
6. Humanized design and easy operation: 10-inch color touch screen operation interface, which can store 100 varieties, flexible sorting and switching, realizing non-stop switching products; modular design, conveyor belt buckle design, easy maintenance and cleaning.
7. The domestic shunting and rejecting device prevents the product from falling down and spilling materials during the sorting process, and ensures the integrity of the detected object.
8. In-depth development and customization, supporting integration capabilities: various applicable solutions can be customized to meet the requirements of different products and different environments, and they can be connected to metal detectors, packaging machines and other equipment.
Type SG-1X
Weighing Range 1-50g
Limited of product L: 180 W: 40 H: 2-20mm
Accuracy ±0.01g Depends on product
Division Scale 0.01g
Max Speed 70 pcs/min
Belt Width 100mm
Machine Weight 50kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
There is no identical production line, and there is no clamping conveyer checkweigher scheme applicable to all production lines. In order to meet the needs of different production lines, our professional engineers will rigorously evaluate factors such as production line characteristics, specifications, and environment, and tailor the most suitable clamping conveyer checkweigher scheme for you.
The scope of application of the high-speed round tube checkweigher: It is widely used in the food, medicine, and chemical industries to measure the weight of items on the production line.
Shanghai Shigan Industrial Co., Ltd. is a modern enterprise located in Shanghai, China, engaged in mechanical design, research and development, manufacturing, and sales of various online checkweighers and metal detector machines for over 14 years. Our product positioning is to design first-class machines. We adhere to the marketing philosophy of "quality first, customer first" and the work philosophy of "honest service, continuous improvement". Our machines are renowned both domestically and internationally, selling well in Asia, Southeast Asia, the Middle East, Europe, Africa, South America, and other regions, receiving high praise from customers. Your satisfaction is our destination, and we eagerly hope to work and learn with you, becoming a strong support for your company.
Our main products:
Checkweigher for Food industry
Checkweigher for the pharmaceutical industry
Checkweigher for Cosmetics industry
Checkweigher for Daily Necessities
Checkweigher for Hardware fitting
Checkweigher with metal detector
Our transportation methods include diversification, and we can choose transportation methods based on customer needs, including sea, land, and air transportation. We are all supported.
In line with the business tenet of "providing customers with satisfactory products and services", Shanghai Shigan Industrial Co., Ltd. solemnly promises: while ensuring the advancement, reliability, and stability of the equipment, it will continue to improve the quality of service, from sale to After-sales delivery, commissioning and opening, equipment maintenance and management, technical services, user technical training, etc., ensure that customers can get good services and make customers satisfied and assured.
1. Ensure that the equipment packaging meets the requirements of moisture-proof, rain-proof, rust-proof, anti-corrosion and earthquake-proof, and the identification is clear and correct, so that the goods can be delivered to the site safely and in time.
2. High-quality and fast technical services
In order to better ensure the normal operation of the equipment, answer questions raised by users in a timely manner, and help users solve problems, the company's maintenance center and local maintenance outlets are responsible for opening, maintaining and technical consulting services in various places. In the maintenance center, a full-time engineer is responsible for providing customers with free technical consulting services at any time.
3. Free debugging and activation for users
The engineer is responsible for the training, installation, commissioning, opening and testing of the equipment.
