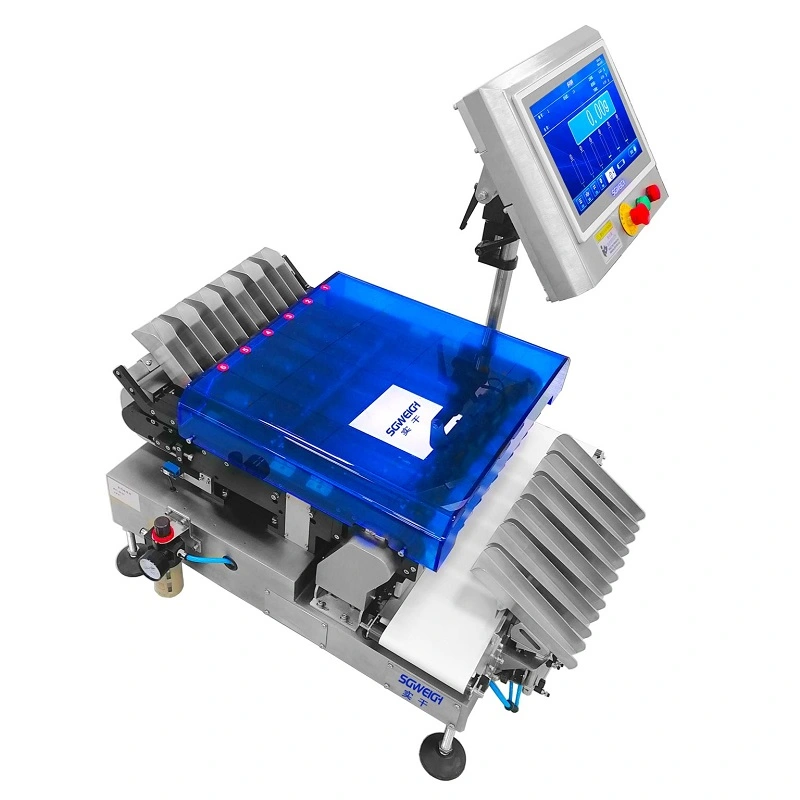

Pharmaceutical 6-Lane Stick Pack Checkweigher Auto Multi-Lane Checkweigher
This pharmaceutical 6-lane stick pack checkweigher features six independent lanes capable of simultaneously inspecting multiple stick packs, thereby achieving higher throughput without compromising weight control accuracy. The system weighs each product against preset target limits to identify and automatically reject non-compliant packs. Designed specifically for integration with multi-lane form-fill-seal equipment, pharmaceutical multi-lane checkweigher ensures a seamless inspection process following the forming and sealing of the stick packs. You are welcome to contact us at any time for quotation.

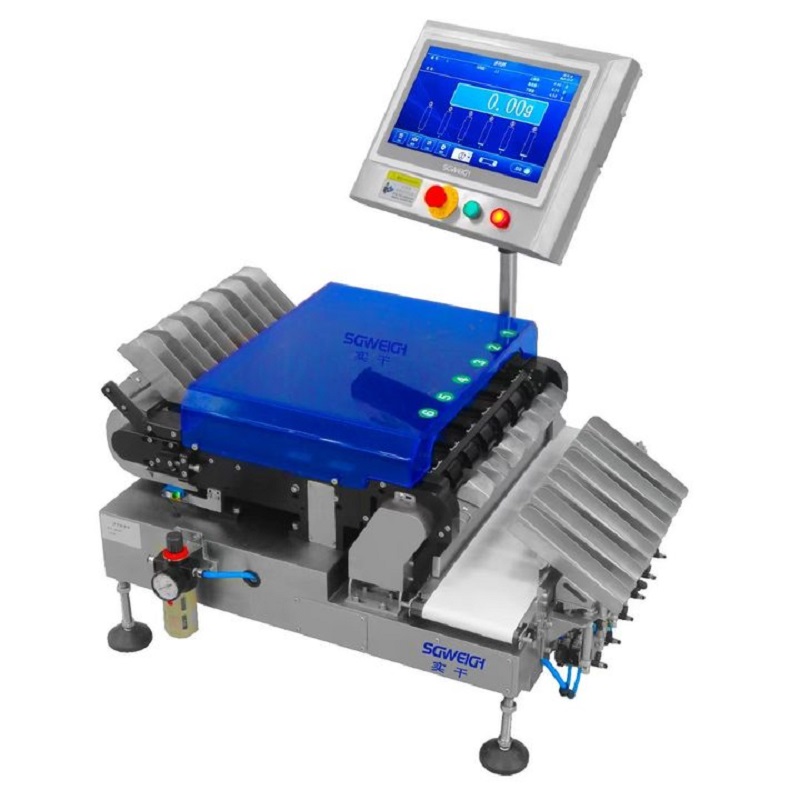

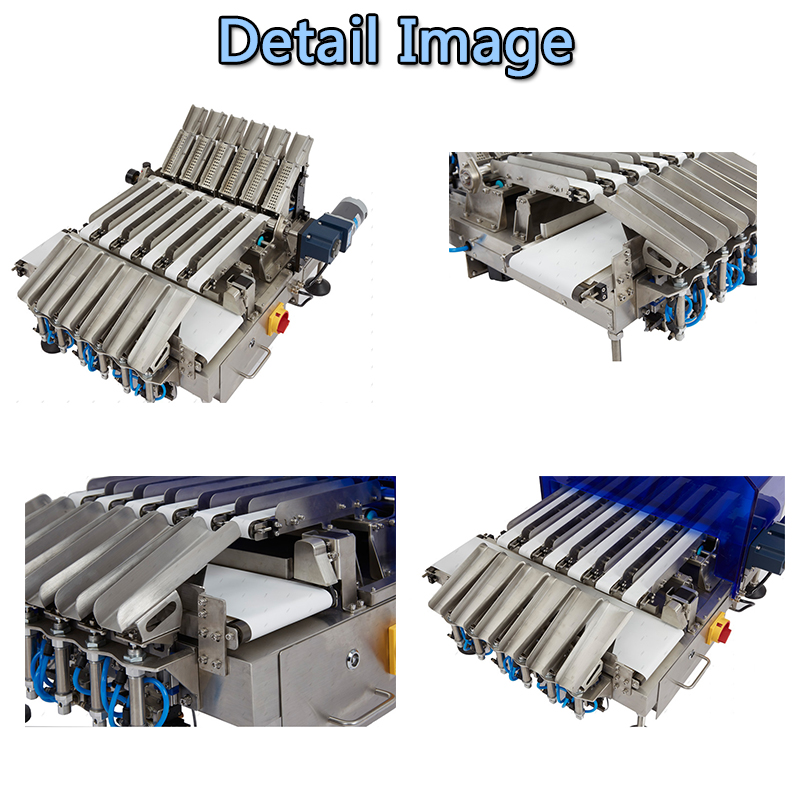

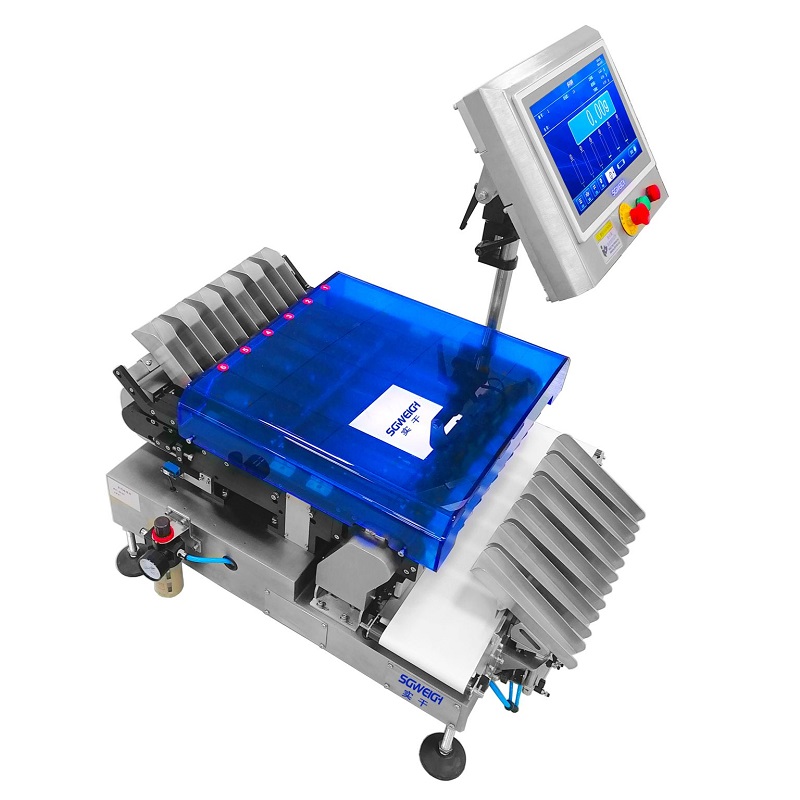

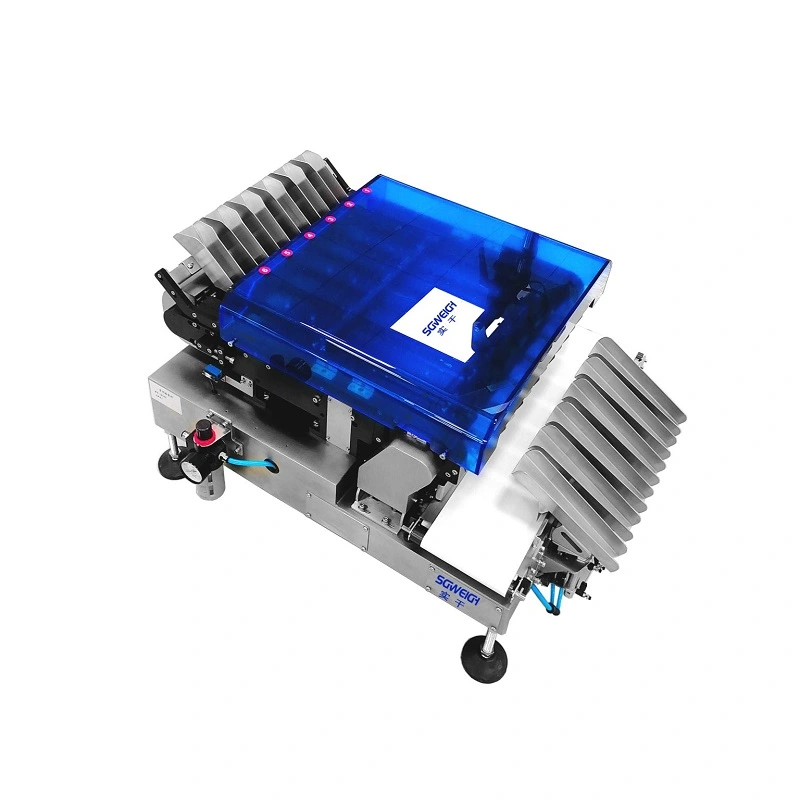

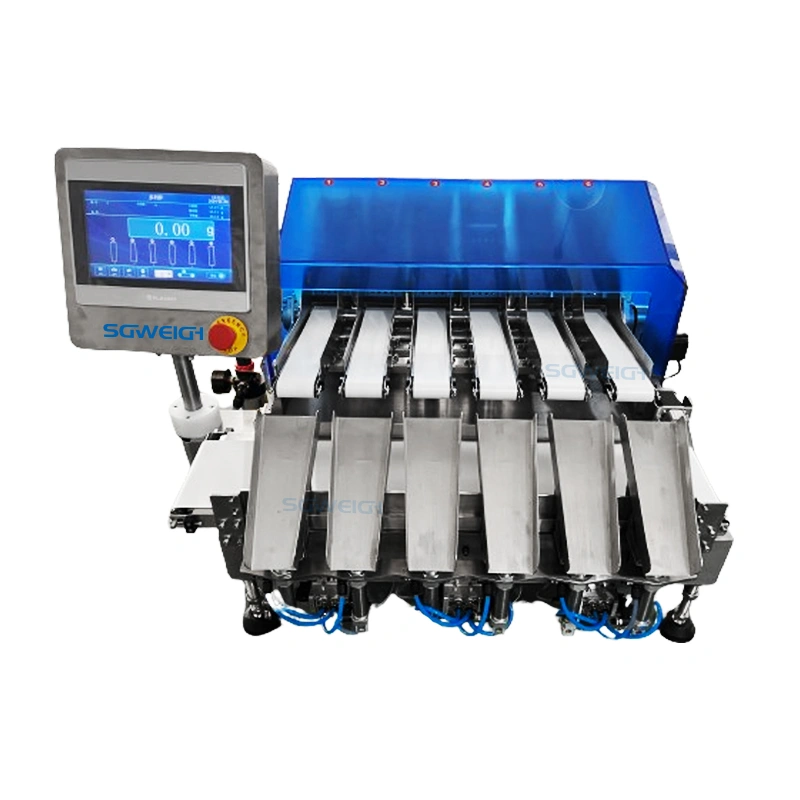

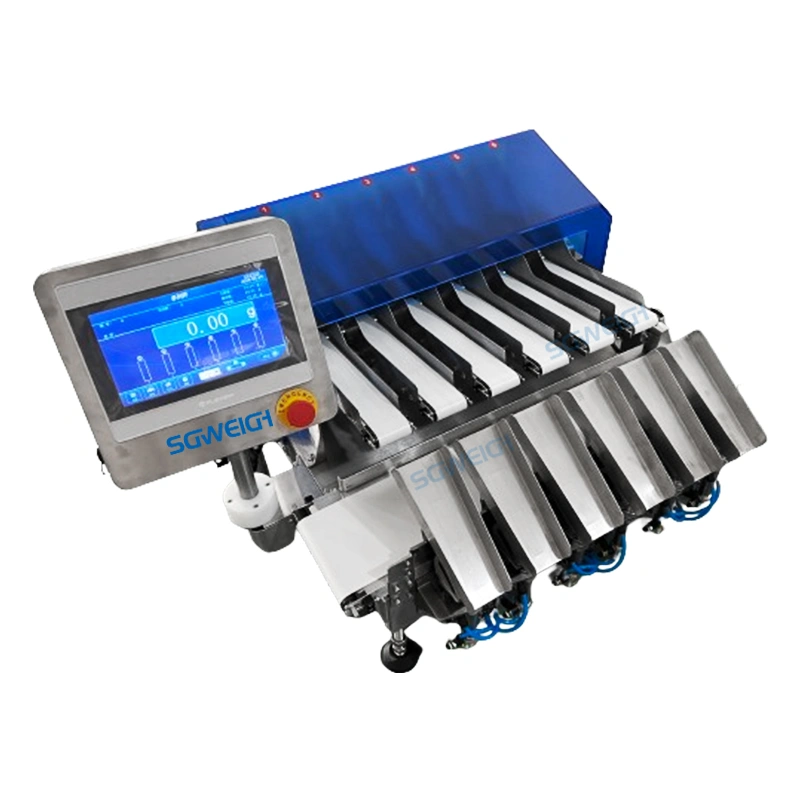

Stick liquid gel multi-lane checkweigher photos
1. Large color LCD touchscreen interface for simple operation and intuitive display.
2. Supports multi-language customization.
3. Equipped with automatic photoelectric detection for empty packs; adjustable conveyor speed.
4. Three-level password protection for parameter settings, restricting access to authorized personnel.
5. Product weighing data can be exported via USB.
6. Power-loss protection ensures parameters remain unchanged during unexpected power outages.
7. Customizable parameters for different products; stores 100 sets of inspection data for easy recall and switching.
8. Data statistics function: tracks total passed, underweight, and overweight products over a specific period.
9. Simple mechanical structure with snap-on conveyor belts for easy disassembly, cleaning, and maintenance; compliant with GMP and HACCP standards.
10. Automatic dynamic compensation and dynamic zero-point tracking (including tracking during continuous operation) ensure data reliability.
11. Statistical distribution of sorting/re-check results displayed via curves or histograms; window displays values from the last 10 re-checks.
12. Utilizes proprietary technology, an independently developed microcomputer system, and unique filtering algorithms to deliver ultra-high precision, reliability, and system stability.
Type SG-6X
Weighing Range 1-50g
Limited of product L: 180 W: 40 H: 2-20mm
Accuracy ±0.01g Depends on product
Division Scale 0.01g
Each Channel Speed 70 pcs/min
Belt Width 30mm
Machine Weight 120kg
Power Supply AC 110/220V ±10% 50HZ
Power 400W
Main Material SU304 stainless steel
Pharmaceutical 6-Lane Stick Pack Checkweigher Auto Multi-Lane Checkweigher

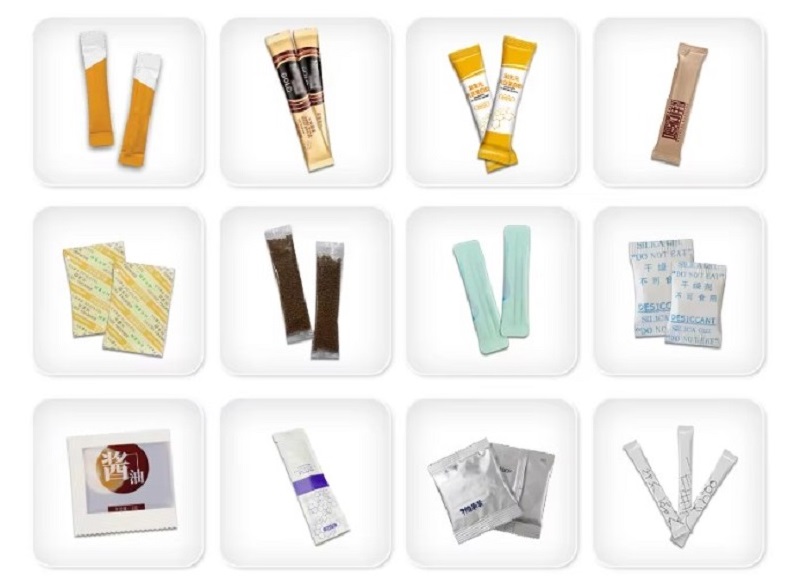

This multi-lane pharmaceutical checkweigher is ideal for applications involving pharmaceutical powders, granules, nutritional supplements, and other stick-pack products, offering an efficient solution for demanding automated packaging lines.

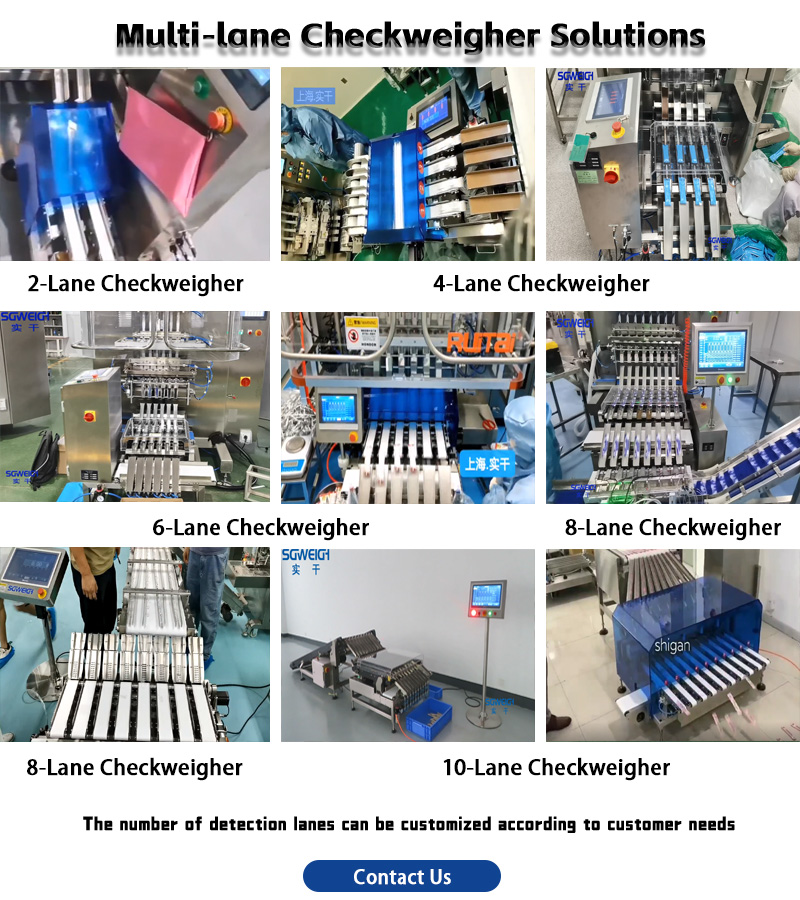

Most of our 6-lane stick pack checkweighers are customized to meet specific project requirements.
If possible, please provide details regarding your project—such as materials, weight range, speed, and bag dimensions.
We recommend contacting us prior to placing an order.
Pharmaceutical 6-Lane Stick Pack Checkweigher Auto Multi-Lane Checkweigher
Packing Detail:
Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail:
Shipped in 25 days after payment
1. Equipment Installation and Commissioning: The company provides detailed operation manuals and free operation training to ensure customers can use the equipment proficiently.
2. Technical Support: The company provides 24/7 technical support to solve problems encountered during use.
3. Spare Parts Supply: The company provides original parts, ensuring the quality and stability of the parts.
4. Quality Assurance: The company is responsible for the products sold, guaranteeing that the equipment quality and performance meet industry standards.
5. Warranty Policy: One-year warranty, lifetime maintenance, eliminating any worries for customers.
