Online Bottle Checkweigher with Clamping Conveying System Industrial Checkweigher

Description

Online Bottle Checkweigher with Clamping Conveying System Industrial Checkweigher

This online bottle checkweigher with clamping conveying system is designed for modern automated packaging production lines, combining stable clamping with smooth, high-speed conveying. Bottles pass through the system efficiently with consistent spacing, enabling continuous online inspection. The bottle industrial checkweigher's clamping and conveying system is manufactured with industrial-grade components, offering durability, ease of integration, and low maintenance costs. An intuitive control system allows for quick setup and product changeovers, minimizing downtime and operator error. You are welcome to contact us at any time for quotation.

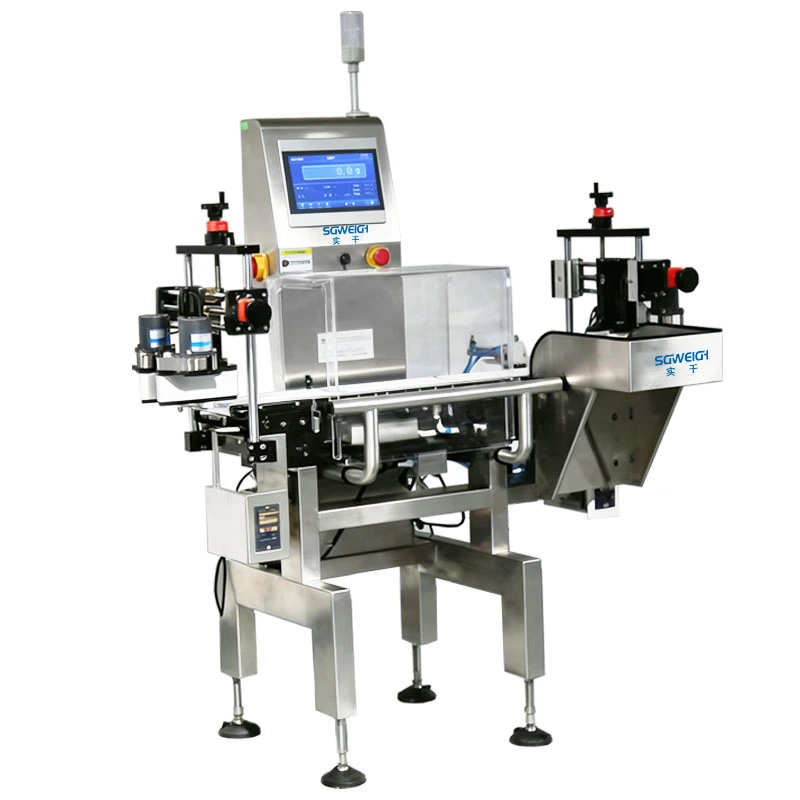

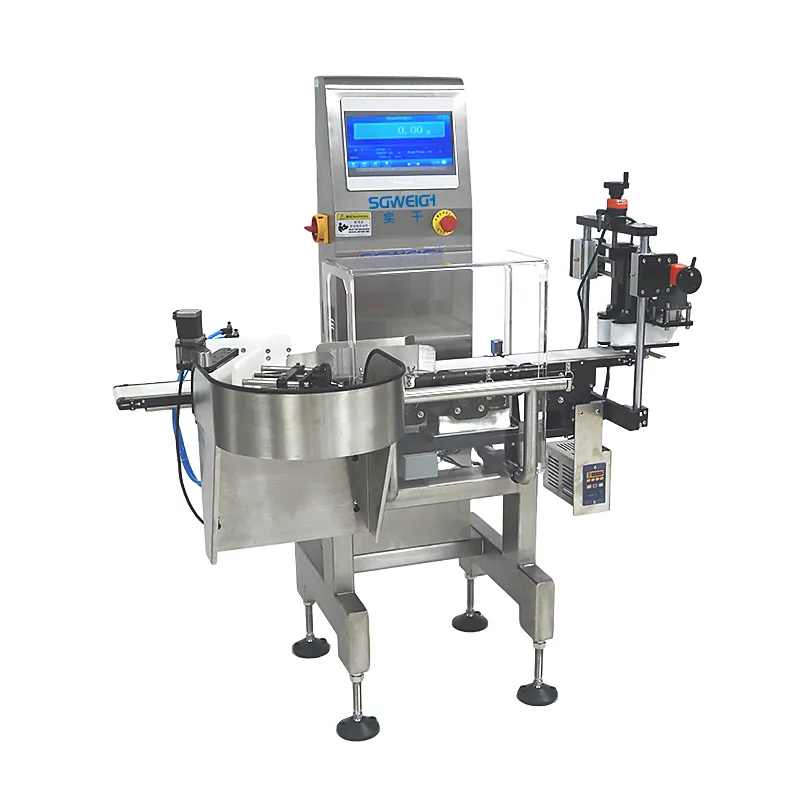

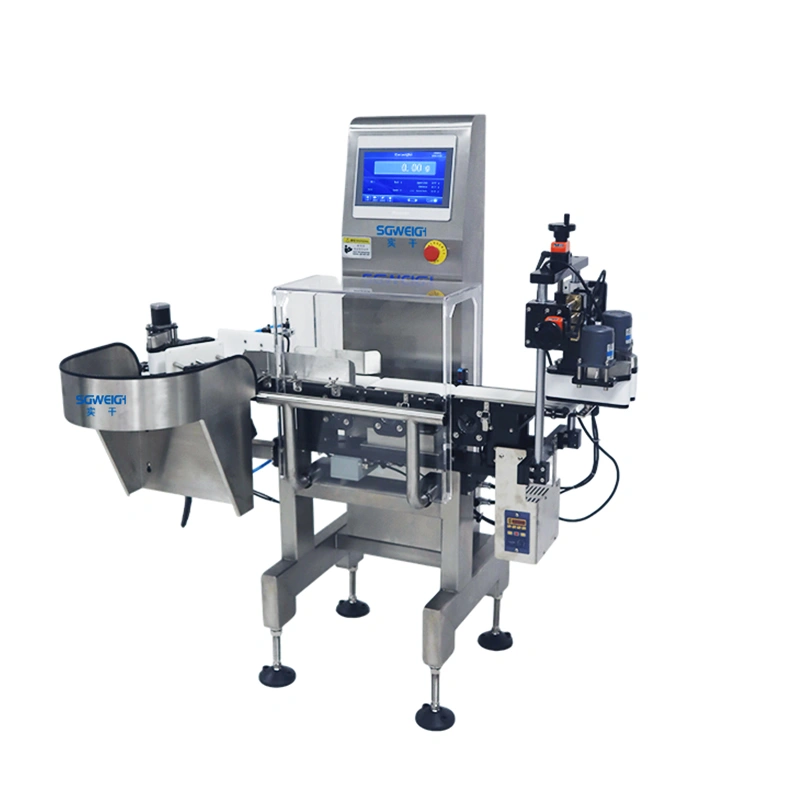

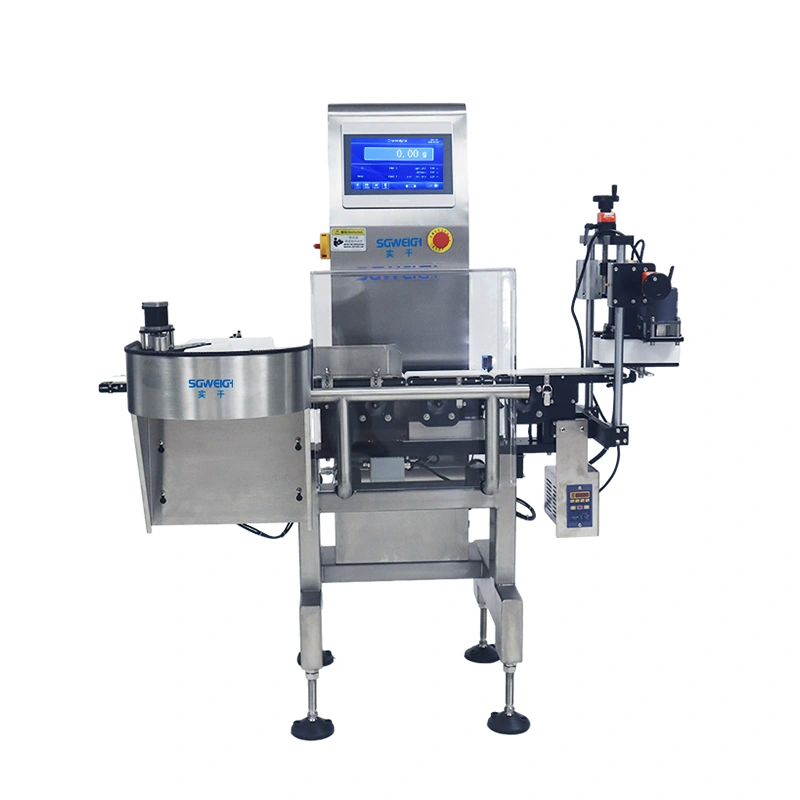

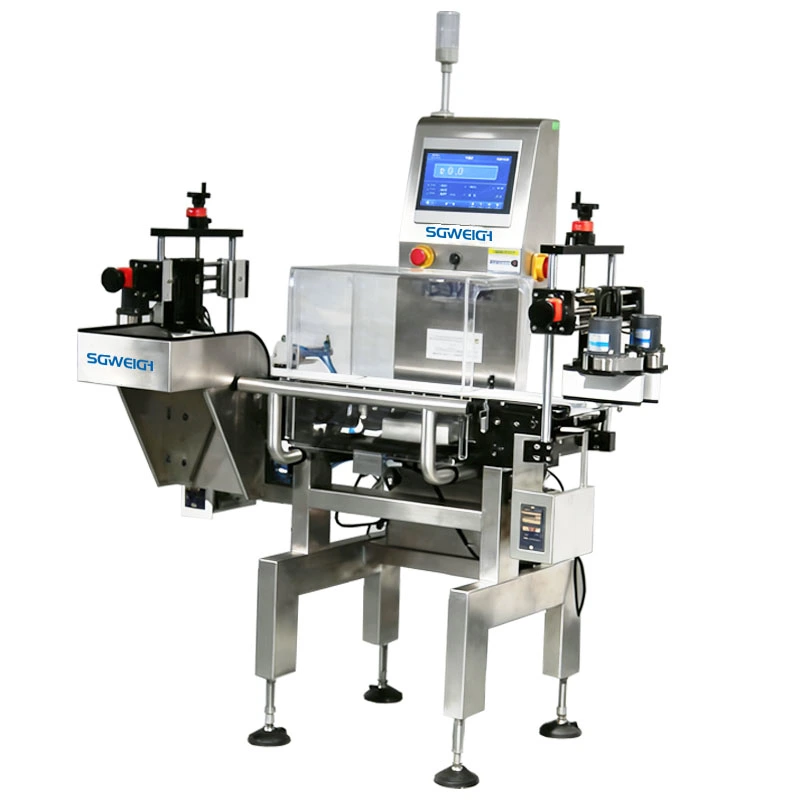

Online bottle checkweigher with clamping conveying system photos

Online Bottle Checkweigher with Clamping Conveying System

Bottle Checkweigher with Clamping Conveyor

Online Bottle Industrial Checkweigher

1. Easy Integration: Highly adjustable, modular design

2. Robust and Durable Construction: 304 Stainless Steel

3. Easy to Use: User-friendly touchscreen operating system with user password protection

4. Easy to Clean: Removable straps for easy cleaning and setup.

5. Variable Speed: Speed configurable according to application

6. High Speed and Accuracy: Equipped with advanced sensors and load cells, featuring an ultra-fast processor for excellent accuracy and speed

7. Zero Tracking: Manual and automatic calibration for enhanced accuracy

8. Reporting and Data Export: Built-in real-time reporting, exportable to Excel files, and storage of one year's production data on a USB flash drive.

Online Bottle Checkweigher with Clamping Conveying System Industrial Checkweigher

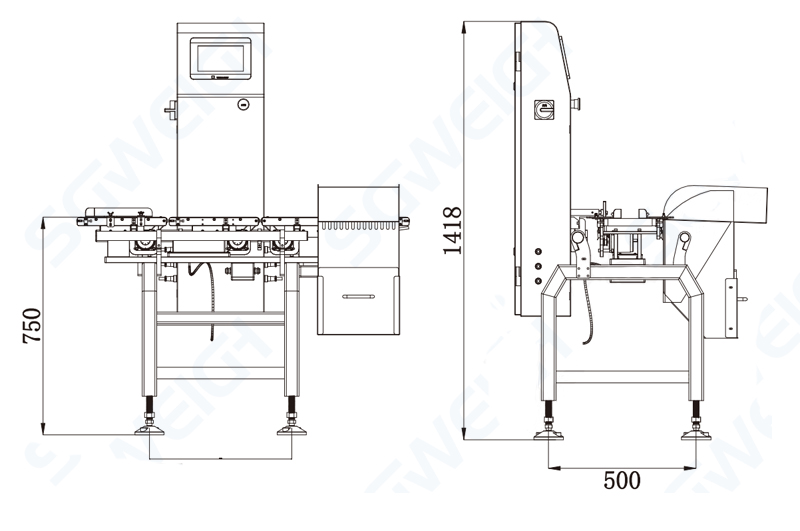

Clamping conveyor checkweigher details.jpg

Type SG-150

Weighing Range 3-500g

Limited of product L: 200 W:150 H: 3-200mm

Accuracy ±0.1g Depends on product

Division Scale 0.1g

Belt Speed 0- 60 m/min

Max Speed 150 pcs/min

Belt Width 150mm

Machine Weight 80kg

Power Supply AC 110/220V ±10% 50HZ

Power 100W

Main Material SU304 stainless steel


1. Flexible Online Bottle Checkweigher Solutions:

Customized to meet specific requirements based on factors such as production line space, speed, detection accuracy, and weight.

2. Extensive Peripheral Interfaces:

Configurable with RS-485 data communication, PLC programming nodes, and printer output, providing real-time data to production management systems for remote control, analysis, monitoring, and valuable traceability information.

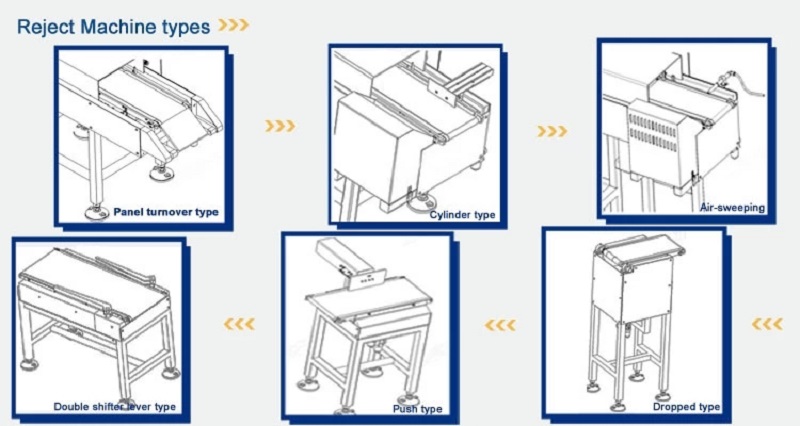

3. High-Efficiency Rejection Devices:

Equipped with various rejection devices including boom-type, air-blowing, flap-type, and lifting belt-type.

Online bottle checkweigher with clamping conveying system is ideal for the beverage, pharmaceutical, and liquid consumer goods industries, supporting high-volume production while ensuring each bottle meets quality and regulatory standards.

Online Bottle Checkweigher with Clamping Conveying System Industrial Checkweigher

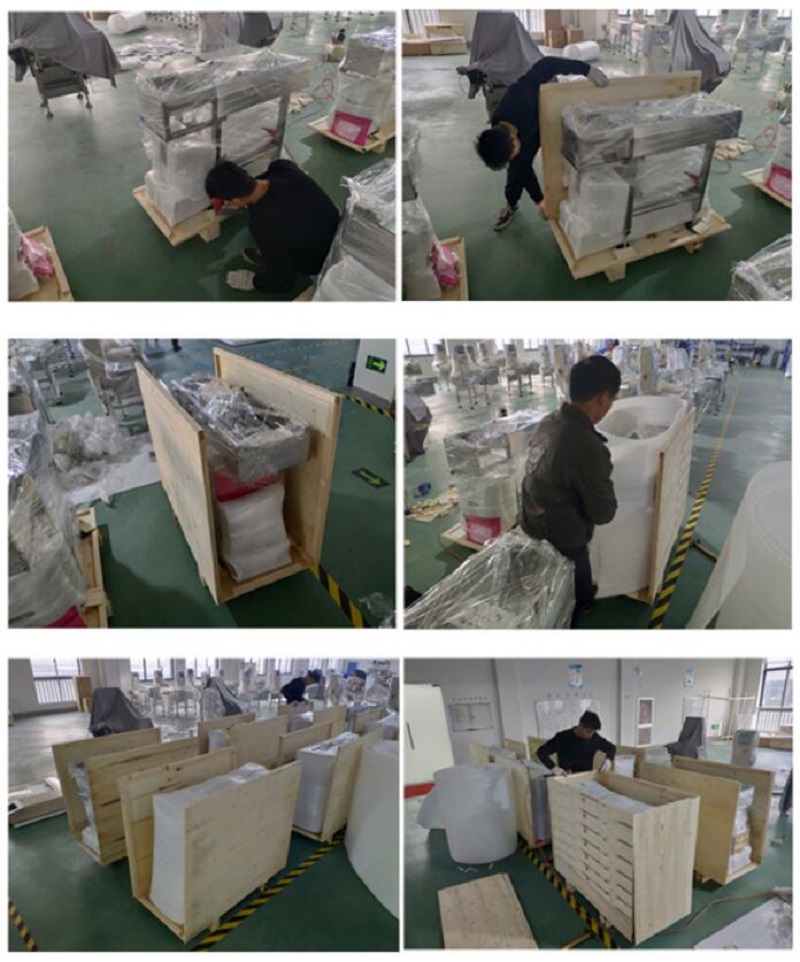

Usually, the packaging is a wooden crate (dimensions: length * width * height). For exports to European countries, the crate will be fumigated. If the container is too tight, we will use polyethylene film or package according to the customer's specific requirements.


Training Service:

Manuals are provided. We will train your engineers to install and use our machines.

Troubleshooting Service:

In the event of a problem, a solution will be provided within 24 hours.

Warranty Period:

One-year warranty. For machines under warranty, if a spare part breaks, we will ship it to you free of charge and cover the courier fee. For machines beyond the warranty period, we will provide it at cost.
