Description

Industrial Box Checkweigher for High-Speed Lines Dynamic Checkweigher Conveyor

This industrial box checkweigher for high-speed lines operates with exceptional accuracy, detecting minute deviations in product weight even while maintaining stable production volumes. The advanced weighing sensors and real-time data processing of dynamic box checkweigher conveyor provide instant results, preventing underweight or overweight packages from leaving the production line. An intuitive touchscreen interface simplifies operation, enabling rapid product changeovers and easy data monitoring. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us for a quote.

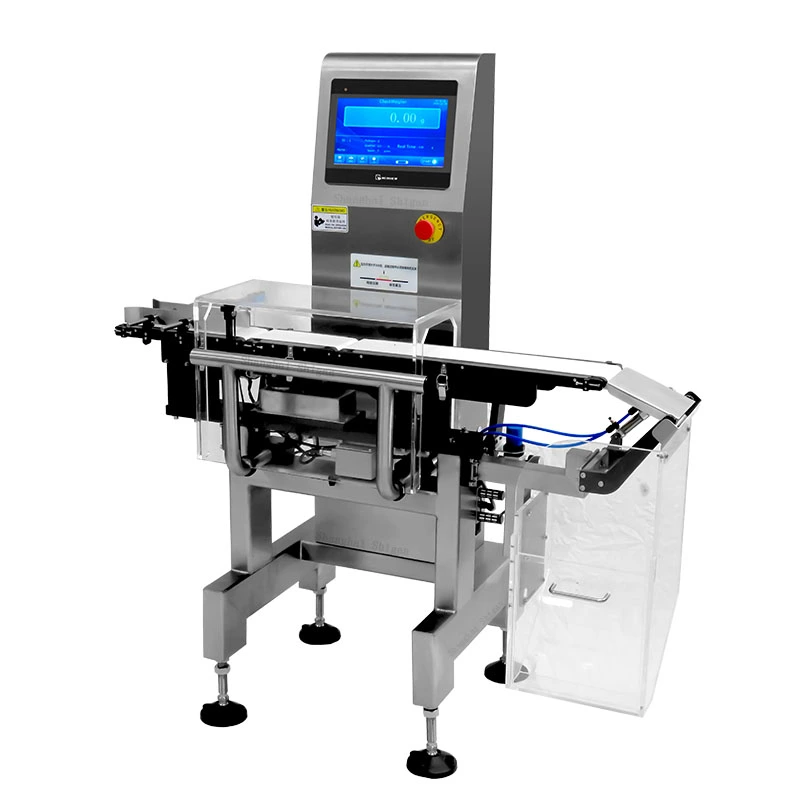

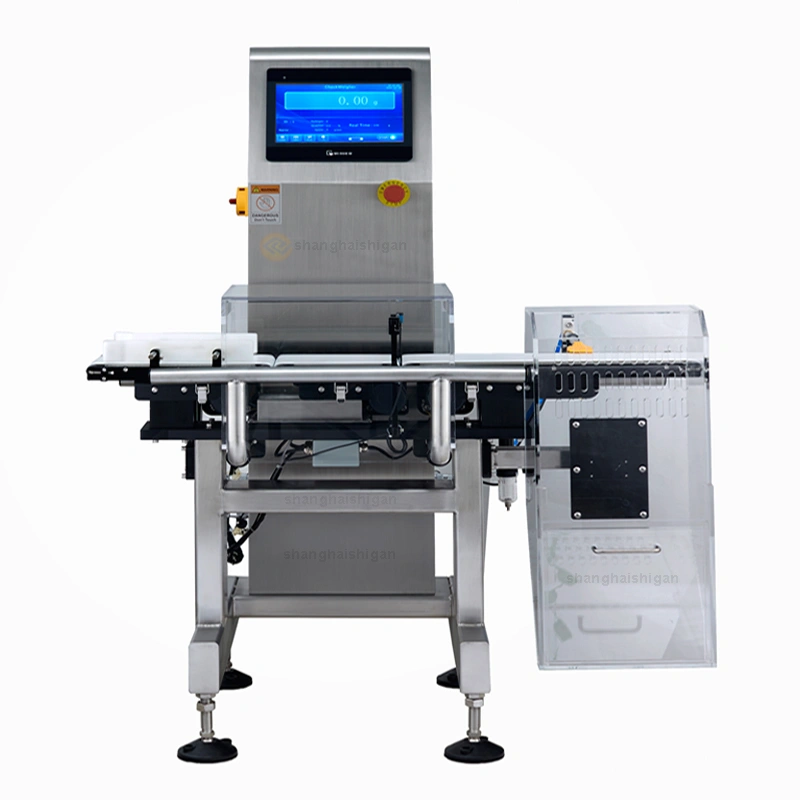

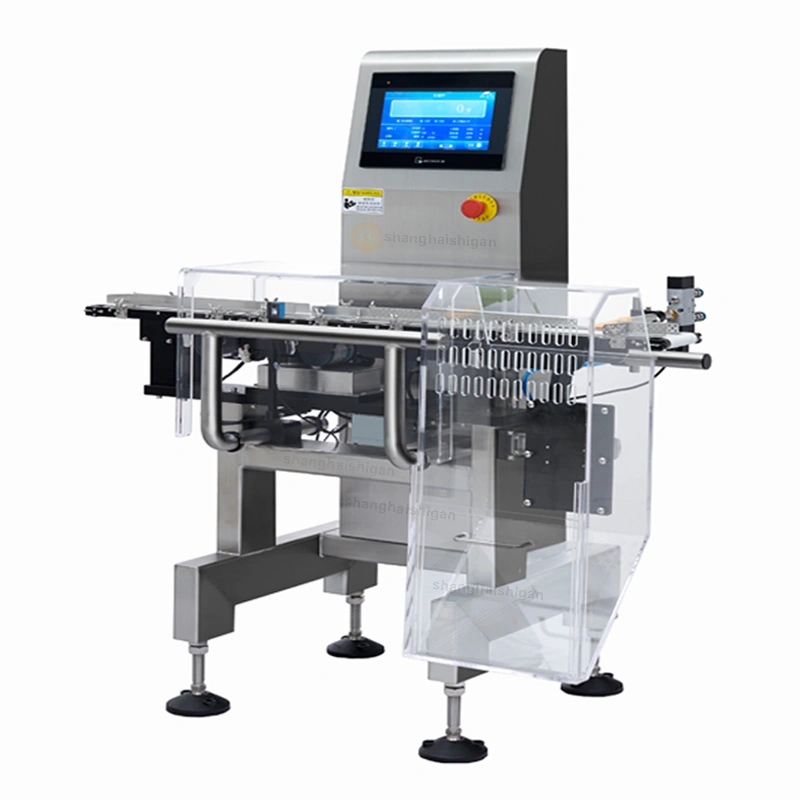

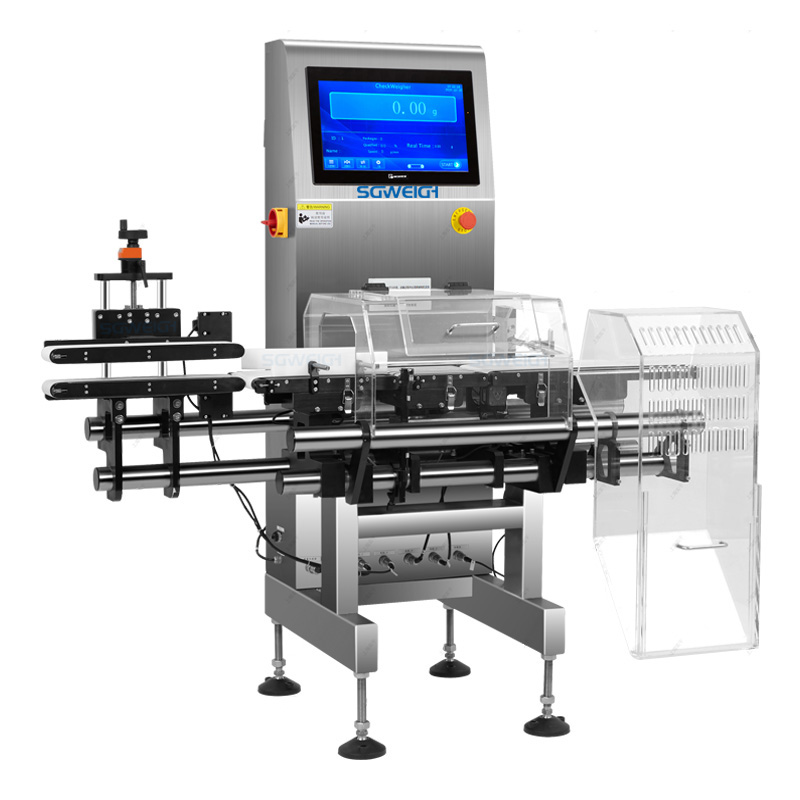

Industrial box checkweigher for high-speed lines photos

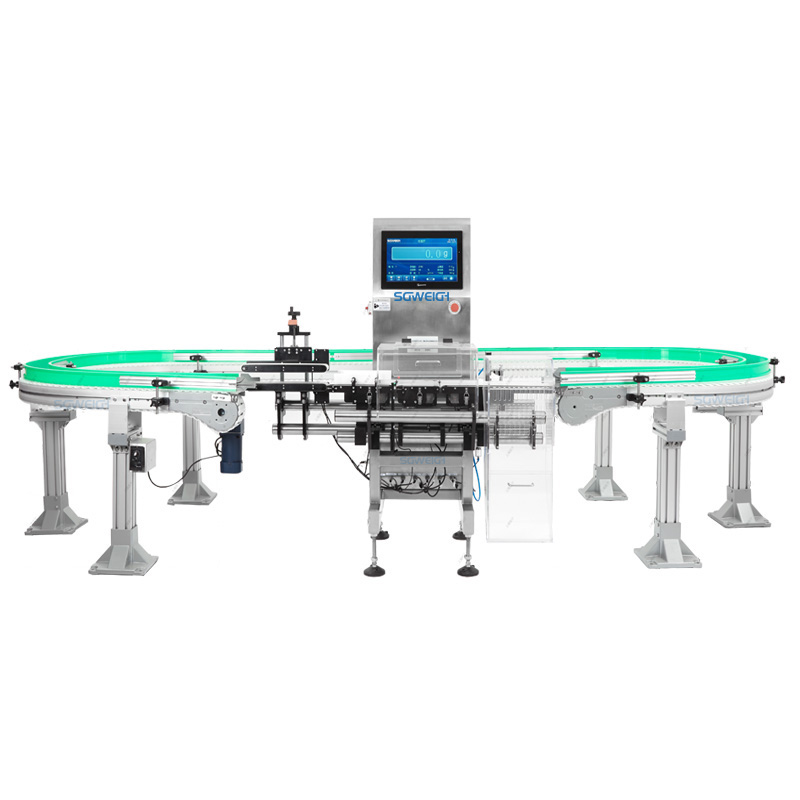

Industrial Box Checkweigher for High-Speed Lines

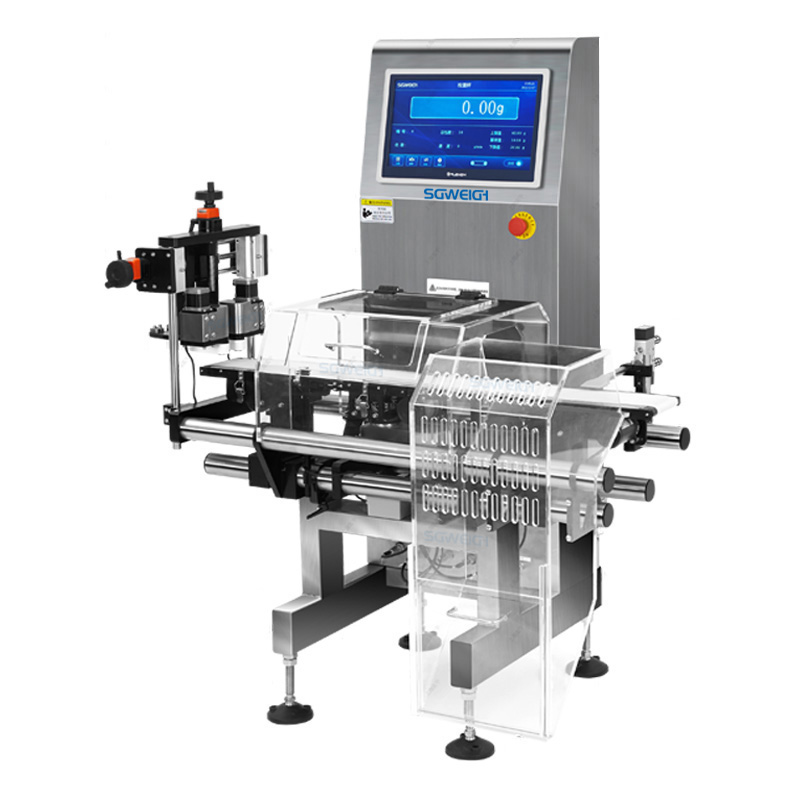

Box Dynamic Checkweigher Conveyor Box High-Speed Lines Checkweigher

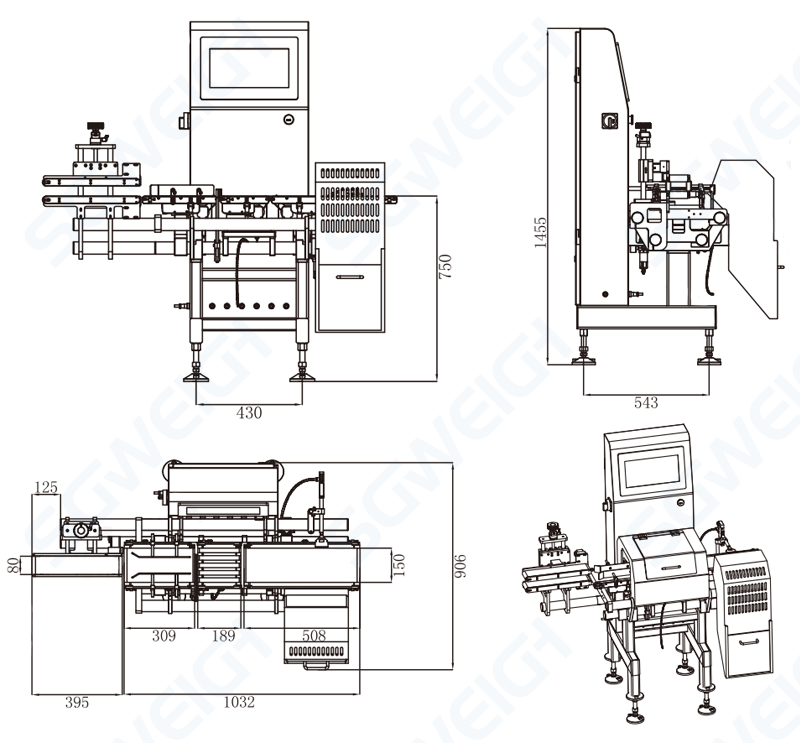

Type SG-150HH

Weighing Range 3-500g

Limited of product L: 100 W:150 H: 2-150mm

Accuracy ±0.1g Depends on product

Division Scale 0.1g

Belt Speed 0-110 m/min

Max Speed 450 pcs/min

Belt Width 150mm

Machine Weight 140kg

Power Supply 50HZ

Power 200W

Main Material SU304 stainless steel


1. Employs advanced dynamic digital processing technology, a high-performance industrial computer, and a real-time operating system: ensuring real-time, high-speed processing of large amounts of data.

2. High-speed AD processing module with a unique high-speed, high-precision filter. Automatic tracking of dynamic and static zero points.

3. 8-inch color high-brightness touchscreen industrial computer with clear display. User-friendly interface for simple operation.

4. Touchscreen operation allows direct setting of various parameters; up to 100 product parameters can be preset for direct operator access.

5. Three-level password protection to prevent product information leakage.

6. Power-off protection function. Parameters remain unchanged even during unexpected power outages.

7. Data statistics function. Displays the total number of products passing through and their total weight within a certain period; total number of underweight and overweight products.

8. Data interface: RS232/485/USB interface, supporting data output and upload.

Industrial Box Checkweigher for High-Speed Lines Dynamic Checkweigher Conveyor

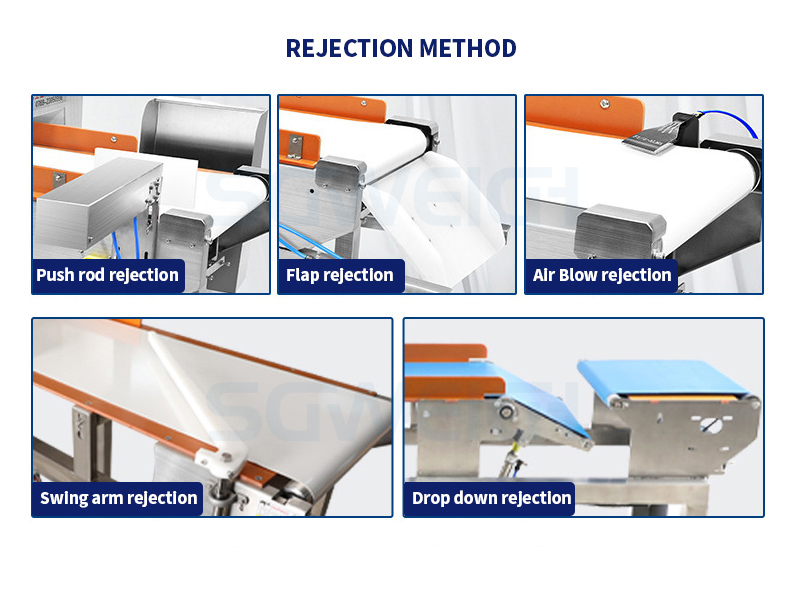

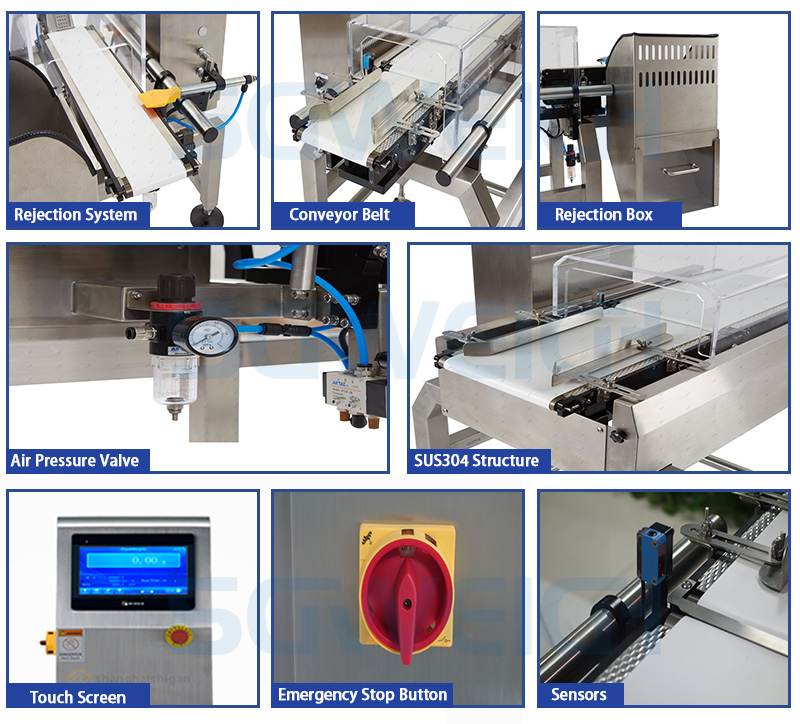

checkweigher details.jpg

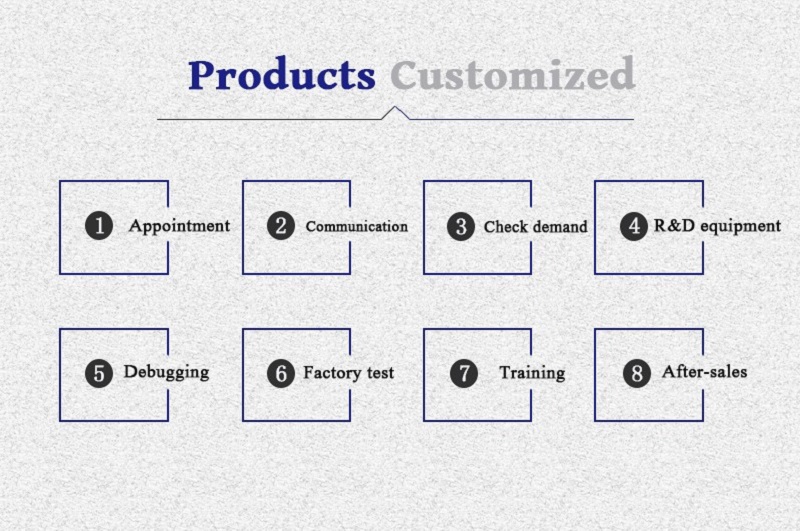

Customized Process.jpg

If the displayed industrial box checkweigher for high-speed lines specifications do not meet your requirements, please contact us via inquiry or chat to meet your customization needs.

Customization options include:

1. Custom-made tabletop.

2. Custom-made height.

3. Custom-made material.

4. Wireless connection between the gauge and roller.

5. Gauge with built-in USB storage function.

6. Gauge capable of transmitting weight data via Bluetooth.

7. Gauge with optional automated quantitative control output function.

8. External printer functionality.

9. Built-in upper and lower limit alarm lights.

10. External barcode scanner functionality.

11. Other requirements.

Industrial box checkweigher for high-speed lines are suitable for checking whether the weight of individual products is up to standard and whether there are any omissions during the packaging process. They are widely used in many industries, including pharmaceuticals, food, beverages, electronics, health products, daily chemicals, light industry, and agricultural and sideline products.

10002 (3).jpg

1. The inner packaging is plastic film, and the outer packaging is a wooden or plywood box.

2. The packaging is bare plastic film with only a plastic pallet.

3. We can provide fumigated packaging and certificates.

4. Shipping, training, express delivery, or according to customer requirements.

Industrial Box Checkweigher for High-Speed Lines Dynamic Checkweigher Conveyor

1. Warranty: Our packaging machines come with a 12-month warranty. Most parts are replaced free of charge under warranty (PLC, servo controller, servo motor, touch screen, cylinder).

2. After-sales Service: One-year warranty, lifetime maintenance.

3. Technical Support: We will provide technical consultation, drawings, specifications, customized solutions, and technical problem analysis before customers place an order.

4. Operation Training: We welcome customers' technicians to visit our factory to learn the operation process, take photos, and record videos.
