High Speed Checkweigher Machine for Food Canning Production Lines Weight Checker
This high speed checkweigher for food cans employs advanced sensor technology, balancing accuracy and speed. Its high-speed conveyor and intelligent sorting mechanism quickly detect and reject underweight or overweight products, providing stable and reliable measurement results even during peak production periods. This food canning production lines checkweigher features an intuitive control system and advanced reporting capabilities, accurately tracking weight trends and production performance. You are welcome to contact us at any time for quotation.

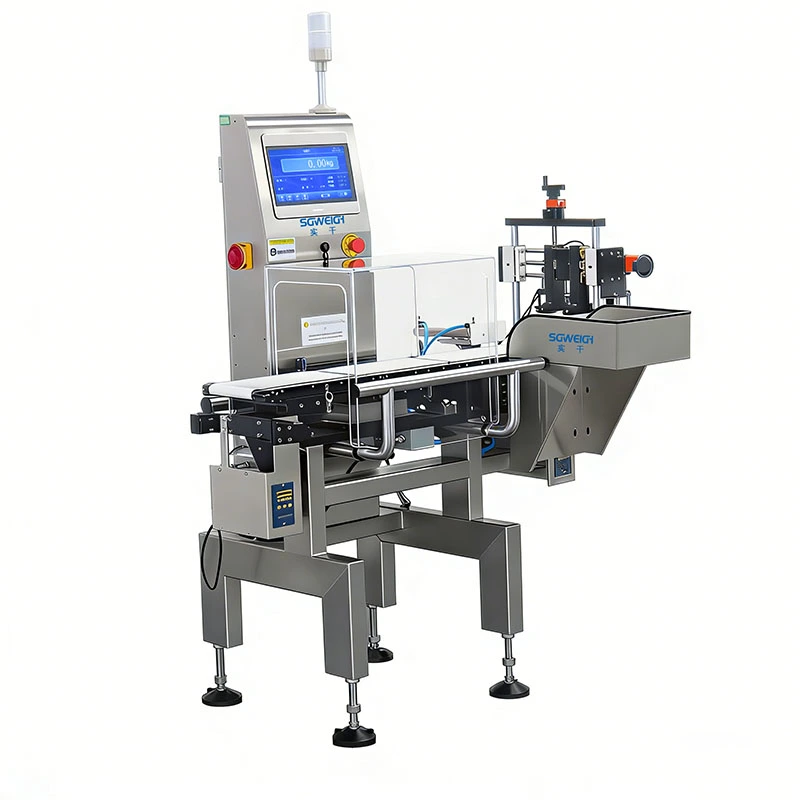

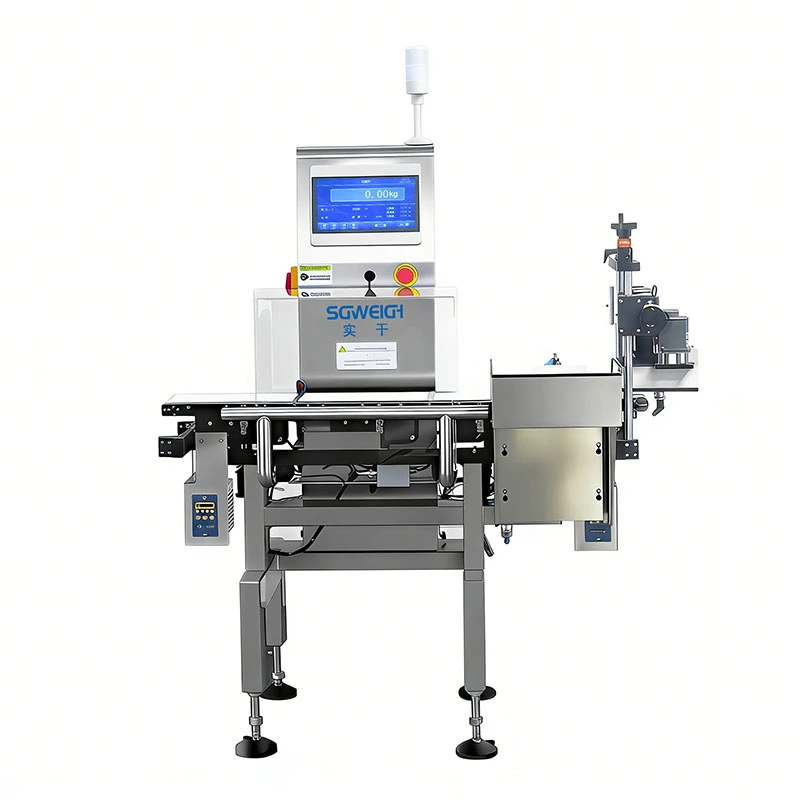

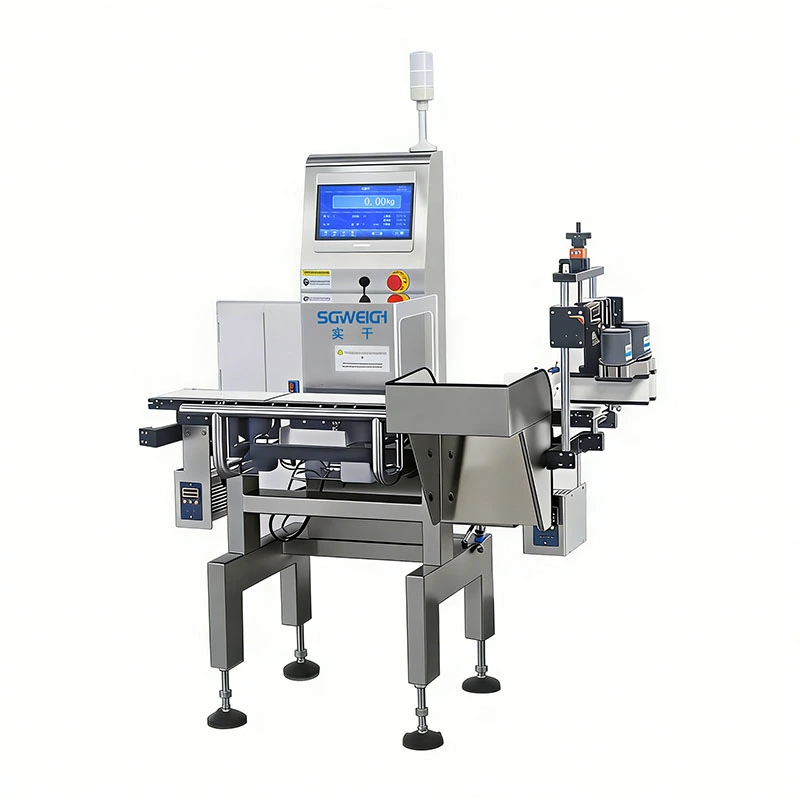

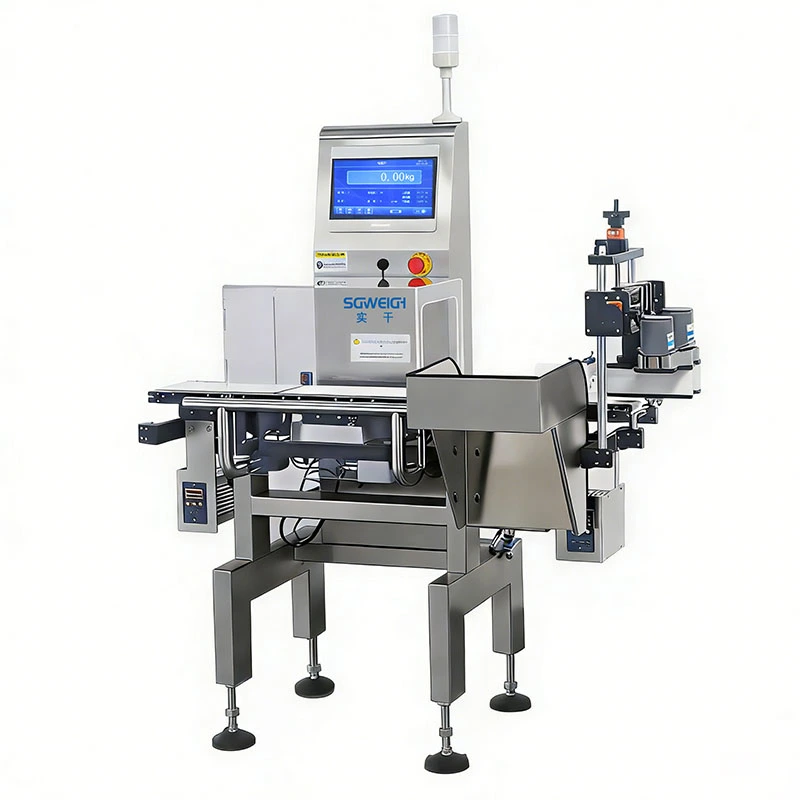

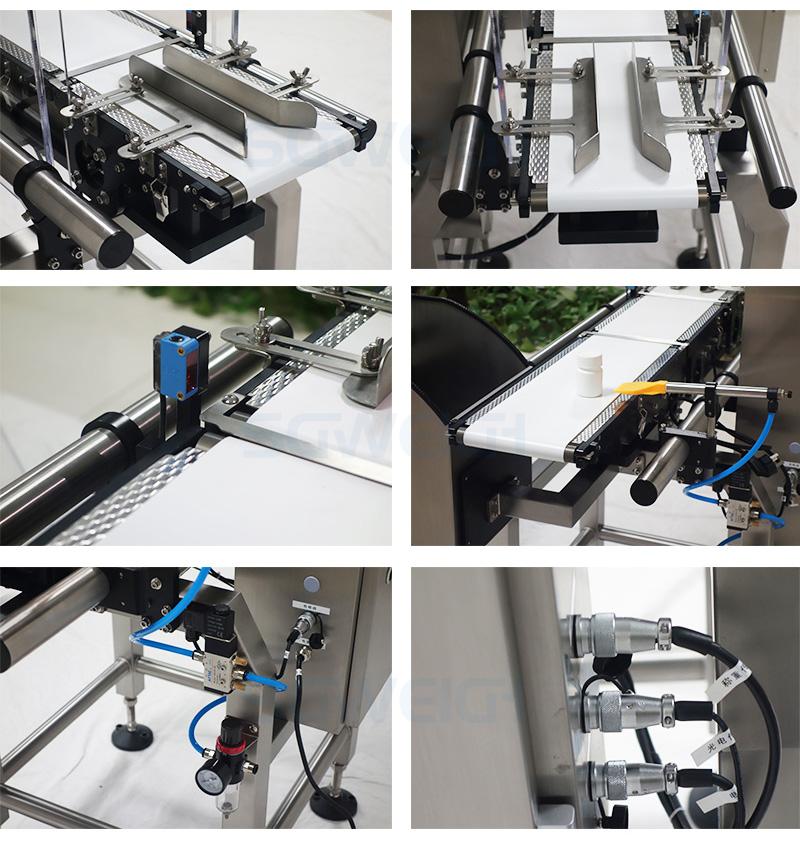

Food bottle inline conveyor weight checker photos

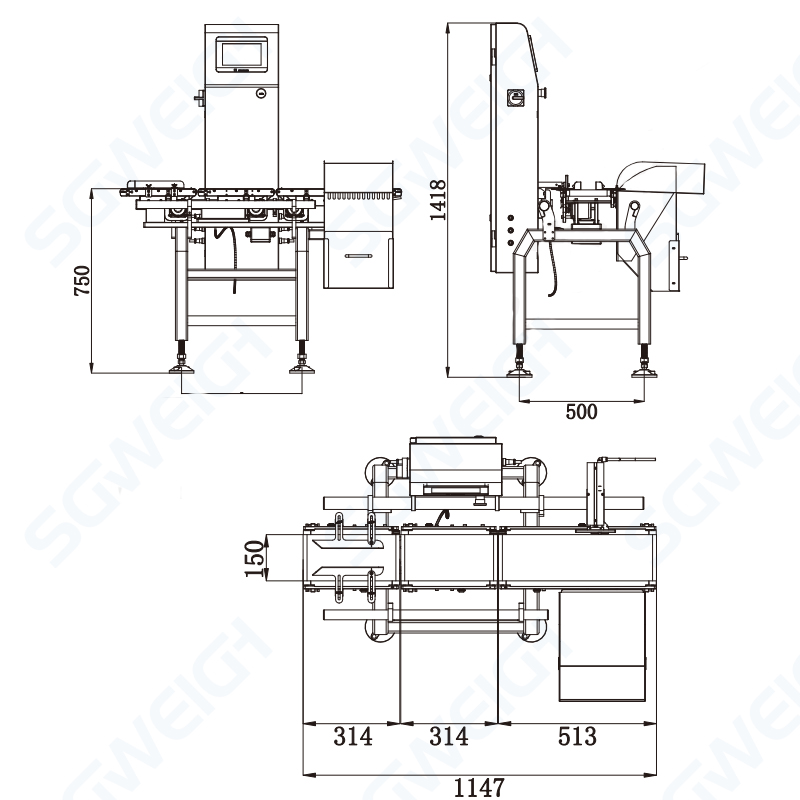

Type SG-150
Weighing Range 3-500g
Limited of product L: 200 W:150 H: 3-200mm
Accuracy ±0.1g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 150 pcs/min
Belt Width 150mm
Machine Weight 80kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
Most of our high speed checkweigher for food cans are custom-made to meet specific project requirements.
If possible, please provide us with more details about your project, such as materials, weight range, speed, dimensions, etc.
It's best to contact us in advance before ordering.
1. High-Speed Precision Weighing: high speed checkweigher for food cans utilize high-sensitivity load cells, providing fast and accurate weight readings even on high-speed conveyor belts. They can weigh hundreds of products per minute while minimizing errors.

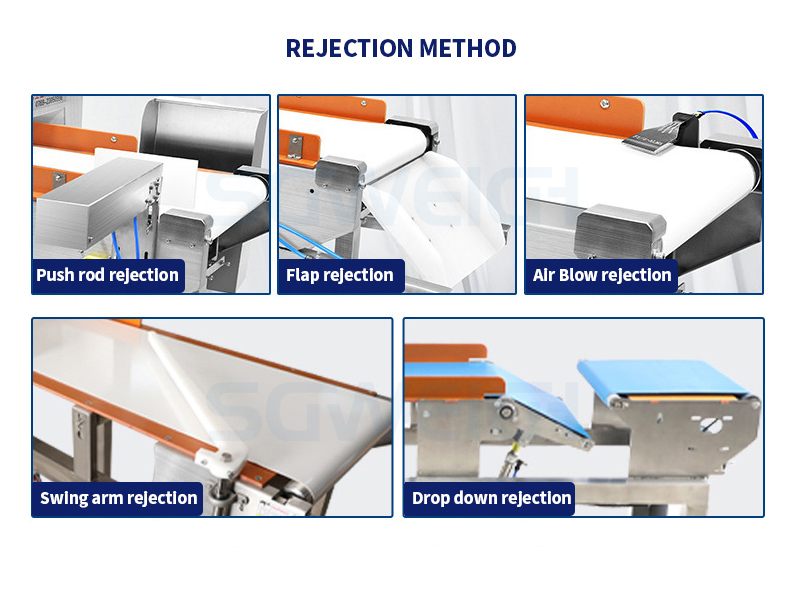

2. Automatic Rejection System: Products that do not meet preset weight limits are automatically rejected from the production line via air jets, pushers, or pull-down conveyors. This ensures that only compliant products continue to be fed onto the production line.
3. Real-Time Data Monitoring and Reporting: Advanced models feature an intuitive touchscreen HMI and built-in software that provides real-time weight tracking, batch control, production statistics, and error alerts for better decision-making.
4. Modular and Scalable Design: Checkweighers are available in various sizes and configurations to seamlessly integrate into both small and large production lines, adapting to different product types and industries.
5. GMP and Food-Grade Compliance: With a stainless steel and hygienic construction, checkweighers meet global food safety and pharmaceutical standards such as GMP, FDA, and CE, making them suitable for sensitive environments.
6. Variable weight handling: Adjustable parameters enable checkweighers to handle products of different sizes, shapes, and weights simultaneously, thereby improving overall productivity and flexibility.

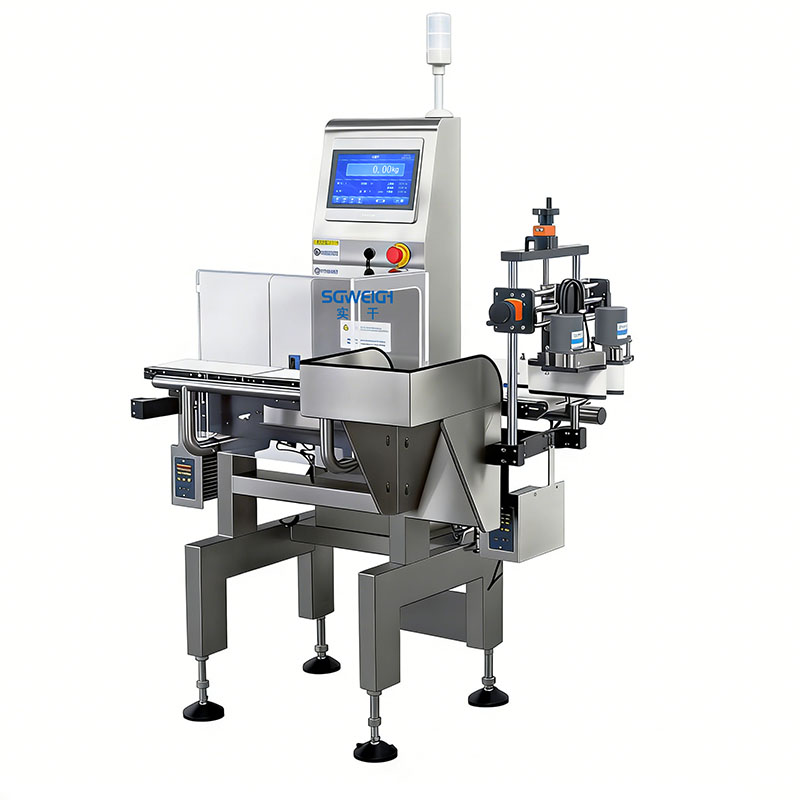

High Speed Checkweigher Machine for Food Canning Production Lines Weight Checker
High speed checkweigher for food cans is suitable for various industries: food, daily chemicals, aquatic products, poultry, toys, beverages, chemicals, electronics, hardware accessories, etc.
High Speed Checkweigher Machine for Food Canning Production Lines Weight Checker
Packaging:
1. Outer Packaging: Standard export wooden crates
2. Inner Packaging: Products are carefully wrapped with stretch film, and the corners are secured with hardwood boards and strong bandages.
3. Inspection Team: Professional personnel will inspect and sort your shipment.
In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc.
3. One year warranty and lifelong maintenance
