High-Precision Metal Detector for Capsule and Tablet Inspection Metal Checker
This high-precision metal detector for capsule and tablet ensures unmatched sensitivity to ferrous, non-ferrous, and stainless-steel contaminants, safeguarding your brand from costly recalls and compliance risks. Designed to handle capsules, tablets, and gel products with speed and accuracy, capsule and tablet inspection metal detector seamlessly integrates into existing tablet press or capsule filling machines. With its compact footprint, high throughput capacity, and FDA-compliant construction, this system delivers reliable inspection performance that meets the rigorous demands of modern pharmaceutical manufacturing. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

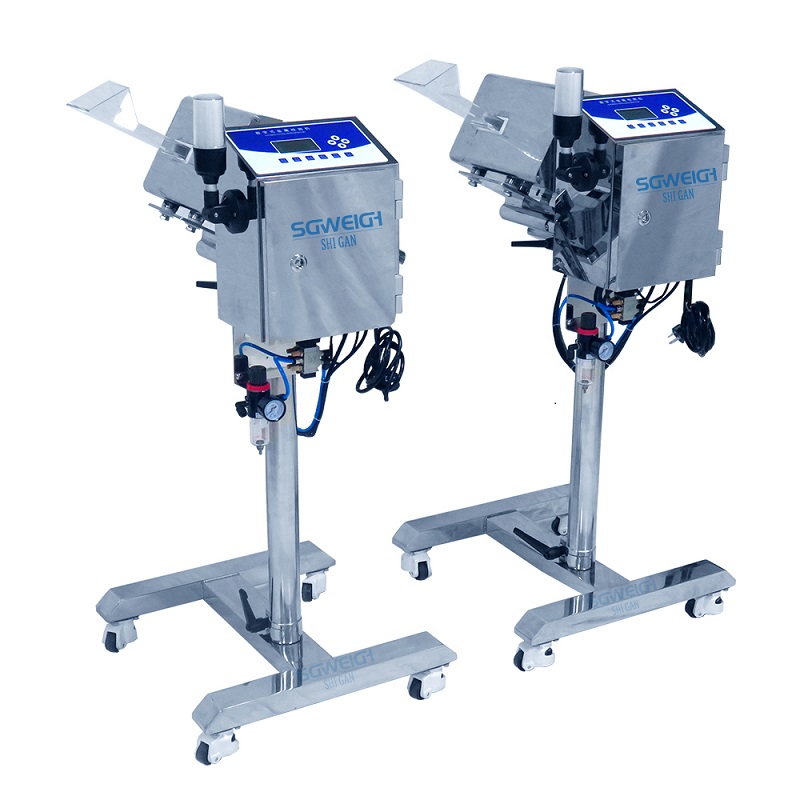

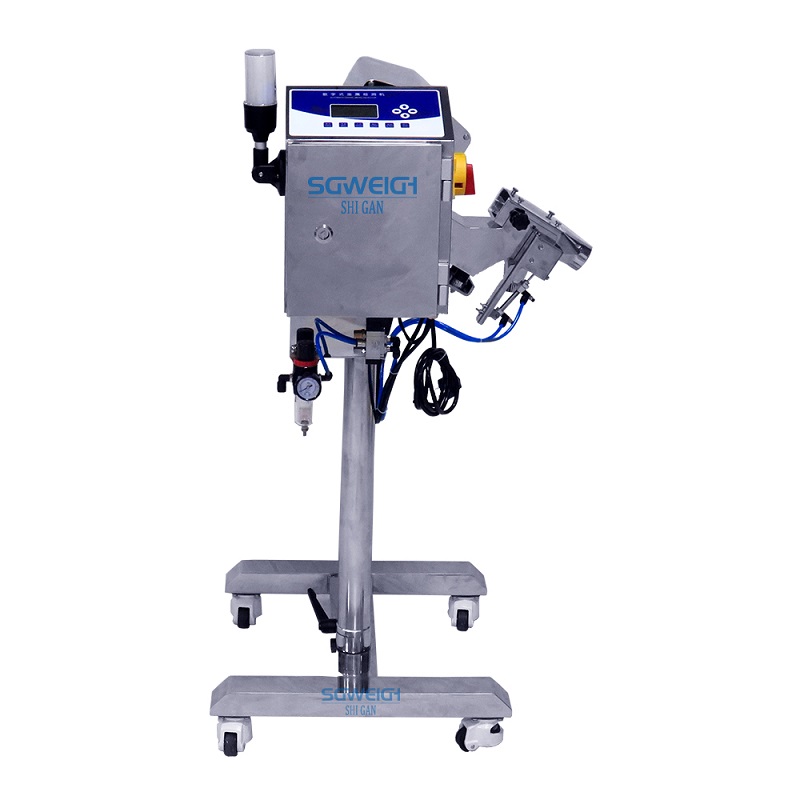

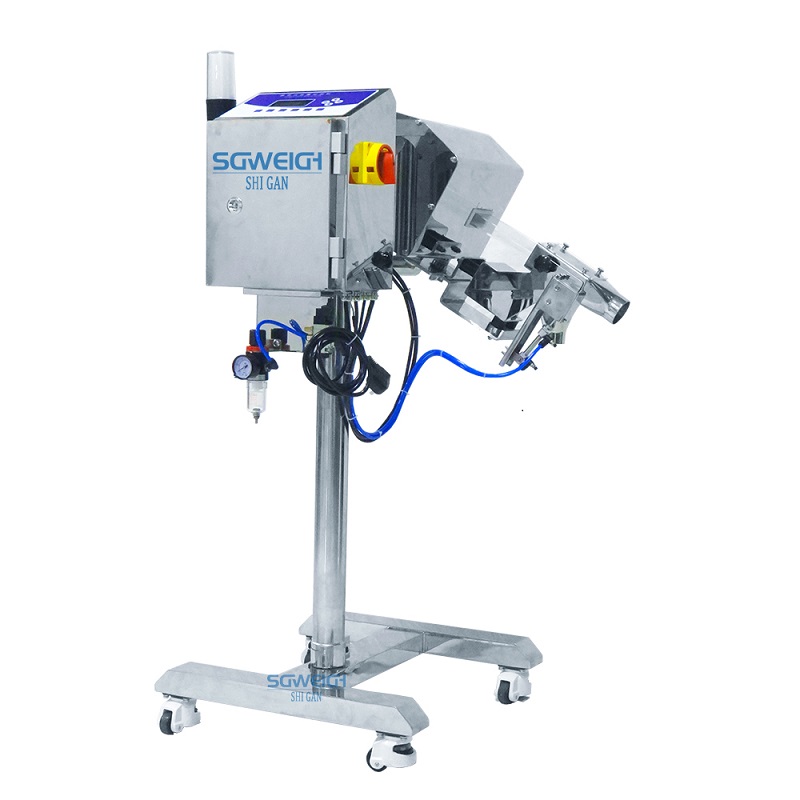

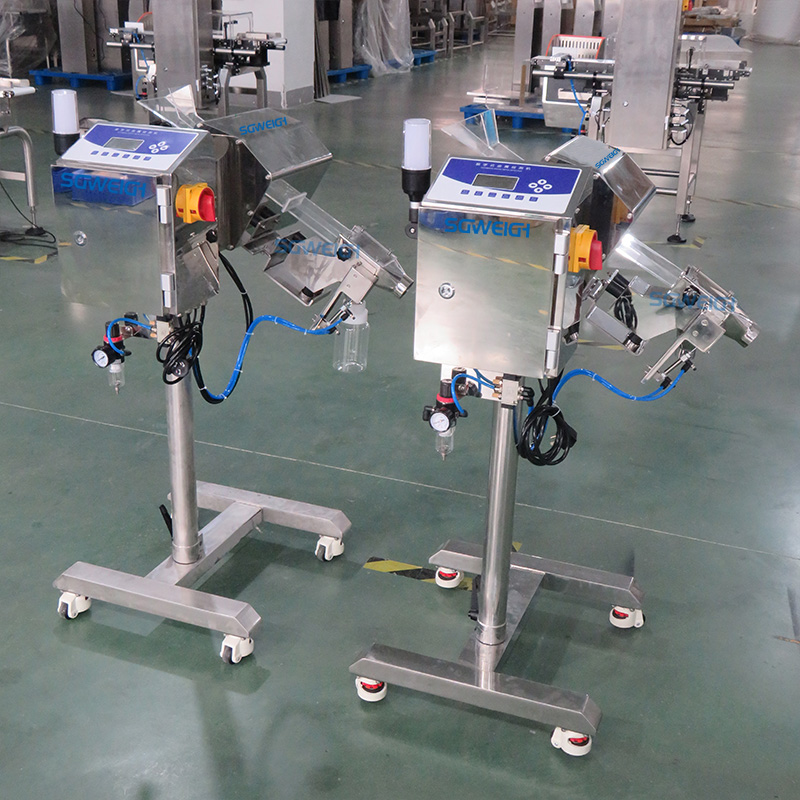

High-precision metal detector for capsule and tablet pictures
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
1. This high-precision metal detector for capsule and tablet is used to inspect tablets and capsules for metal impurities after the tableting and dust removal processes. It can detect all metal impurities, including ferrous metals (Fe), non-ferrous metals (copper, aluminum, etc.), and stainless steel.
2. LCD touchscreen control, user-friendly interface, and multi-language support.
3. Multiple detection frequencies are available, allowing you to choose the right frequency for each product.
4. With a self-learning function, the metal detector automatically collects product information and recommends appropriate detection parameters for each product.
5. Advanced DSP technology significantly improves detection performance. A leading genetic algorithm effectively suppresses product signals for reliable sensitivity.
6. High-precision metal detector for capsule and tablet can store data for approximately 100 products, making it suitable for inspecting production lines with multiple products.

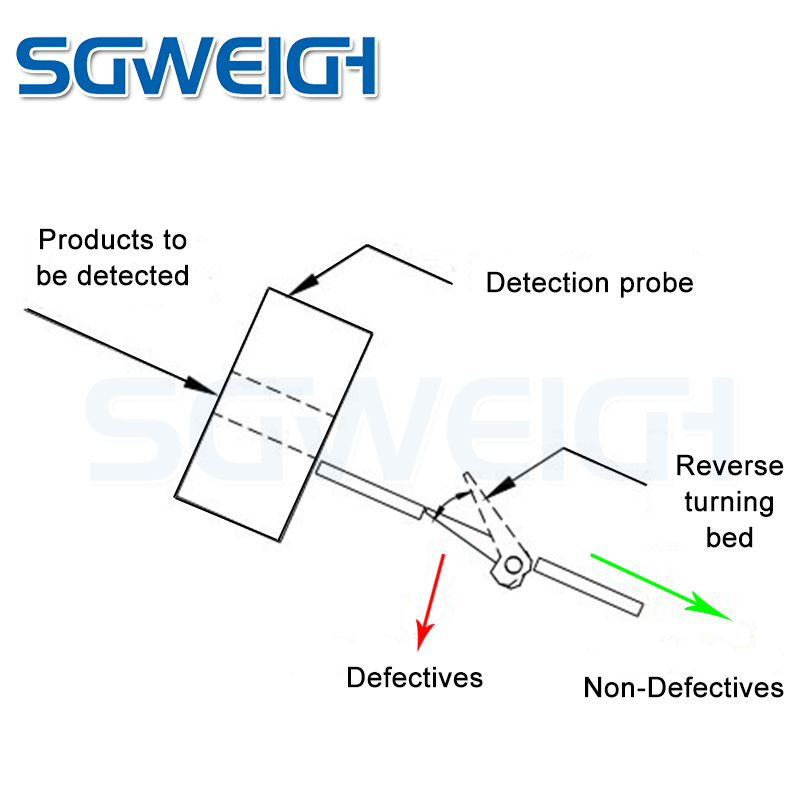

7. Equipped with an automatic tapping rejection system (controlled by a pneumatic solenoid valve), unqualified products are automatically rejected.
High-Precision Metal Detector for Capsule and Tablet Inspection Metal Checker
Capsule and tablet inspection metal detectors can be used in the pharmaceutical industry to detect metal impurities (ferrous, non-ferrous, stainless steel, etc.) in tablets, pills, and capsules.
We accept various customizations and logos on all our capsule and tablet metal detectors.
If you are interested, please contact us.
If you would like to learn more about related products, there are more surprises waiting for you!
High-Precision Metal Detector for Capsule and Tablet Inspection Metal Checker

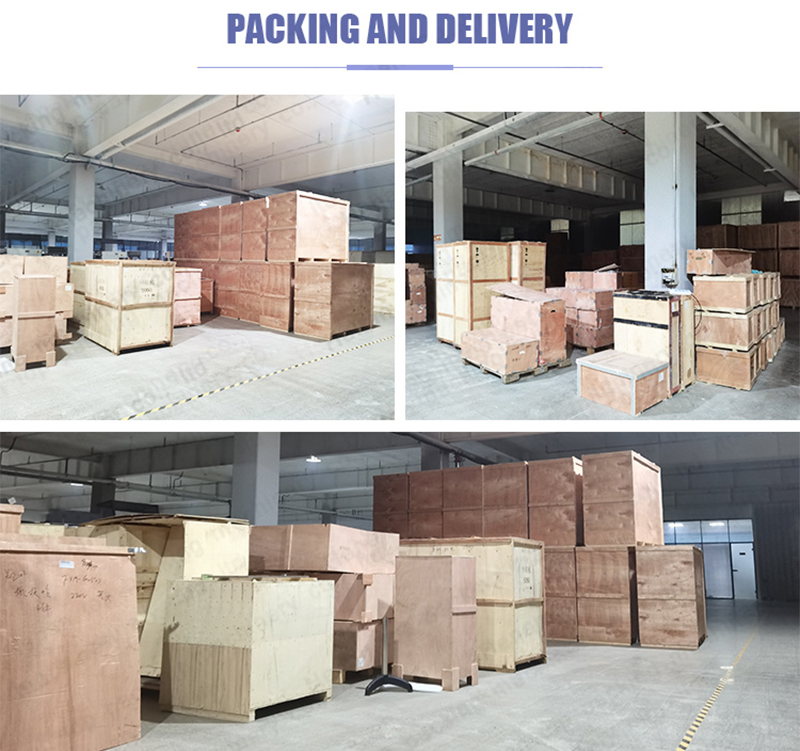

Packaging:
1: Lubricate the drive unit
2: Divide the machine into modules
3: Wrap the modules with plastic film
4: Pack the modules into cartons
5: Mark the boxes
If you have any special requirements, we will package them according to your specifications.
1. We will deliver the machines and provide a load list on time to ensure that you can quickly obtain the machines
2. We often ask for feedback and provide assistance to customers whose machines have been used in their factories for a period of time.
3. We offer a one-year warranty
4. Trained and experienced employees will answer all your inquiries in English and Chinese
5.12 months warranty and lifetime technical support.
6. Your business relationship with us will be kept confidential to any third party.
7. Provide good after-sales service. If you have any questions, please contact us.
