All-in-One Checkweigher and Metal Detection Machine with High-Precision
This all-in-one checkweigher and metal detection machine integrates checkweighing and metal detection functions into a compact design, simplifying the inspection process, supporting high-speed production, requiring minimal maintenance, and optimizing valuable factory space. Designed specifically for continuous production environments, the high-precision checkweigher with metal detector can verify the weight of each product in real time, identify ferrous, non-ferrous, and stainless steel contaminants, and immediately reject defective products. You are welcome to contact us at any time for quotation.

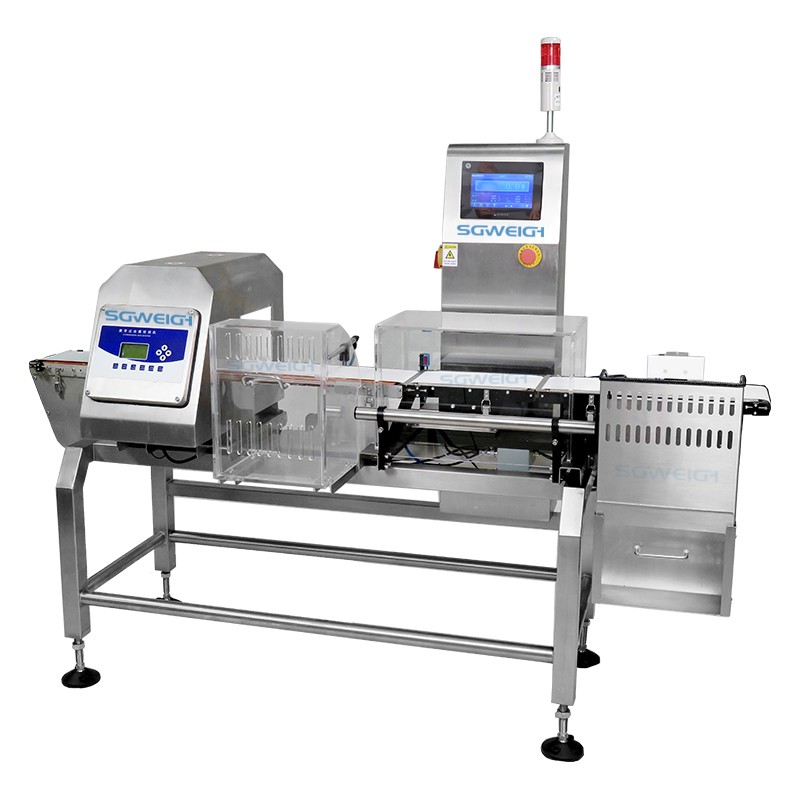

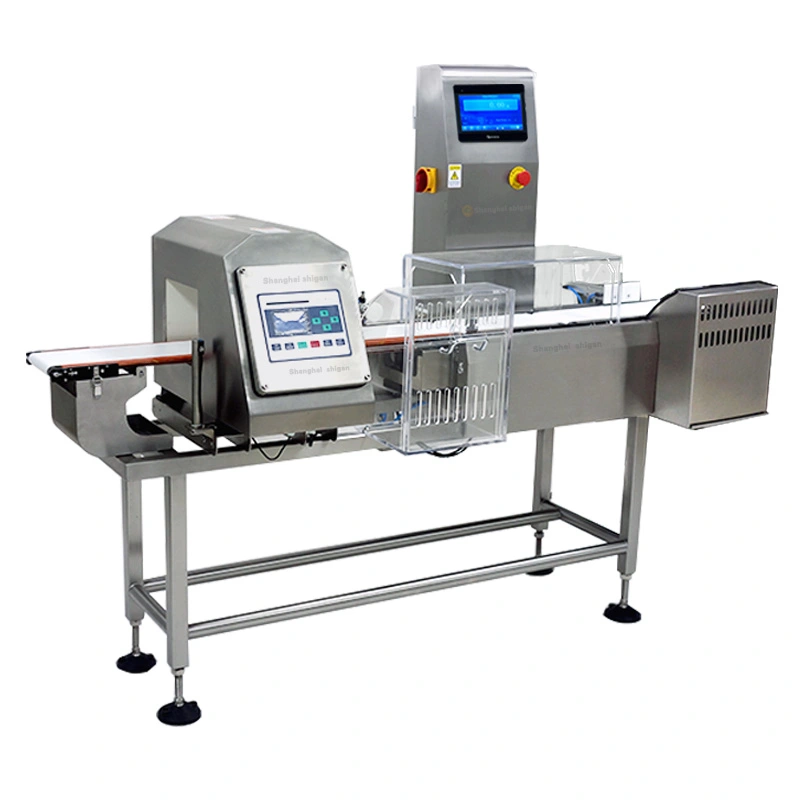

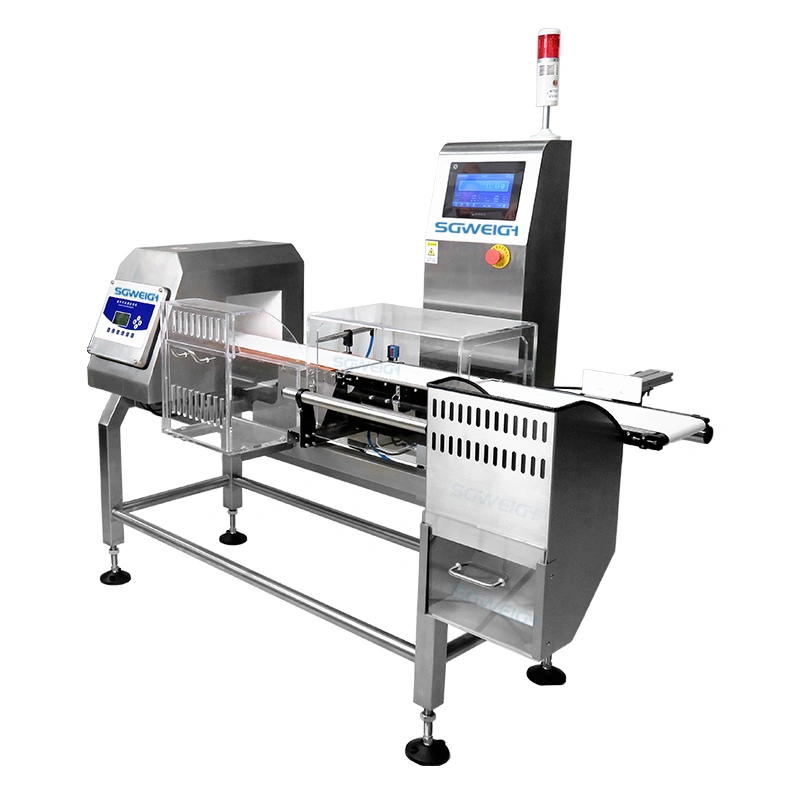

All-in-one checkweigher and metal detection machine pictures
Detection Method: Electromagnetic Induction / Digital Load Cell
Dimensions: 330×150mm
Accuracy: FE0.8mm SUS2.0mm
Sorting Accuracy: ±0.5g
Weighing Range: 5g-900g
Passage Height: 110mm
Passage Width: 280mm
Packaging Length: ≤300mm
Display Graduation Value: 0.1g 0.2g 0.5g 1g
Number of Sorting Segments: 3 segments
Sorting Capacity: 60 times/minute
Conveyor Belt Speed: 10-45 m/min
Ground Clearance: 735mm-800mm
Operating Temperature: 0-40℃
Weight: Approx. 160kg

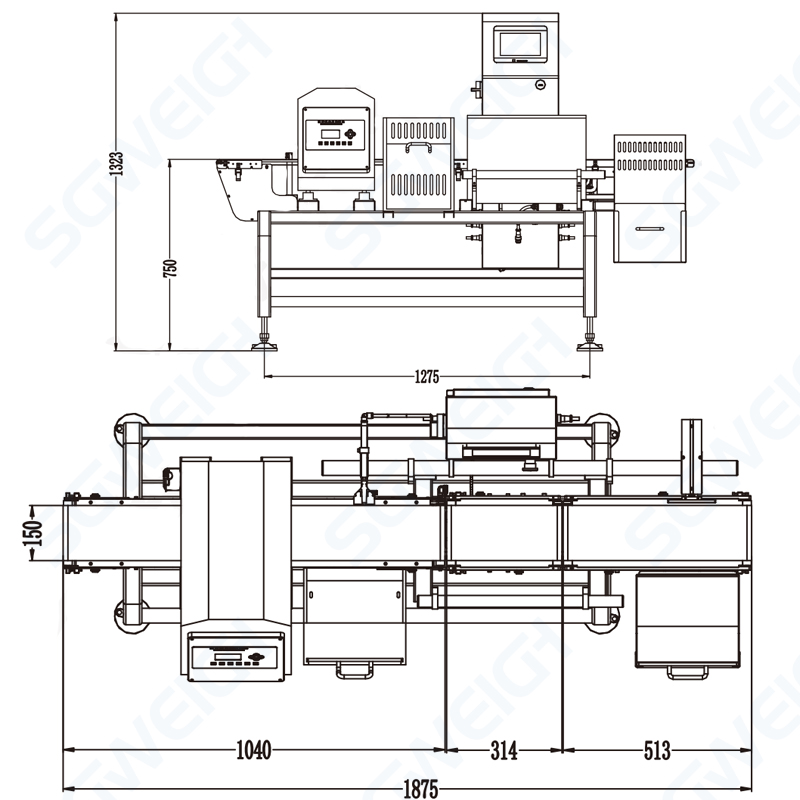

Dimensions: 1900mm×700mm×1120mm (L×W×H)

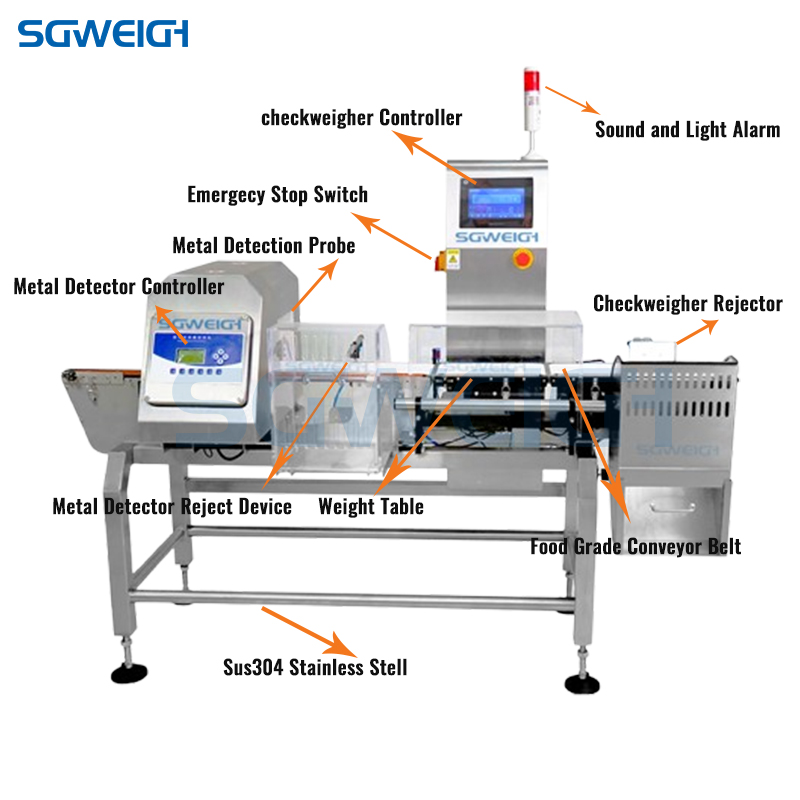

1. Integrated Design: The all-in-one checkweigher and metal detection machine combines weighing and metal detection functions into one unit, with a small footprint, compact structure, and easy installation and maintenance.
2. High-Precision Weighing: Utilizing high-precision weighing sensors and advanced weighing control algorithms, it ensures weighing accuracy down to the 0.1-gram level, meeting the precise requirements for materials.
3. High-Efficiency Metal Detection: Employing advanced metal detection technology, it can quickly and accurately detect metal impurities in materials, ensuring product quality.
4. Flexible Adaptability: Different weighing and metal detection solutions can be customized according to user needs to meet the production requirements of different materials and production lines.
5. Intelligent Control: Employing an advanced control system, it achieves automated control of weighing and metal detection, improving production efficiency and reducing manual intervention.
6. The all-in-one checkweigher and metal detection machine features high weighing accuracy, fast detection speed, and strong adaptability, effectively improving enterprise production efficiency and product quality, meeting the needs of modern industrial production.

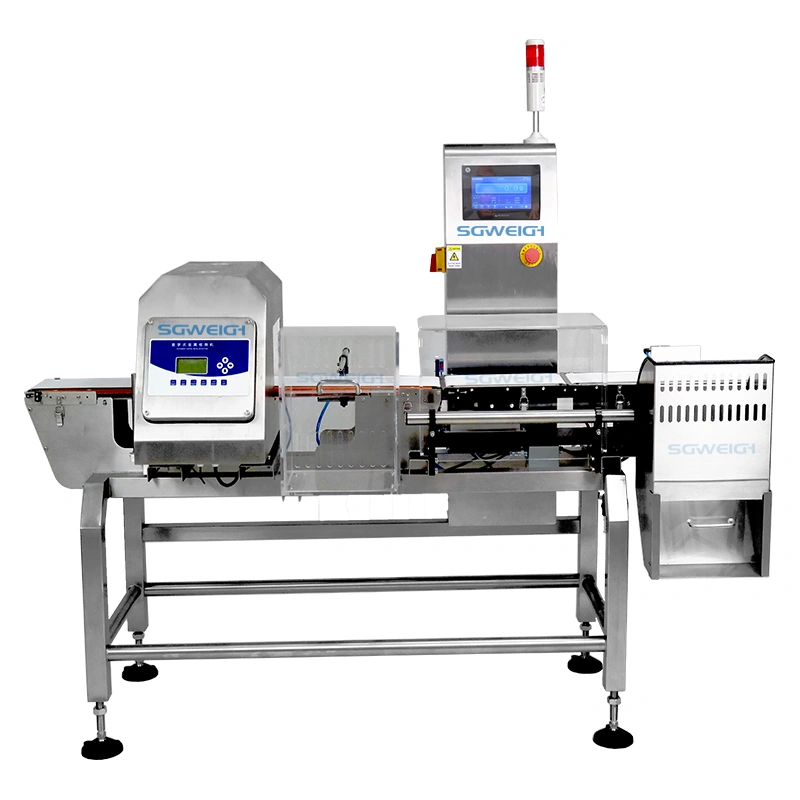

All-in-One Checkweigher and Metal Detection Machine with High-Precision
This all-in-one checkweigher and metal detection machine can detect ferrous, non-ferrous metal, and stainless steel contaminants, while simultaneously verifying product weight in real time, making it an ideal choice for the food, pharmaceutical, chemical, and cosmetic industries.
Our professional engineers will design the most suitable high precision checkweigher with metal detector solution for your production line, meeting the diverse needs of various complex production lines. In practical applications, we continuously optimize and improve our checkweigher with metal detector solutions based on production line operation and customer feedback to ensure they are always in optimal working condition.

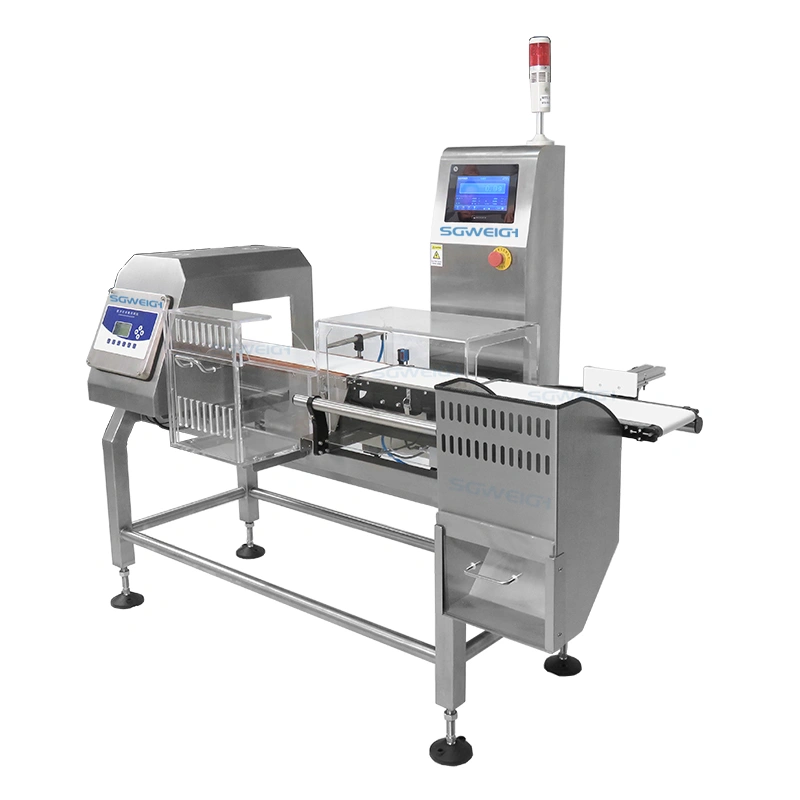

All-in-One Checkweigher and Metal Detection Machine with High-Precision
Inner packaging uses plastic wrap, while outer packaging uses a more robust wooden crate.
Our standard packaging process:
1) Dust removal and cleaning
2) Lubrication of drive components
3) Disassembling the machine into modules
4) Wrapping modules with plastic film
5) Packing modules into plywood boxes
6) Marking the boxes with shipping marks
If there are any special requirements, we will pack accordingly.
Q1: What is machine warranty?
Machine warranty for one year. During the warranty period, any non -vulnerable part of the machine is damaged. We will replace it for you for free. After the warranty date is issued by the machine, we receive the bill of lading.
Q2: I have never used this online checkweigher machine. How can I control it?
1. Each machine has related operation descriptions.
2. Our engineers can operate through video demonstrations.
3. We can send engineers to on -site teaching. Or welcome you FAT before installation.
Q3: Will you show us the following details when inquiry?
We can.
1. Product size (description/photo/sample can be)
2. accuracy
3. Speed
4. Other requirements
